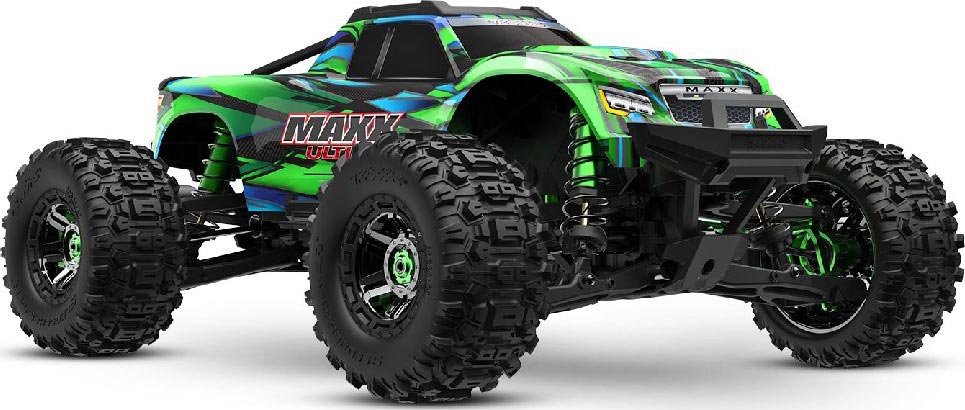

Maxx Ultimate VXL-4S 4x4 RTR Green
RESOURCES
Manual/Diagram
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... ARR R/C Electric 4WD Monster Truck
But only from... TRAXXAS
All items from... TRAXXAS
But only from... TRAXXAS
All items from... TRAXXAS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
22.50 in
Length:
15.95 in
Width:
9.12 in
Height:
10.20 lbs
Weight:
13.85 in
Wheelbase:
4WD Shaft Driven
Drivetrain:
Velineon 540XL
Brushless Motor Included:
Velineon VXL-4s
ESC Included:
186 x 48 x 43 mm
Battery Compartment:
FEATURES
What's in the Box:
- Maxx Ultimate with Velineon 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- TQi 2.4 GHz radio system with factory-installed wireless module
- Quick Start Guide
- High quality maintenance tools
Requires:
- LiPo Battery: Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger: LiPo Balance Charger with iD®
- Alkaline Batteries: Four AA alkaline batteries for the transmitter.
VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sinks
- 10 gauge silicone wire
- Integrated protection circuits
- LED status lights
- Waterproof
VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sinks
- 10 gauge silicone wire
- Integrated protection circuits
- LED status lights
- Waterproof
Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
Traxxas Stability Management
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi 2.4 GHz 2-Channel Radio System with Wireless Module
- Factory-installed telemetry through VXL-4s ESC
- 5-channel micro receiver (TRX6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Driveline
- Full-time shaft-driven 4-wheel drive
- Steel constant-velocity driveshafts
- Torque-Biasing Center Drive with aluminum housing

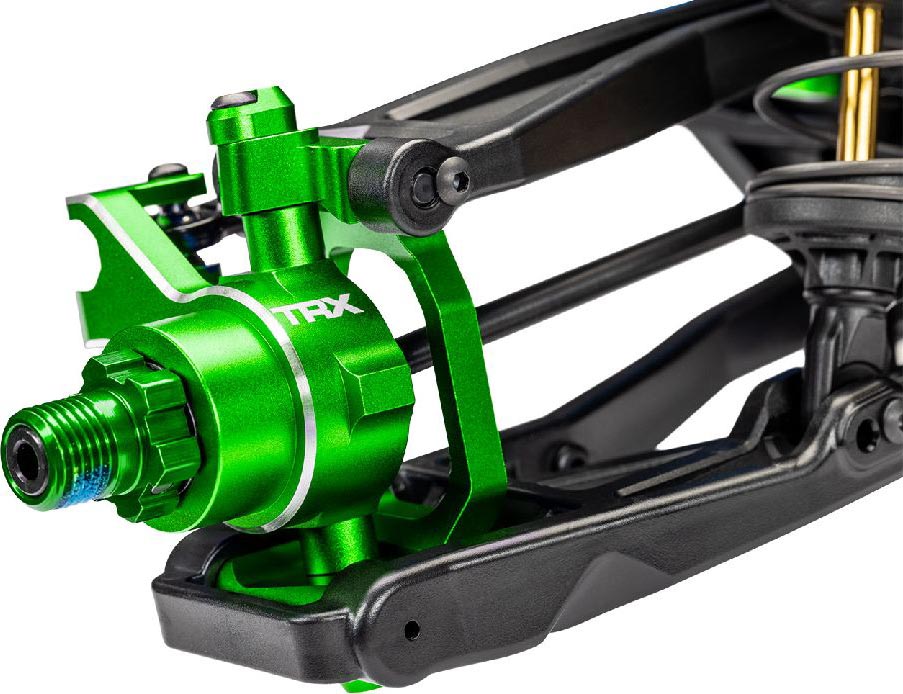

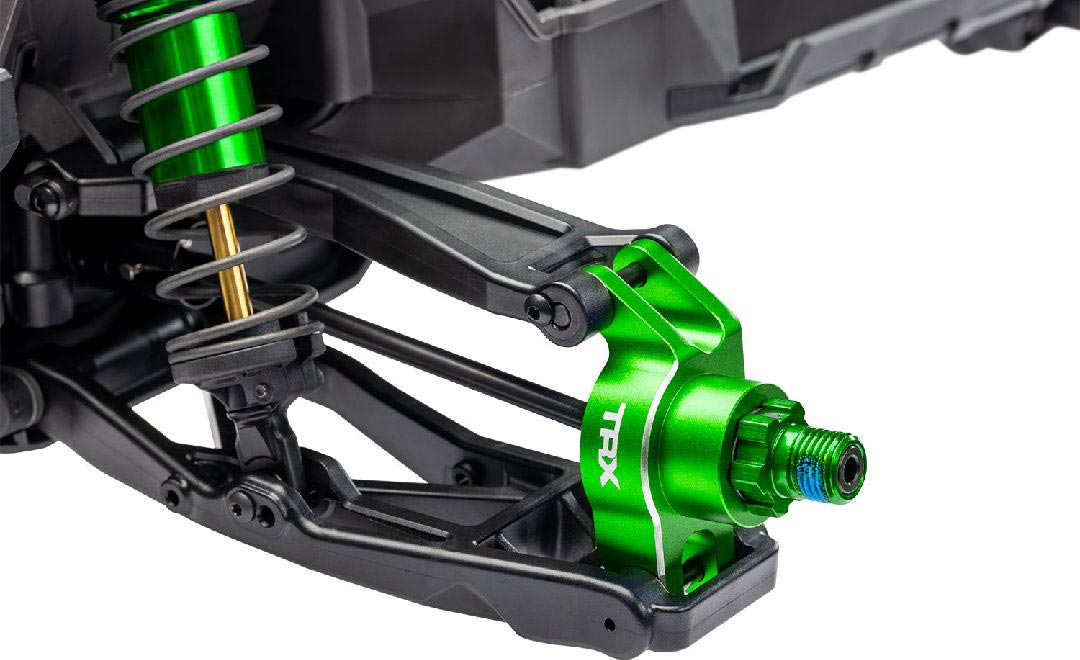

- 17 mm aluminum axle adapters & wheel nuts
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Heavy-duty Cush Drive with steel spur gear
- Splined aluminum center driveshaft

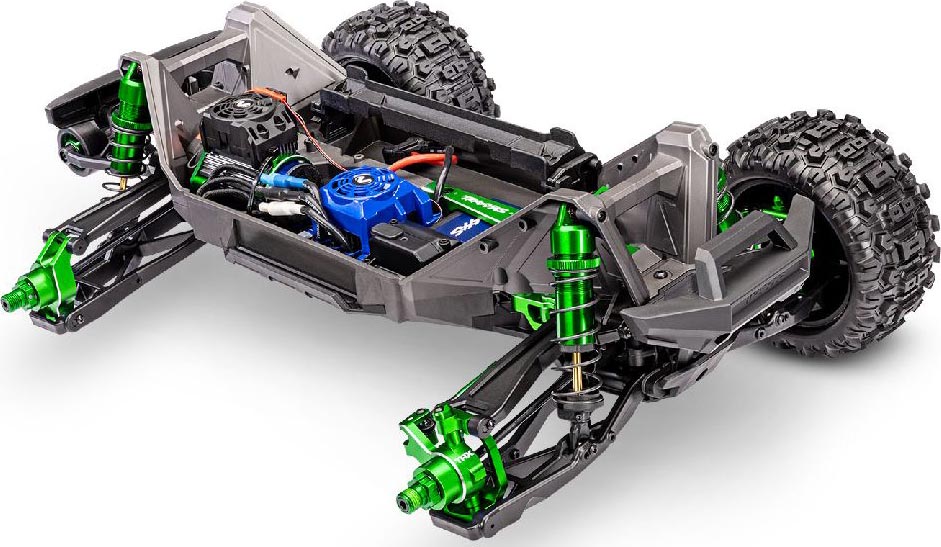

Easy Battery Access
- Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems

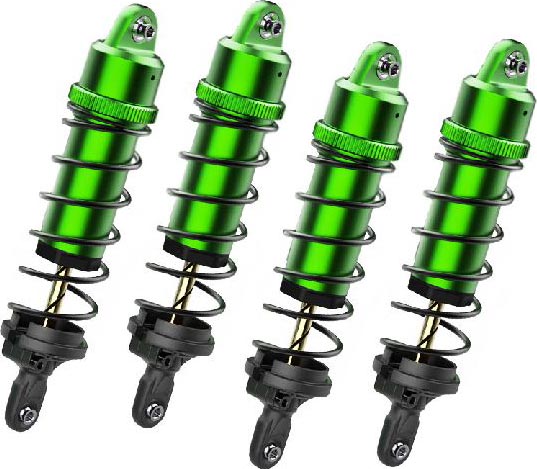

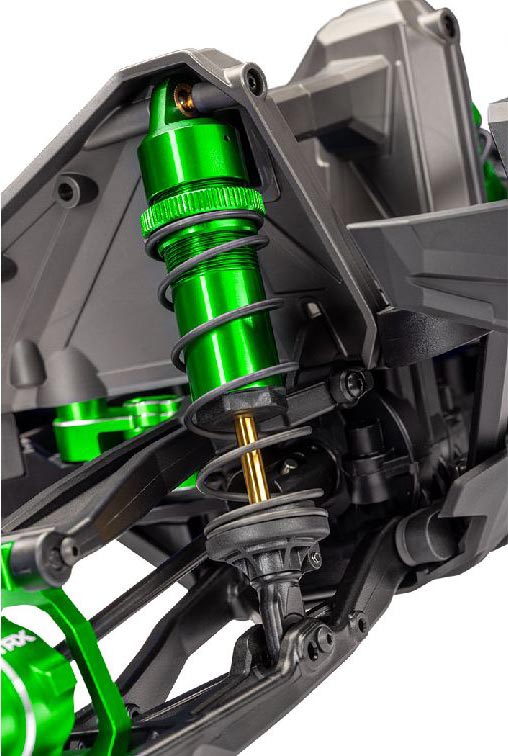

GT-Maxx Shocks
- Threaded aluminum body
- Aluminum shock caps with pivot balls
- Ultra-smooth TiN-coated damper shafts
- Adjustable aluminum upper spring retainer
- Lower seal cartridge with dual X-rings
- Lower spring perches bolted on

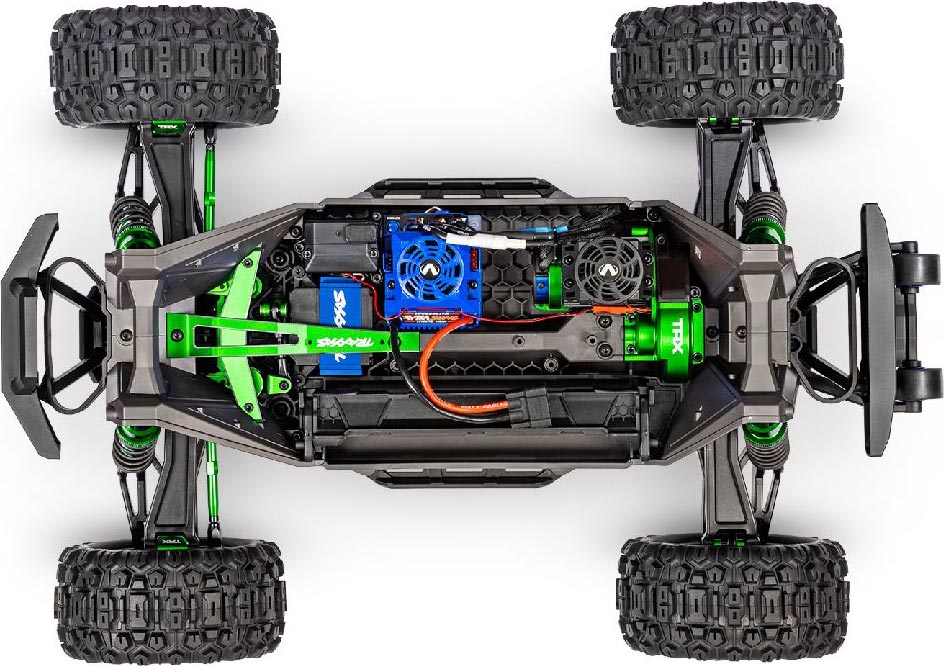

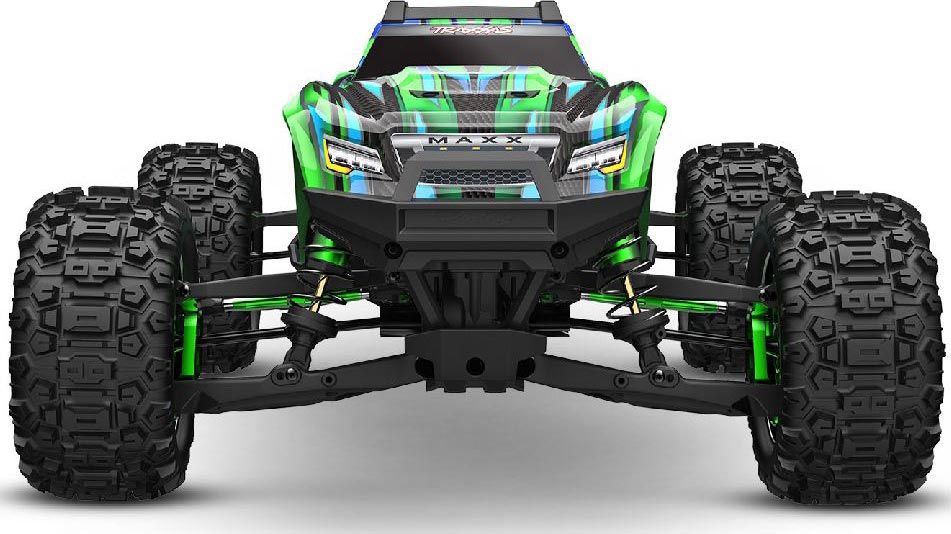

click image to enlarge
