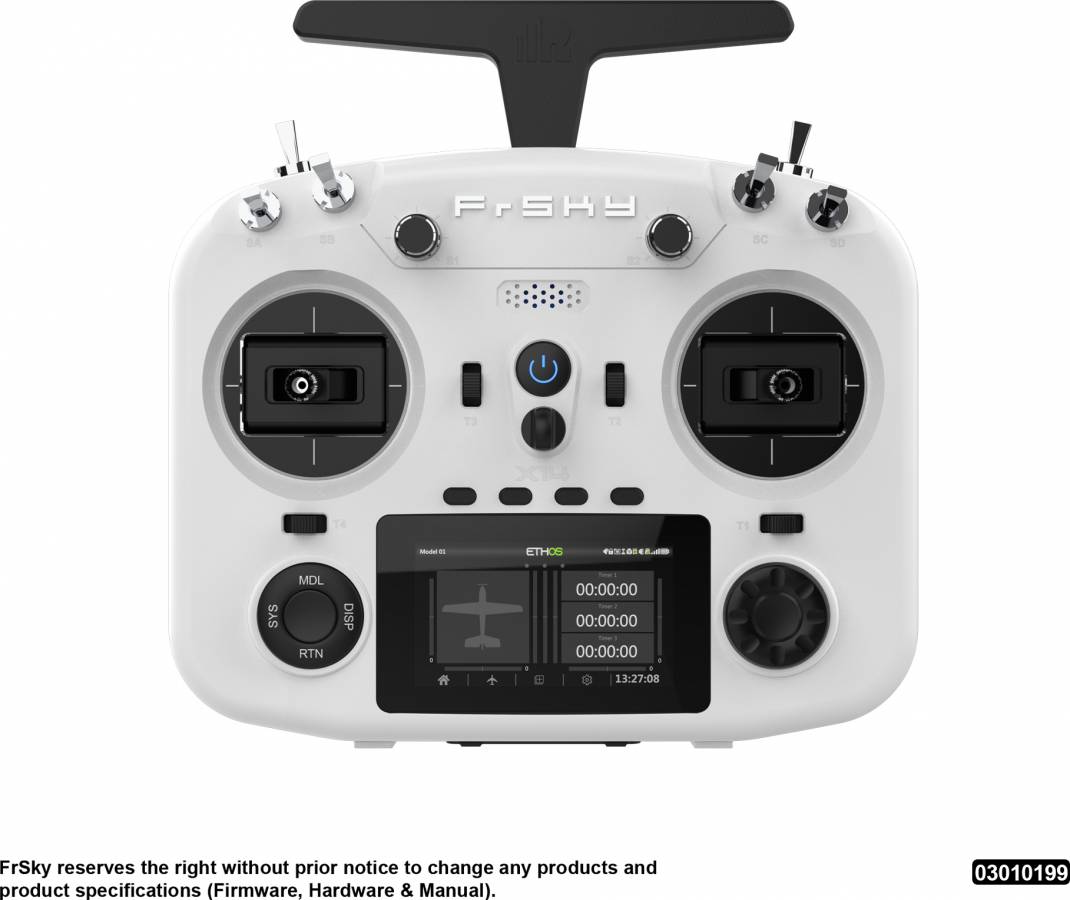

TWIN X14 White w/Battery
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... 9-Ch & Up Spread Spectrum Aircraft Radio Systems
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
24 Channels
Channels:
TW-ISRM
Modulation:
2.4 GHz
Band:
128mb
Model Memory:
FEATURES
- Ergonomic and Compact Lightweight Design with Comfortable Rounded Hand Grips
- Easy-to-reach Top Switches and Sliders
- 2.95” 640×360 Resolution Color TFT Display Screen
- 4 Trims & 4 Quick-Mode Custom Buttons (Front) & 2 Momentary Buttons (Rear)
- Integrate Flash Storage but keep the TF Card Slot for Storage Extension
- High-Precision Hall-Sensor Gimbals with a Metal Panel
- Lite Type External Module Bay
- Haptic Vibration Alerts and Voice Speech Outputs
- Supports Recharge System for 2S Li Battery (USB Type-C Interface)
- High-Speed PARA Wireless Training System
- ETHOS Operating System
- CNC Aluminum Backshell Stand Holder (Optional)
- Dual 2.4G Band TW-ISRM Internal RF Module
- Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
- TW Mode
- – Highly resilient RF module providing dual 2.4G signals working simultaneously
- – Long-range control (Tens of kilometers, range varies based on the RF Power settings.)
- – Low-latency (＜4ms) supporting full telemetry
- Less Latency Capability with More Range and Higher Reliability at a Faster Data Rate
Specifications:
- Weight: 610g (Battery Excl.)
- Operating System: ETHOS
- Internal RF Module: TW-ISRM
- 2.95” Color TFT Display Screen Resolution: 640×360
- Number of Channels: Up to 24 Channels
- Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
- Operating Current: 330mA@7.4V (typ.)
- Operating Temperature: -10? ~ 60? (14?~140?)
- Built-in 128MB Flash Storage
- Battery Bay Size: 69.5×38.5×20mm (L×W×H)
- Data Transmission & Charging Interface: USB Type-C
- USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
- Compatibility: ACCST D16 / ACCESS / TW modes
- Dimension: 192×193×72mm (L×W×H)
PRODUCT RESOURCES
03010199B
