TAM58616

1/10 Volkswagen Amarok (CC-01)

Product Info | Optional Items
RESOURCES

Optional Items (4)
TAMIYA

TAM58616
1/10 Volkswagen Amarok (CC-01)
By TAMIYA
$234.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail Truck Kit
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$234.99
Warehouse ?
Stock availability for pick up
0
$234.99
Warehouse ?
0
$234.99
Store - Charlottetown ?
0
$234.99
Store - Edmonton ?
0
$234.99
Store - Mississauga ?
0
$234.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

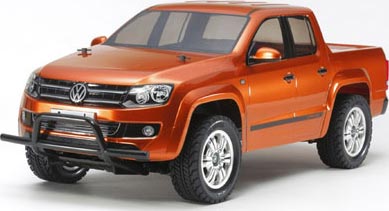

        This is the 1/10 scale electric powered, radio controlled, 4WD
Volkswagen Amarok Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 size brushed electric motor
Electronic Speed Control: TBLE-02S
Shocks: Oil-filled, CVA black plastic construction
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear
Transmission: Single speed
Tires: Semi-pneumatic radial pattern, rubber construction
Wheels: One-piece
Body: Polycarbonate
Bumper: Front, plastic construction, black in color
Suspension: Front, independent
Rear, four link solid axle
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya VW Amarok kit with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, shock oil, 16 tooth pinion gear,
spur gear, instructions
_
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 7.2V 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 18.1" (460mm)
Width: 7.25" (184mm)
Height: 5" (127mm)

COMMENTS: To paint body to match color scheme on box, order the following
Tamiya colors;
PS-5 Black PS-31 Smoke
PS-14 Copper TS-29 Semi Gloss Black
X-34 Metallic Brown

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
