TAM58414

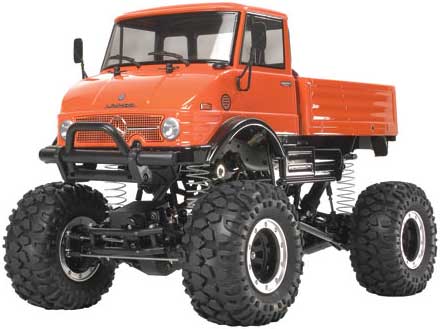

1/10 Mercedes-Benz Unimog 406

TAMIYA

TAM58414
1/10 Mercedes-Benz Unimog 406
By TAMIYA
$514.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$514.99
Warehouse ?
StockStock availability for pick up
0
$514.99
Warehouse ?
0
$514.99
Store - Charlottetown ?
0
$514.99
Store - Edmonton ?
0
$514.99
Store - Mississauga ?
0
$514.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Pinion Gear Set 20/21T
$9.99

RC Body Set Toyota FJ Cruiser
$78.99

Body Pin Set
$4.99
Bevel Gear CR01 Toyota Land Cr
$25.99

3mm Grub Screw 44002
$5.99

TG10 Front Wheel Axle
$12.99

Heat Resist Dbl Side Tape
$7.99
FEATURES
  • The Mercedes-Benz Unimog's body is made from lightweight polycarbonate material.
  • CR-01 chassis features a heavy-duty ladder frame with strong lightweight pressed aluminum channels and cross channels.
  • 4 link coil suspension provides the flexibility needed to conquer difficult rocky terrain.
  • Center gearbox features planetary gears with a compact design enabling the battery to be mounted lower for a better center of gravity.
  • Newly designed 3-piece beadlock wheels mounted with massive 125mm diameter and 56mm wide rock crawler tires are ready for any terrain.
  • Powered by a 540 motor.
  • Can be fitted with Yellow (Front) and Red (Rear) TLU-01 LED Lights (ITEM 53909)
  • The Unimog is compatible with a wide range of Option Parts
  • Full Ball Bearings
  • Planetary gearbox comes with20T pinion gear for a 40.5:1 gear ratio
  • Requires ESC and 2ch Radio w/1 servo
  • Requires Paint and Assembly
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the electric powered, radio controlled, 1/10 scale
Tamiya Mercedes Benz Unimog 406 Off-Road Rock Crawler Truck Kit.

FEATURES: Chassis: CR-01 dedicated crawler chassis with heavy duty ladder frame
pressed aluminum channels and resin cross members
Drive: Four wheel shaft drive
Motor: 540 size
Ball Bearings: Full set included
Shocks: Oil-filled, compressed via pushrods and rocker arms
Gearbox: Planetary type with 20 tooth pinion gear for a 40.5:1 gear
ratio, separately available 16 - 25 tooth pinion gears for gear
ratios ranging from 50.6:1 - 32.4:1
Transmission: Single speed
Tires: Rock crawler type 4.9" (125mm) diameter, 2.2" (56mm) wide
with foam inserts
Wheels: Plastic 3-piece beadlock 2.8" (71mm) diameter, 1.4" (35.8mm)
wide, black in color
Body: Lightweight clear polycarbonate
Bumper: High impact front plastic
Suspension: Four link coil spring front and rear
Differential: Planetary gear
Steering: Adjustable, direct link with servo saver

INCLUDES: Tamiya Mercedes Benz Unimog 406 Crawler chassis with 20 tooth pinion
gear, oil-filled shocks, 540 motor, 3-piece beadlock wheels,
body, tires, decal sheet, spur gear, instructions

REQUIRES: Radio: 2-Channel with 1 Servo
Electronic Speed Control: Stock 540 motor compatible
Radio Batteries: (8) AA size
Battery: 6-cell stick pack w/standard Tamiya connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Paint, building and track equipment

SPECS: VEHICLE-
Length: 17" (435mm)
Width: 10.43" (265mm)
Height: 10" (254mm)
Weight: 5.66lbs (2567g) approx.
Wheelbase: 11.34" (288mm)
Gear Ratio: 40.5:1 with supplied 20T pinion gear
BODY-
Length: 14.8" (375mm)
Width: 7.7" (197mm) at rear wheels (widest point)
Height: 5.5" (140mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 8x12mm Link Mounts 2 DTXC1581
2 5x10mm Drive Shaft A 1 DTXC1535
2 5x10mm Drive Shaft B 1 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535
4 5x10mm Rear Uprights 2 DTXC1535
6 5x8mm Planetary Gears 3 DTXC1523
1 10x15mm Planetary Gears 1 DTXC1595

May be fitted with the Tamiya TLU-01 Light Unit (TAMC1394).

To paint body to match color scheme on box, order the following
Tamiya colors;
PS-7 Orange TAMR8607 TS-12 Orange TAMR5012
PS-31 Smoke TAMR8631 PS-5 Black TAMR8605
X-18 Semi Gloss Black TAMR8118

jxs 10/07/08
