Aluminum Spinner 1 1/2"

Product Info | Substitutions

Aluminum Spinner 1 1/2"
$19.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aluminum Spinners
But only from... GREAT PLANES
All items from... GREAT PLANES

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

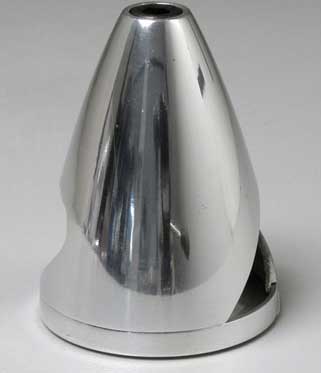

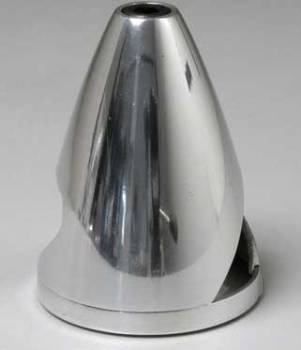

 This is a Two-Blade Aluminum Spinner w/Aluminum Backplate from Great Planes.

FEATURES: Machined For Accuracy, Then Polished To A Gleaming Finish.
Easy To Install, Having A Bolt-On Design, Centers Each Spinner
Perfectly On Its Baseplate.
Spinner Cone Is Recessed To Mate Into the Spinner Backplate. The Rear
Of The Spinner Is Flat, Without An Overhanging Cone.
Includes Black 10-32 Bolt That Holds Spinner Cone to Backplate.
Adapter Kits For Different Engine Sizes Are Available Separately.

INCLUDES: One Aluminum Spinner Cone
One Aluminum Backplate (See Specs For Sizes)
One 10-32 x 1" Mounting Bolt
One Box with Installation Instructions and Safety Tips

REQUIRES: One Spinner Adapter Kit (See COMMENTS)

SPECS: Spinner Backplate Diameter: 1-1/2" (37.8mm)
Spinner Backplate Mounting Ring Thickness: 3/16" (4mm)
Spinner Backplate Hole Diameter: 3/8" (9.5mm)
(The Adapter Kit Will Contain An Aluminum Bushing To Fit The
Crankshaft Size.)
Length From Back Of Backplate To Front Of Cone: 1-15/16" (48.6mm)
Height Of Propeller Slot: 9/16" (14.5mm)
Length Of Propeller Slot: 5/8" (15.5mm)

COMMENTS: Warning: Failure To Follow The Instructions Printed On The Box May
Cause The Propeller To Separate From The Model.
If The Spinner Cone Touches The Propeller At Any Point, Use A File
Or MotoTool To Relieve This Area.
Spinner Adapter Kit To Use Will Be Determined By Engine Crankshaft
Size. Use One Of The Following:
GPMQ4581 - OS Max 20-40 FP, 25-45 FX & SF (")
GPMQ4584 - OS Max 60 FP, 61 FX & SF, SuperTigre 61 (5/16")
GPMQ4585 - OS Max FS 26-52 Surpass (")
GPMQ4588 - OS Max FS 70-120 Surpass, 140 RX (5/16")
GPMQ4589 - OS Max 1.08 FSR (3/8")
GPMQ4590 - SuperTigre S 2500-4500 (10mm)
JAL 4/23/99
