GPMQ4588

Adapter Kit OSFS70S-120/140RX

Product Info
GREAT PLANES

GPMQ4588
Adapter Kit OSFS70S-120/140RX
By GREAT PLANES
$8.99 CAD
Order Quantity:
No Picture Available

More like this... Prop Nuts & Adapters
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$8.99
Warehouse ?
StockStock availability for pick up
0
$8.99
Warehouse ?
0
$8.99
Store - Charlottetown ?
0
$8.99
Store - Edmonton ?
0
$8.99
Store - Mississauga ?
0
$8.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES
                 This is a Spinner Adapter Kit by Great Planes.

FEATURES: Adapter kit for aluminum spinners
This steel adapter kit tightens the backplate & propeller onto the
engine, then using a single bolt-on design, holds & centers each
spinner perfectly on its baseplate.
Machined for accuracy
This spinner adapter kit will fit the following engines:
-O.S. FS 70-120 Surpass
-O.S. 1.40 RX
**Does not fit the OS FS-70 Ultimate or the FL70**
One year quality guarantee
Installation instructions provided on the header card

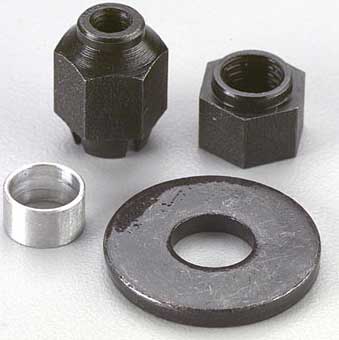

INCLUDES: (1) Propeller Nut
(1) Propeller Jam Nut
(1) Propeller Washer
(1) Aluminum Backplate Bushing

REQUIRES: 12mm Wrench To Tighten Propeller Nut
Aluminum Spinner w/Center Mounting Hole
10-32 Bolt

SPECS: Shaft Size: 5/16-24
Jam Nut Length: 1" (25mm)
Backplate Bushing Inner Diameter: 5/16"
Outer Diameter: 3/8"

COMMENTS: The correct adapter for a FS-70 Ultimate and FL70 is GPMQ4585.

JAL 4/20/99
ir/jl
kr3/20/03
