GPMA1266

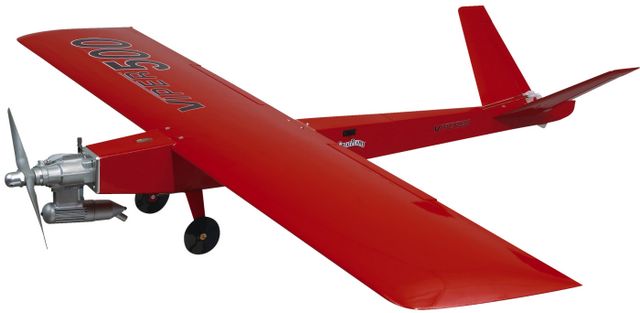

Viper 500 25-46 ARF Red

Product Info | Required Items | Replacement Parts
GREAT PLANES

GPMA1266
Viper 500 25-46 ARF Red
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Sport R/C Aircraft 40-50
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$163.99
Warehouse ?
StockStock availability for pick up
0
$163.99
Warehouse ?
0
$163.99
Store - Charlottetown ?
0
$163.99
Store - Edmonton ?
0
$163.99
Store - Mississauga ?
0
$163.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Viper 500 Fuel Tank
$8.99

Viper 500 Red Wing Set
$119.99

Viper 500 Red V-tail
$37.99

Viper 500 Back Plate Mount
$16.99

SPECIFICATIONS
51 in
Wingspan:
504 sq in
Wing Area:
41.25 in
Length:
3.0 to 3.4 lbs
Weight:
4 to 6-Channel, 4-Servo
Radio:
.25-.46 cu in
Engine 2C:

FEATURES

With a 2-stroke .25 and separate elevator/rudder control, the Viper 500 is a fun, everyday sport model. But when equipped with a larger engine and V-tail mixing, it becomes an ultra-competitive club racer. With versatility like that, the Viper 500 will appeal to a wide range of modellers.

Assembles in as little as 6-8 hours.

The wood/foam wing is reinforced with carbon fiber, and arrives pre-covered in genuine Top Flite MonoKote film.

The bolt-on tail provides accurate alignment for fast assembly and can also be removed for easy transportation.

In addition to an airfoil created for quickly 500 racing by world-famous designer Dr. Michael Selig, the Viper 500 also features wheels and mounting hardware engineered specifically to minimize drag.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the Radio Controlled, Glow Powered, Wood and Foam
Almost Ready-to-Fly Great Planes Viper 500 Sport Model Airplane Kit in Red
AMA-legal for Quickie 500 racing in 424 and 428 classes.
For Intermediate to Advanced Modeler/Fliers.

FEATURES: Construction: Balsa and plywood
Wings: One-piece foam core with carbon fiber reinforcement, balsa
sheeting applied with epoxy for added security and stiffness,
recessed wing hold down bolts to minimize drag, center section
wrapped in double layer of fiberglass cloth
Covering: Covered in Top Flite MonoKote covering, color scheme is
entirely True Red TOPQ0227
Radio Compartment: Easily accessible under wing
Landing Gear: Pre-bent aluminum
Tail Section: Self-aligning V-tail bolts to fuselage and can be
easily removed for easy transportation
Aileron Control: One servo needed with at least 35 oz-in torque
Motor Mount: Aluminum, multi-fit backplate style
Assembly Time: Ready to fly in as few as 6-8 hours
Warranty: Great Planes Model Manufacturing Company guarantees this
kit free from defects in both materials and workmanship at date
of purchase.

INCLUDES: One Great Planes Viper 500 sport model airplane kit with
pre-assembled wing fuselage & tail sections, pushrods, decal sheet,
hardware, 2" (61mm) plastic profile wheels, 6.1oz (180cc) fuel
tank (GPMA2552), photo-illustrated instructions

REQUIRES: Engine: .25-.46 (4.1-7.5cc) 2-stroke
Muffler: Stock type supplied with engine
Radio: Four channel for sport flying
Six channels or more for V-tail mixing
Servos: Four 42 oz-in torque minimum
1-ailerons, 1-elevator, 1-rudder, 1-throttle
Servo Extensions: Two 12" (305mm) for throttle and aileron servos
Misc. Items: Glow plug, " foam rubber padding, 3' medium
fuel tubing, fuel filter, propeller, building and field equipment.

SPECS: Wingspan: 52" (1320mm)
Wing Area: 504 sq in (32.5 sq dm)
Weight: 3-3.4lb (1360-1530g)
Wing Loading: 13.7-15.4 oz/sq ft (42-47 g/sq dm)
Length: 41.25" (1048mm)
Airfoil: Selig
Center of Gravity: 3" (75mm) Back from the wing's leading edge
at the fuselage sides.
Control Throws- Low Rate High Rate
Ailerons: Up & Down 1/8" (3mm) 3/8" (9.5mm)
Elevator: Up & Down 1/8" (3mm) " (6.35mm)
Rudder: Right & Left " (6.35mm)

COMMENTS:
Incidences are: thrust angle 0
wing 0
tail 0
If a replacement fuel tank is needed, order the Sullivan 6oz
Flextank (SULQ1738), or the DuBro 6oz tank (DUBQ0206).
Some minor trimming and modifications may be required.

jxs 7/23/03
ir/jxs
MonoKote colors checked & matched updated tjt 022305
updt jxs 11/16/09
