EFLG430

60-120 Tricycle Electric Retracts

Product Info | Replacement Parts
E-FLITE

EFLG430
60-120 Tricycle Electric Retracts
By E-FLITE
Discontinued
Click to Enlarge
click to enlarge

More like this... Aircraft Accessories, Retracts Trike
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$187.99
Warehouse ?
StockStock availability for pick up
0
$187.99
Warehouse ?
0
$187.99
Store - Charlottetown ?
0
$187.99
Store - Edmonton ?
0
$187.99
Store - Mississauga ?
0
$187.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
10 - 15 Triple Plug Y Harness
$13.99

60-120 90deg Elec Nose Retract
$124.99

60-120 Nose Gear Wire Strut
$12.99

60-120 Left Main Wire Strut
$5.99
SPECIFICATIONS
60-120 Size Aircraft
Application:
4.20 oz (118.5 g) each main, 4.10 oz (116.7 g) nose
Weight:
JR
Connector Type:
Steel/Brass
Gear Material:
5mA
Current Draw Idle:
900mA
Current Draw Stall:
4.8-7.4V
Voltage:

FEATURES

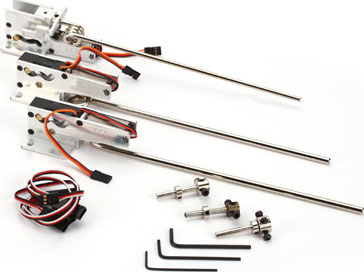

  • All-aluminum retract unit
  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in overcurrent protection
  • Main Gear Strut diameter: 5mm
  • Nose Gear Strut diameter: 4mm

 You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
