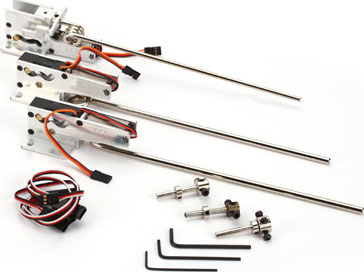

60-120 Tricycle Electric Retracts
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Accessories, Retracts Trike
But only from... E-FLITE
All items from... E-FLITE
But only from... E-FLITE
All items from... E-FLITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
60-120 Size Aircraft
Application:
4.20 oz (118.5 g) each main, 4.10 oz (116.7 g) nose
Weight:
JR
Connector Type:
Steel/Brass
Gear Material:
5mA
Current Draw Idle:
900mA
Current Draw Stall:
4.8-7.4V
Voltage:
FEATURES
- All-aluminum retract unit
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in overcurrent protection
- Main Gear Strut diameter: 5mm
- Nose Gear Strut diameter: 4mm
You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
