EFLG320

.25-.46 Rotating Electric Retracts 100-Deg

Product Info | Replacement Parts | Fits What?
E-FLITE

EFLG320

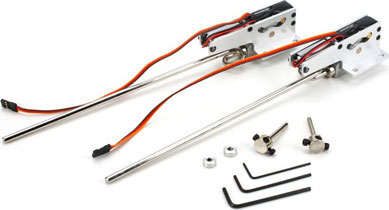

.25-.46 Rotating Electric Retracts 100-Deg
By E-FLITE
$269.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Accessories, Retracts Mains
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$269.99
Warehouse ?
StockStock availability for pick up
0
$269.99
Warehouse ?
0
$269.99
Store - Stratford ?
0
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
0
$269.99
Store - Oshawa ?
0
$269.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
10 - 15 Dual Plug Y Harness
$14.99

.25-.46 Adjustable Axles
$19.99

.25-.46 100-Deg Right Rotating Trunion
$59.99

.25-.46 Left Rotating Elec Retract Unit 100-Deg
$119.99
SPECIFICATIONS
Airplane
Application:
3 seconds per cycle
Speed:
3.7 oz (105 g) each
Weight:
JR
Connector Type:
Steel/Brass
Gear Material:
5mA
Current Draw Idle:
800mA (per retract)
Current Draw Stall:
4.8-7.2 V
Voltage:

FEATURES
  • All aluminum CNC-machined retract unit
  • Integrated electric motor with a micro PCB eliminating the need for a retract servo
  • Brass wheel collars and fully bushed brass pivot points for smooth, trouble-free operation
  • Built-in over-current protection
  • Scale appearance 100-degree retraction sweep and 90-degree rotation
  • Chrome-plated landing gear strut
  • Recommended for use in the F4U-1D Corsair 50 ARF, .46-.55 by Hangar 9 (HAN2590)
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
