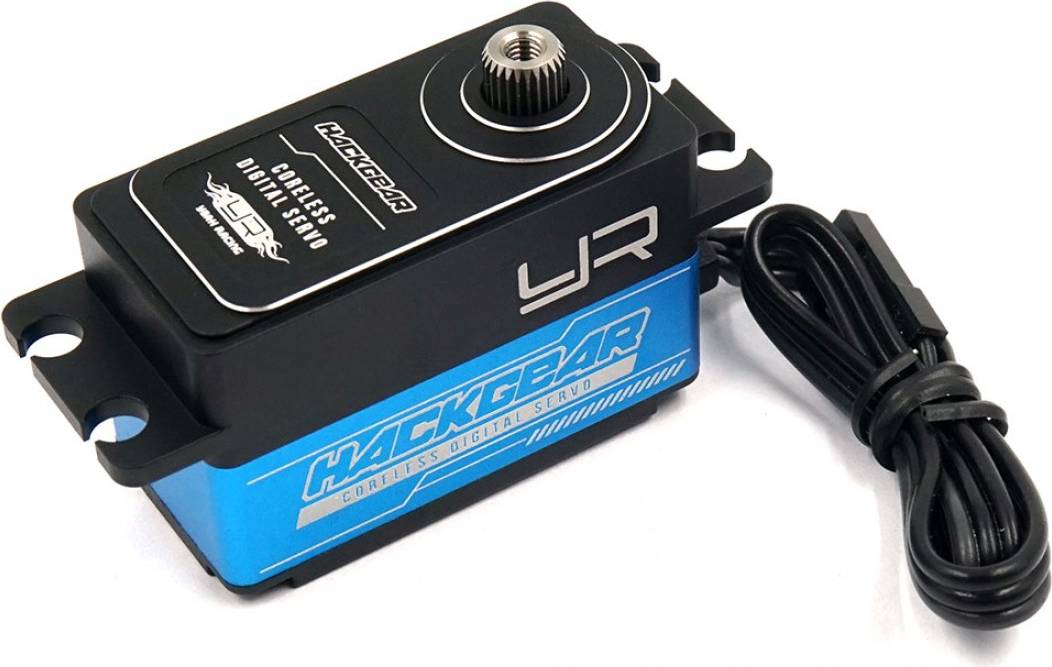

Aluminum Case Low Profile Digital High Speed Coreless Servo Blue
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
25.2 mm
Height:
Titanium and Copper
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
6.72 kg-cm (93.3 oz-in)
Torque @ 4.8V:
0.10 sec/60°
Speed @ 4.8V:
7.94 kg-cm (110 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
FEATURES
Full aluminum case low profile servo for 1/10 applications! Featuring near 10kg's worth of Torque at 7.4v, and a speed of under a tenth of a second will make this servo fit for drift and on-road racing! Full aluminum case ensures all the heat gets dissipated!
