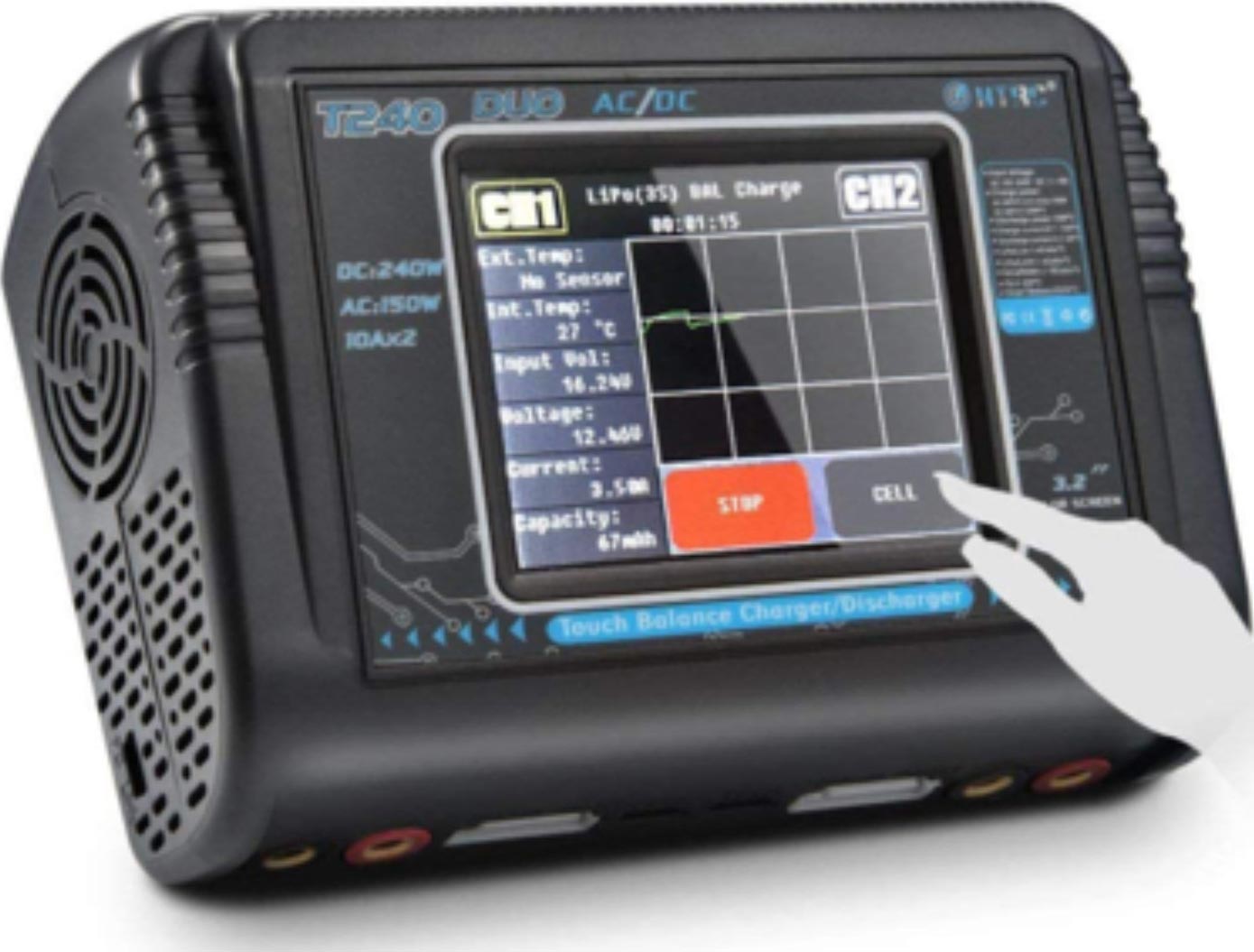

- Touch Screen
- Full plastic shell, safe, compact, beautiful.
- Twin-channel, charge two different kinds of batteries simultaneously.
- High power, single port max 150W.
- Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
- Automatic identification of Li-Po batteries cells counts
- Adjustable digital DC Power.
- Built in smart cooling fan for easy heat dissipation.
- Built-In PFC AC adapter high efficiency.comes with power switch.
- Graph display of charging status
- Multiple charging modes.
- Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
- NiMH/NiCd: Charge, Discharge, Cycle.
- PB: Charge,Discharge,Trickle.
- Multi-function:
- Battery Meter: Display lithium battery cell counts,battery capacity percentage, each cell’s voltage (does not support 1s battery).
- TVC (Terminal voltage control): The Charger allows user to set the charge/discharge end voltage.
- Lithium Battery internal Resistance Check: can display each cell’s resistance. (does not support 1s battery)
- Calibration: Cell voltage monitoring and calibration.
- Smart battery: Smart battery I,II,III,(Need optional DJI Charging cable)
- Data storage and loading
- Re-peak and cycling of NiMH/NiCD battery.
- Maximum Safety: Automatic charge current limit, Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
- Firmware update capable.
SPECIFICATIONS
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power: Max 10W*2
Charge current range: 0.1-10A *2
Discharge current range: 0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count: 1-6cells*2
NiCd/NiMH battery cell count: 1-15cells*2
PB Battery voltage: 2-20V*2
Smart battery: I/II/III*2
Current drain for balancing: 500mA/cell
Net Weight: 0.48kg
Dimension: 145*105*64mm
Gross weight: 0.85kg
Package size: 215*155*75mm

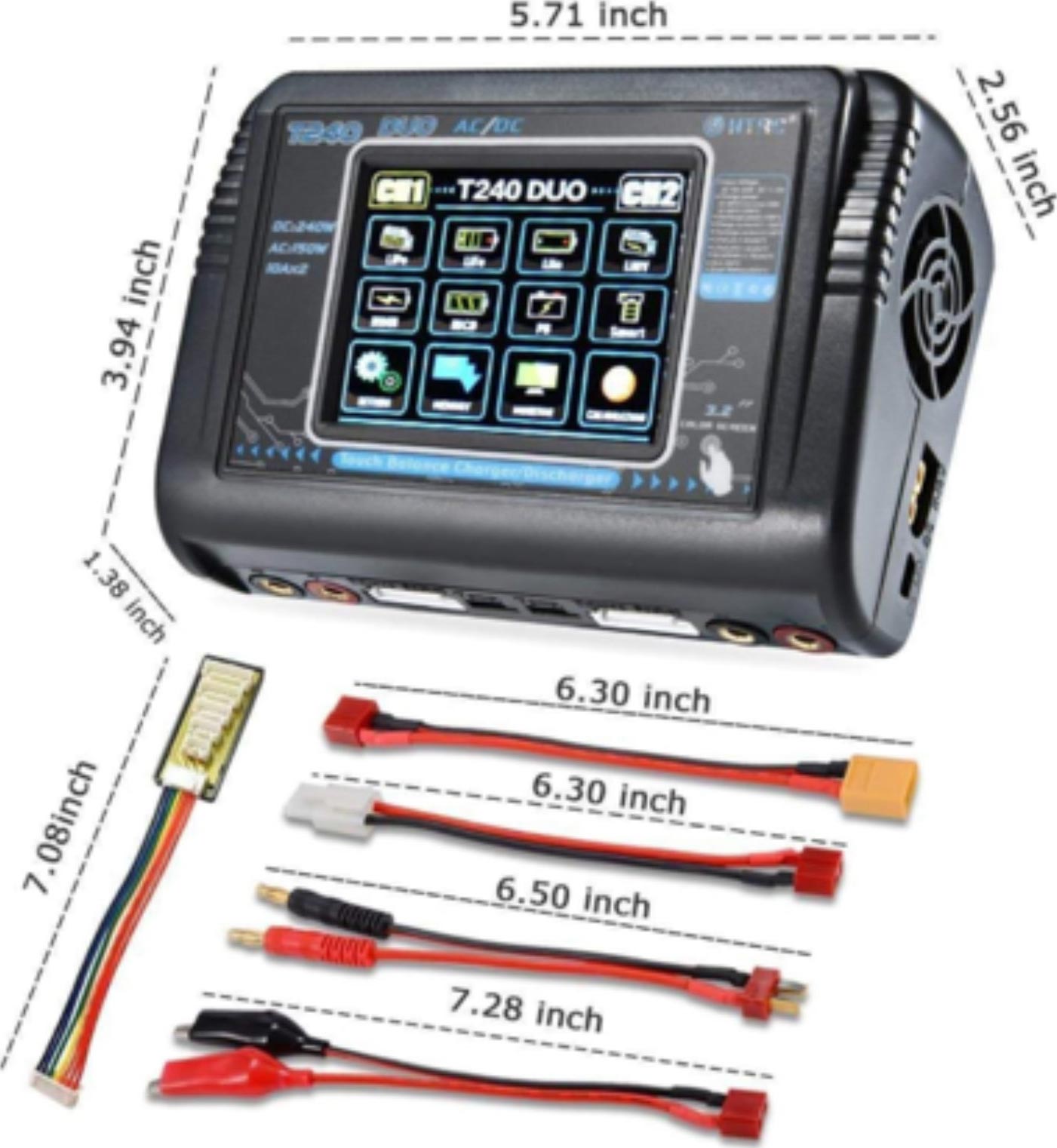

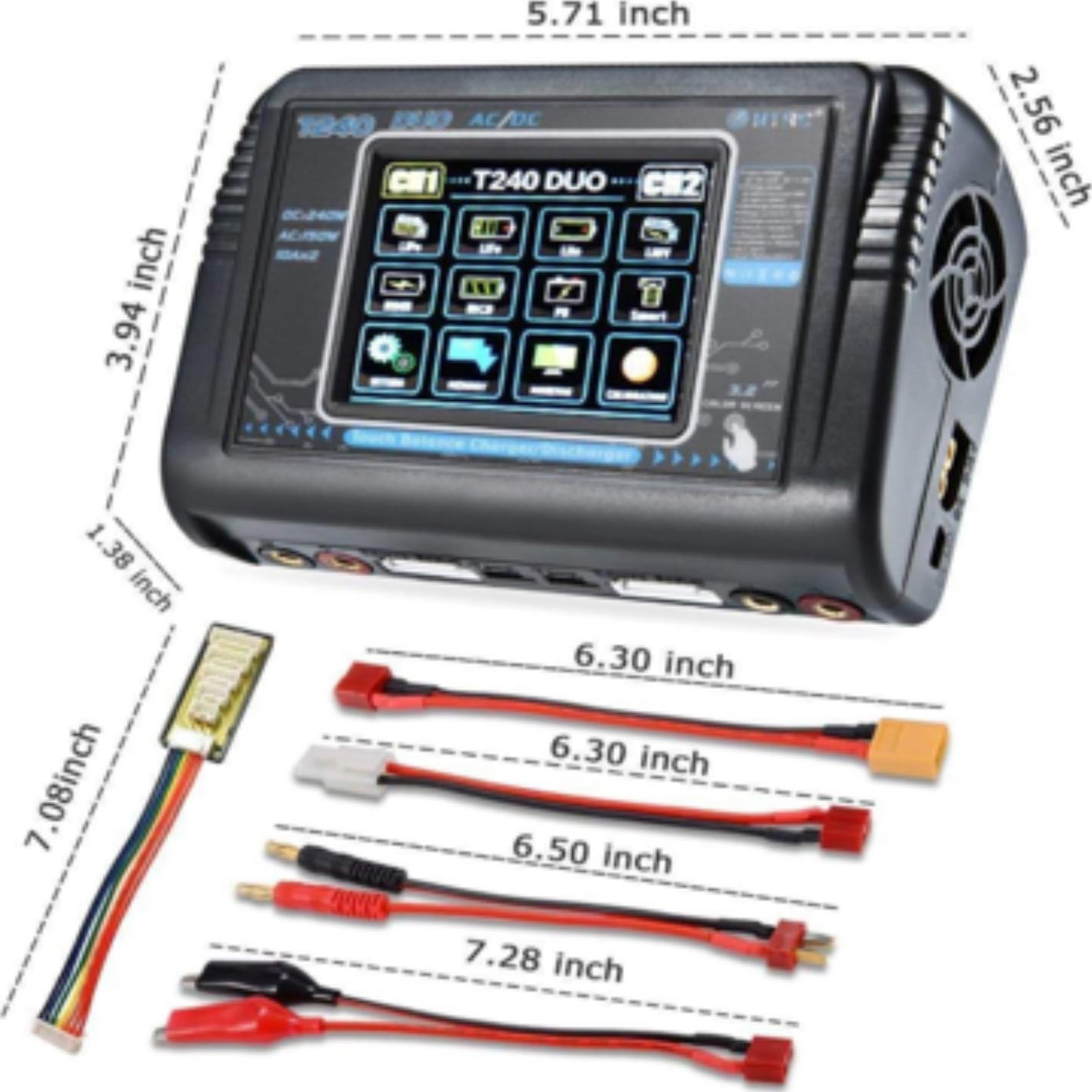

PACKAGE CONTENTS
1 x T240 charger
2 x Charge cable banana plug to T-Plug
2 x Extension charge cable T-Plug to XT60
2 x balance board with pin cord
1 x AC Cor
1 x DC Cord
1 x User’s Manual
