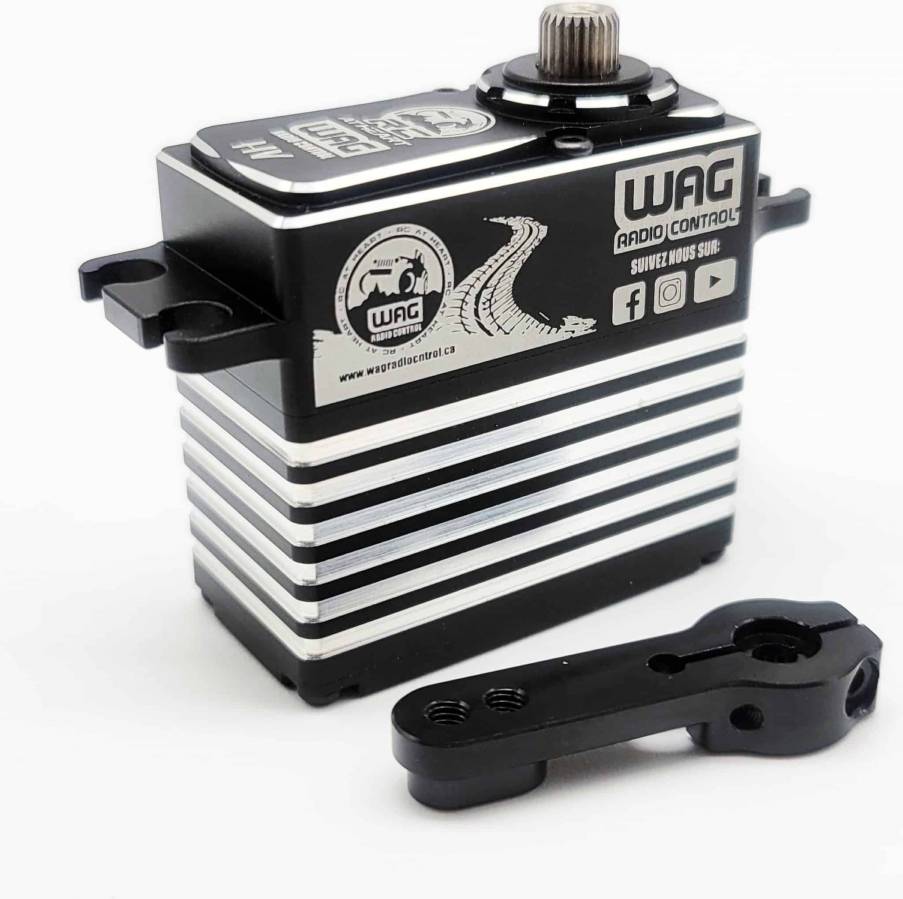

Standard Servo 68Kg Brushless MG IP67
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard Size
Size Class:
Brushless
Type:
1/8 or 1/10 Scale
Application:
Bearing
Bearing/Bushing:
40 mm
Length:
20 mm
Width:
37.2 mm
Height:
87 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
4.8-8.4 v
Voltage Range:
28 kg-cm
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
34 kg-cm
Torque @ 6.0V:
0.115 sec/60°
Speed @ 6.0V:
39 kg-cm
Torque @ 7.4V:
0.100 sec/60°
Speed @ 7.4V:
45 kg-cm
Torque @ 8.4V:
0.085 sec/60°
Speed @ 8.4V:
FEATURES
- Ultra light unique design
- Extra strong patent steel gears
- High efficiency brushless motor
- Super strong three ball bearings
- Magnetic Sensor Waterproof IP67
- Strengthen high chrome steel shaft
- Full CNC Aluminium hulls and structure
- High performance standard digital servo
- Ideal for 1/8 or 1/10 Scale On road, off road, Truck, Boat, Airplane, Helicopter, Robot and engine etc.
WAGSRV68BLA
