SPECIFICATIONS
4.8-11.1 V
Input Voltage:
Brushed/Brushless/Sensorless Brushless
Motor Compatibility:
Nono
Motor Limit:
200 A
Continuous Current:
320 A
Peak Current:
6 V
BEC Current:
MOSFET
Transitor Type:
0.00075 ohms
On-Resistance:
Two-Stage Thermal Shutdown
Thermal Protection:
FEATURES
Auto detects brushed, brushless or sensored brushless motor types
Compatible with 4-cell NiCd or NiMH batteries up to 3S LiPo packs
(11.1V)
Three drive profiles Sport, Race and Training mode
Locked rotor protection if vehicle is stuck or motor is bound
Battery over-voltage protection triggers failsafe if maximum input
voltage is exceeded
Sensor phase detection protects against improperly wiring aftermarket
sensored motors
Sensored motor backup protection switches to sensorless operation if
motor sensor fails
Auxiliary fan output (fan not included)

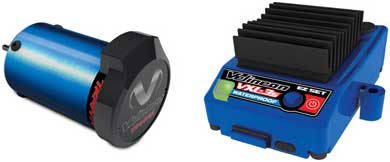

The Velineon® VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles and intuitive programming. Tri-mode operation auto detects the motor type for brushed, sensored or sensorless brushless motors. The VXL-3s™ uses advanced circuit design that allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. It sets up, operates, and programs just like the Traxxas XL-5™ family of ESCs so there’s no tricky new procedures to learn. Traxxas’ exclusive patent-pending Training Mode™ is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3s is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs!
