TLR04003

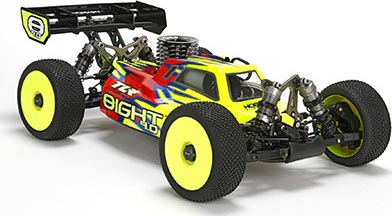

8IGHT 4.0 Race Kit 1/8 4WD Nitro Buggy

Product Info | Replacement Parts | Optional Items
TEAM LOSI RACING DIVISION

TLR04003
8IGHT 4.0 Race Kit 1/8 4WD Nitro Buggy
By TEAM LOSI RACING DIVISION
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Nitro 4WD Buggy Kits
But only from... TEAM LOSI RACING DIVISION
All items from... TEAM LOSI RACING DIVISION


 Inventory Status Legend
StockStock availability for on-line ordering
0
$679.99
Warehouse ?
StockStock availability for pick up
0
$679.99
Warehouse ?
0
$679.99
Store - Stratford ?
0
$679.99
Store - Edmonton ?
0
$679.99
Store - Mississauga ?
0
$679.99
Store - Ottawa ?
0
$679.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Silicone Shock Oil 30wt 2oz
$8.99

Silicone Shock Oil 35wt 2oz
$8.99

Silicone Shock Oil 50wt 2oz
$8.99

Silicone Shock Oil 40wt 2oz
$8.99
Silicone Shock Oil 45wt 2oz
$8.99

Silicone Diff Fluid 10,000cSt
$14.99

Silicone Shock Oil 17.5wt 2oz
$8.99

Silicone Shock Oil 25wt 2oz
$8.99
SPECIFICATIONS
19.6 in
Length:
12.1 in
Width:
7.1 in
Height:
12.7-12.9 in
Wheelbase:
4WD With Center Diff
Drivetrain:
2-channel
Radio Requirements:
Steering, Throttle
Servo Requirements:
2-channel
Receiver Requirements:
.21-.31 cu in
Engine Requirements (nitro):

FEATURES
  • Durable 4mm hard-anodized 7075 T-6 aluminum chassis
  • Improved suspension geometry
  • Reduced front driveshaft angle
  • Ball bearing throttle and brake actuators
  • Large-bearing spindles and hubs
  • Revised chassis side guards
  • Larger engine mount that reduces chassis flex
  • 15° caster blocks with adjustable spindle height
  • Aluminum shock caps with threaded bleeder holes
  • Molded driveshaft and dog bone boots
  • Aluminum shock towers with updated camber link and shock location holes
  • Weight ballast-ready to meet ROAR minimum weight requirement

The story of the 8IGHT platform is the story of a champion - one that encompasses multiple ROAR national titles in addition to major wins on the international stage. The 8IGHT 4.0 buggy builds on this championship-winning heritage with updates to the suspension geometry and drivetrain layout that make it both easier to drive and tougher to beat.

Revised Suspension Geometry
New suspension geometry makes it easier for drivers of all experience levels to turn faster lap times with fewer mistakes, particularly during brutal, hour-long mains.

Optimized Drivetrain Layout
The engine has been repositioned to reduce front driveshaft angle so more power makes it to the front wheels.

Ball Bearing Actuators
The revised throttle actuator now uses bearings to further improve throttle and brake response. It also features a new brace that prevents flexing during heavy braking.

Large Bearing Spindles and Hubs
Front spindles and rear hubs have been revised to accept a larger 8 x 16 x 5 outer bearing for increased durability.

Revised Chassis Side Guards
The chassis side guards have been updated for a better fit. They also feature indentations for the Velcro body strips.

Large-Footprint Engine Mount
In addition to its new position, the engine mount has been designed with a larger footprint that substantially reduces chassis flex and fatigue underneath the engine when racing on high-grip tracks.

Adjustable Caster Blocks
The adjustable, 15-degree caster blocks make it possible to tune dog bone plunge by changing the height of the spindle.

New Bleeder Shock Caps and Seals
The new bleeder shock caps and internal seals allow for easier rebuilds while using an emulsion shock setup. New bushings that press into the shock cap further improve durability.

Driveshaft and Dog Bone Boots
Molded rubber boots on the universals and center drivetrain dog bones increase U- joint life by holding lubrication in and keeping dirt out.

Redesigned Shock Towers
The machined aluminum shock towers have new camber link and shock location holes that give racers more tuning options for changing track conditions.

Weight Ballast-Ready
The chassis has been designed to accommodate hard-mount ballast weights so it is easier to meet the ROAR minimum weight requirement.

Cab-Forward Body
The cab-forward body moves aerodynamic pressure further forward on the car, which improves steering.
