TLR03009

22SCT 3.0 Race Kit 1/10 2WD Short Course Truck

TEAM LOSI RACING DIVISION

TLR03009
22SCT 3.0 Race Kit 1/10 2WD Short Course Truck
By TEAM LOSI RACING DIVISION
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Short Course 2WD Racer Kits
But only from... TEAM LOSI RACING DIVISION
All items from... TEAM LOSI RACING DIVISION


 Inventory Status Legend
StockStock availability for on-line ordering
0
$529.99
Warehouse ?
StockStock availability for pick up
0
$529.99
Warehouse ?
0
$529.99
Store - Stratford ?
0
$529.99
Store - Edmonton ?
0
$529.99
Store - Mississauga ?
0
$529.99
Store - Ottawa ?
0
$529.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Silicone Shock Oil 30wt 2oz
$8.99

Silicone Shock Oil 35wt 2oz
$8.99

High-Pressure Black Grease (8cc)
$8.99

Silicone Shock Oil 25wt 2oz
$8.99
Silicone Shock Oil 32.5wt 2oz
$8.99

Silicone Shock Oil 37.5wt 2oz
$8.99

Turnbuckle Wrench 22 8B 8T
$18.99

Silicone Shock Oil 27.5wt 2oz
$8.99
SPECIFICATIONS
21.15 in
Length:
9.72 in
Width:
7.28 in
Height:
1.98 in
Ground Clearance:
12.8 in
Wheelbase:
2WD
Drivetrain:

FEATURES
  • Based on the championship-winning 22 3.0 buggy
  • Revised mid-motor mounting location
  • Revised front and rear suspension geometry
  • 3-Gear transmission for better acceleration and grip
  • Aluminum-plate rear hub
  • HDS Slipper with HD Spring
  • Lightweight 7075-T6 aluminum chassis

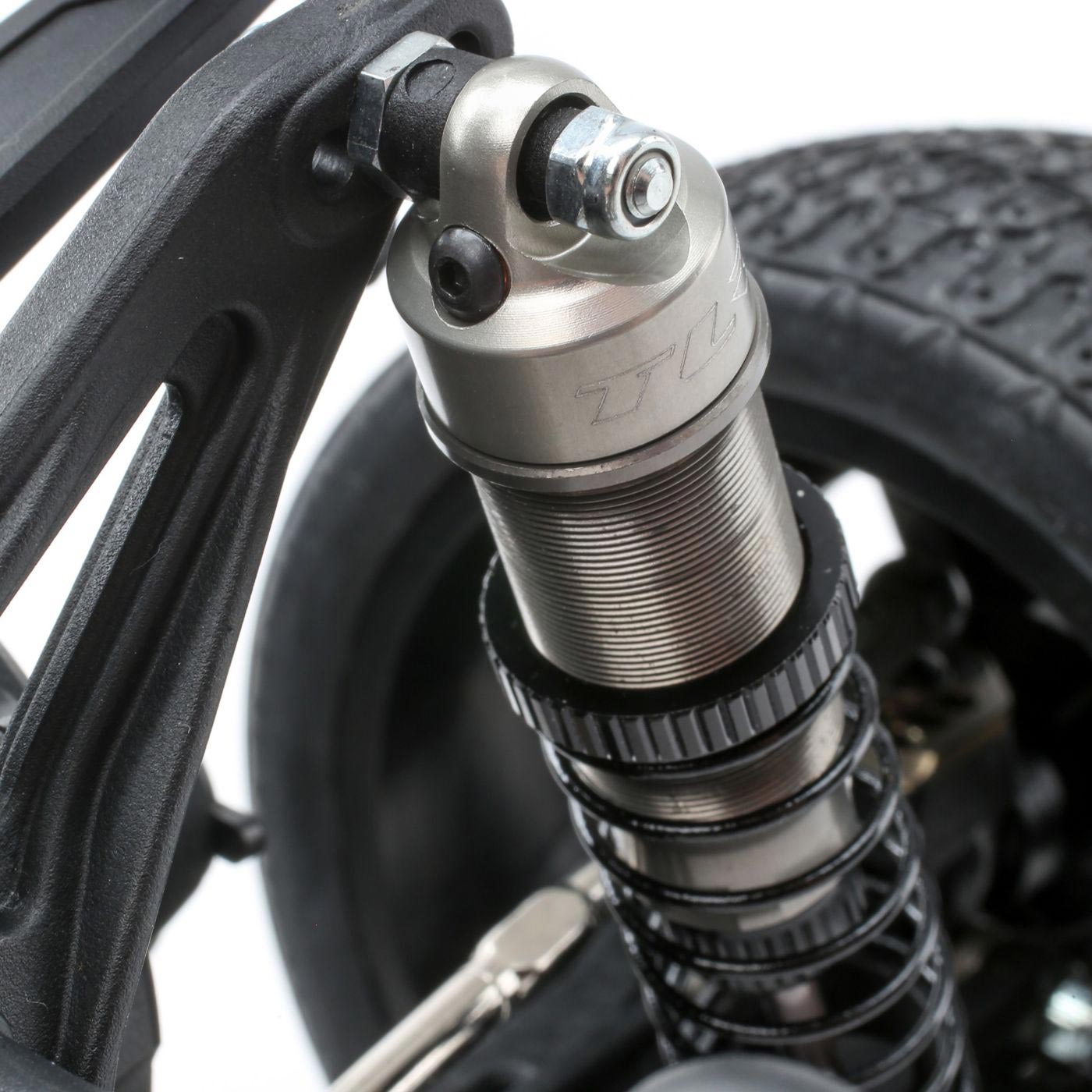

  • Gen II 12mm big-bore shocks
  • Transverse battery mounting option

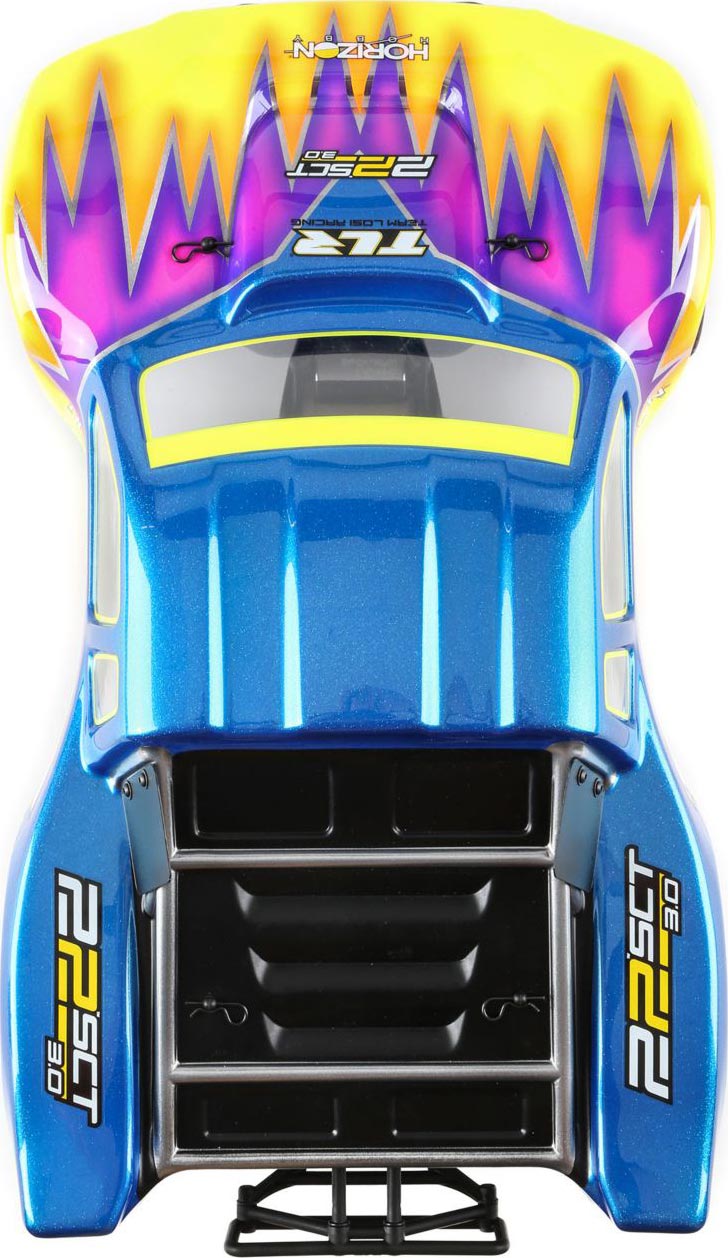

  • TLR pre-cut body
  • Many popular option parts included as standard

The 22SCT 3.0 builds on the advances of its predecessor with a host of changes that make it the truck to beat in short course competition. Also, many parts that were considered optional on the 2.0 are now included so you can build to team spec right out of the box.

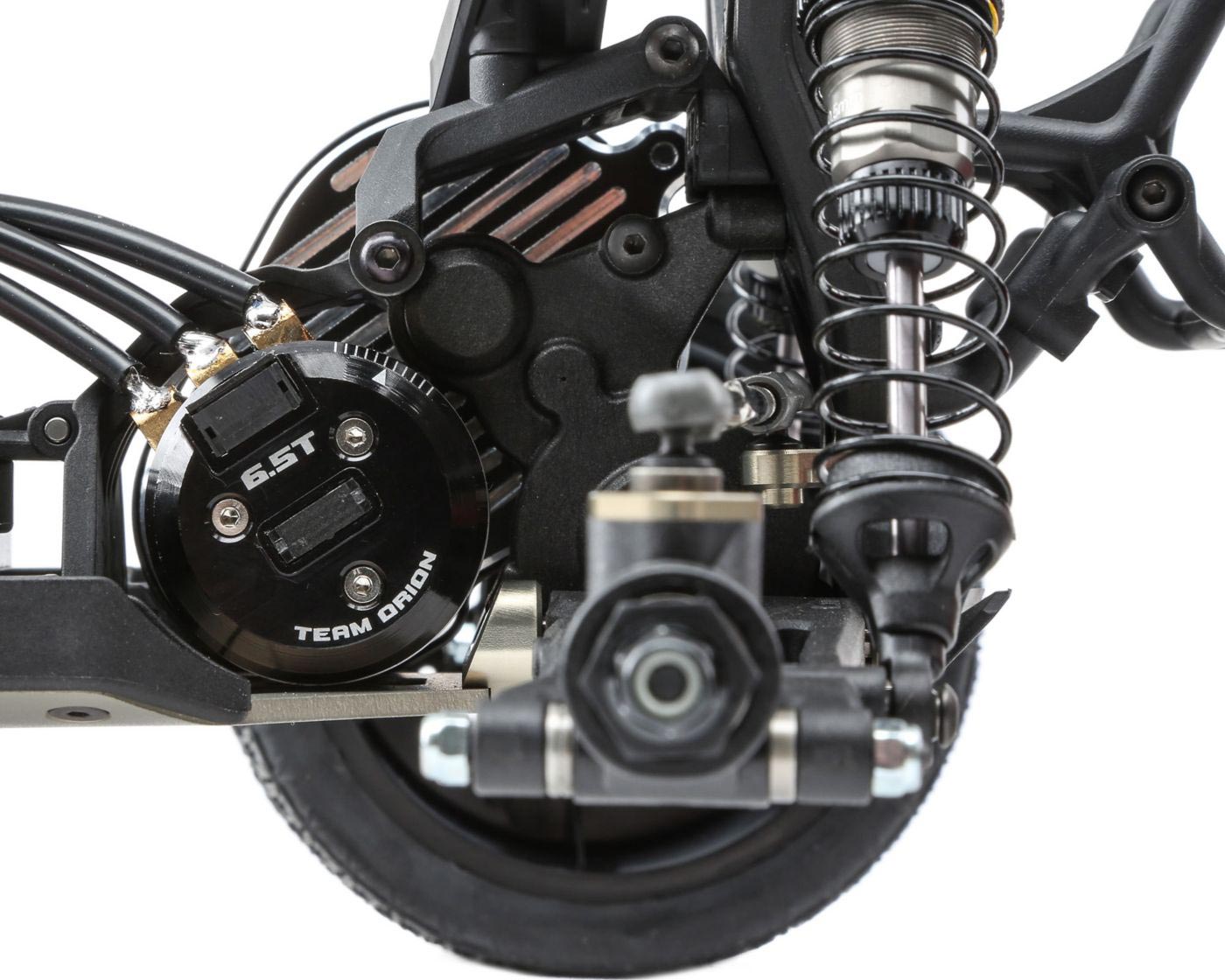

Revised Motor Location

As with the 22 3.0 buggy, the 22SCT 3.0 motor location is 12mm closer to the diff gear than it was in the previous version. This increases the rear weight bias, providing better rear grip on exit, more entry steering and a truck that, overall, is easier to drive.

3-Gear Transmission

During testing, the 3-gear transmission substantially improved speed and rear-end grip for both spec and modified classes. Other benefits included better handling, quicker acceleration. A 4-gear transmission is available separately so drivers can dial in response for any track surface, grip level, or driving style.

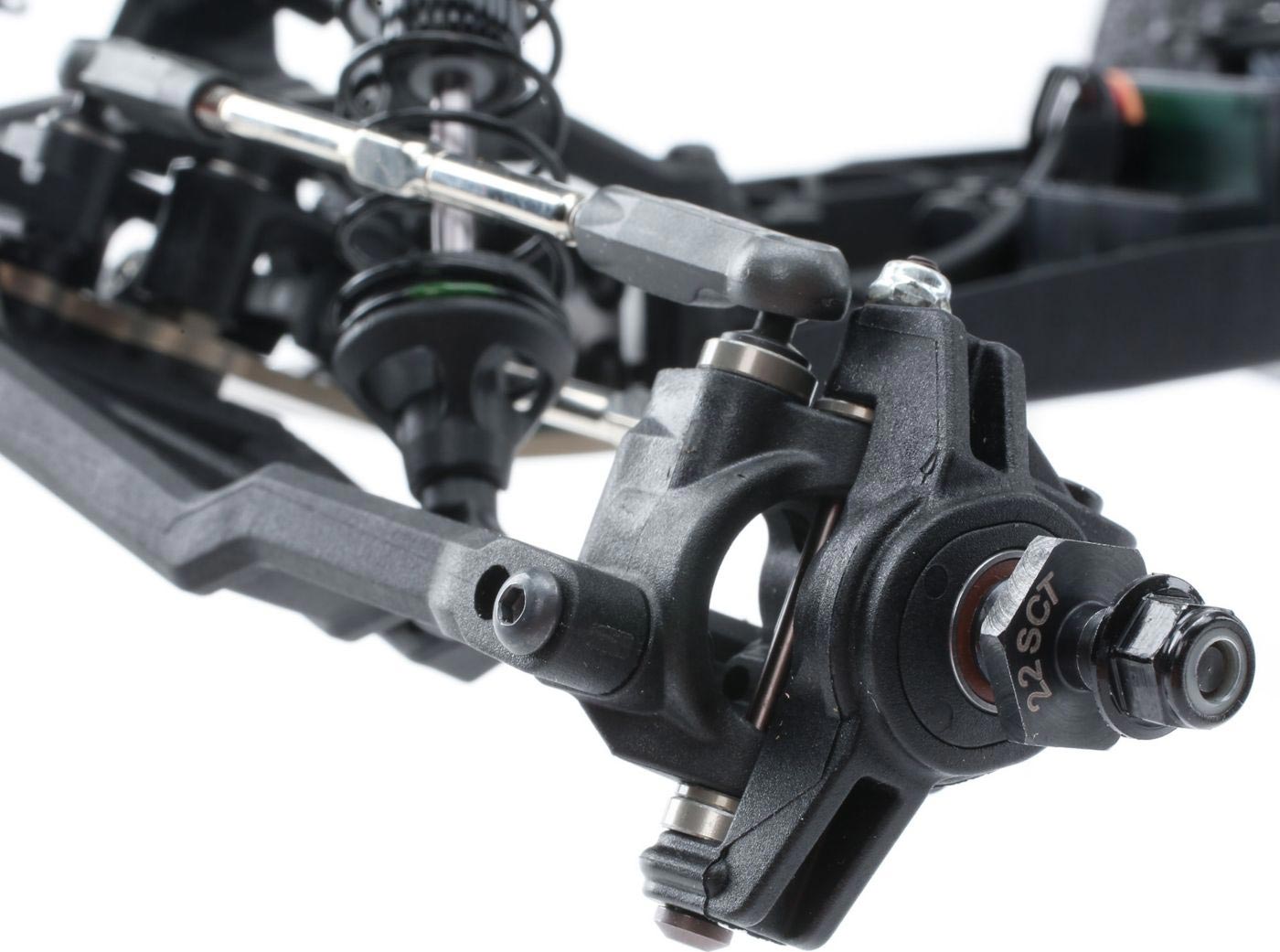

Revised Front Suspension Geometry

All-new front caster blocks and suspension arms allow for variable length arm adjustment. This, together with the bell crank steering system, provides the same amazing steering 22SCT drivers have come to love, but with a more consistent feel between different surfaces. It all adds up to a truck with neutral balance that requires less tuning from track to track to maximize performance.

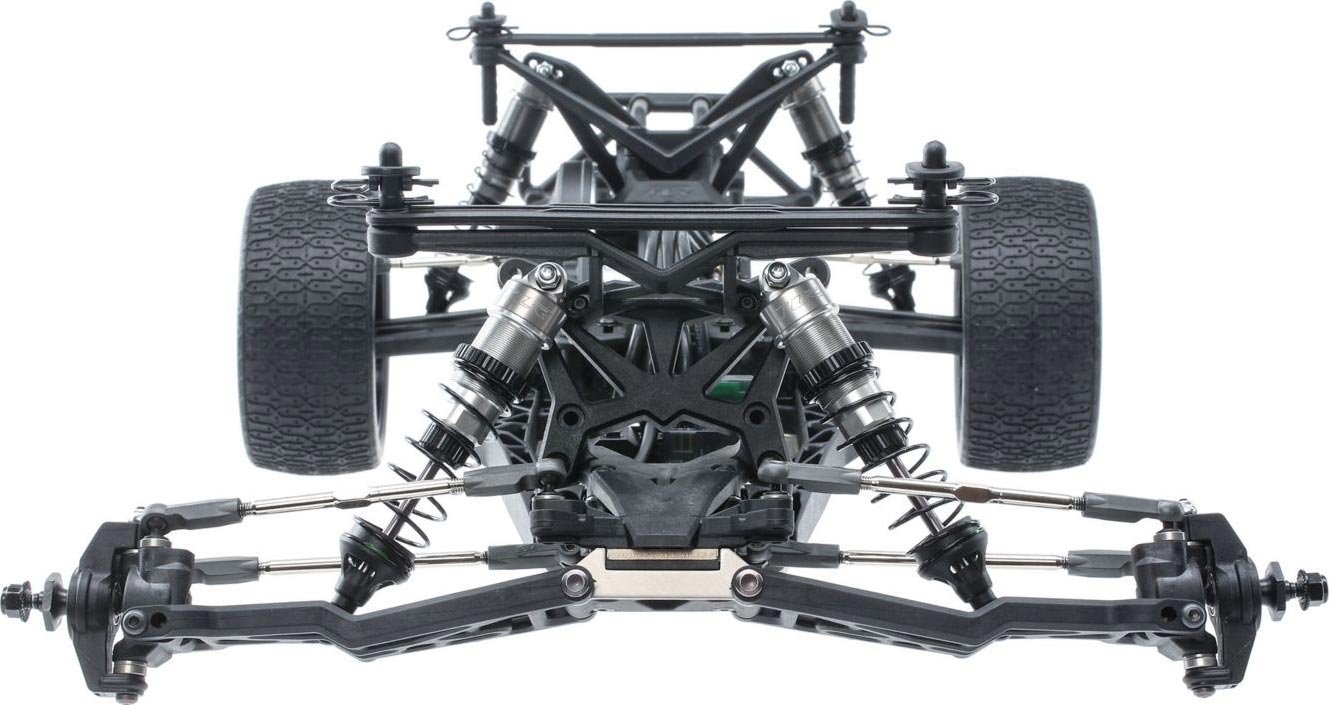

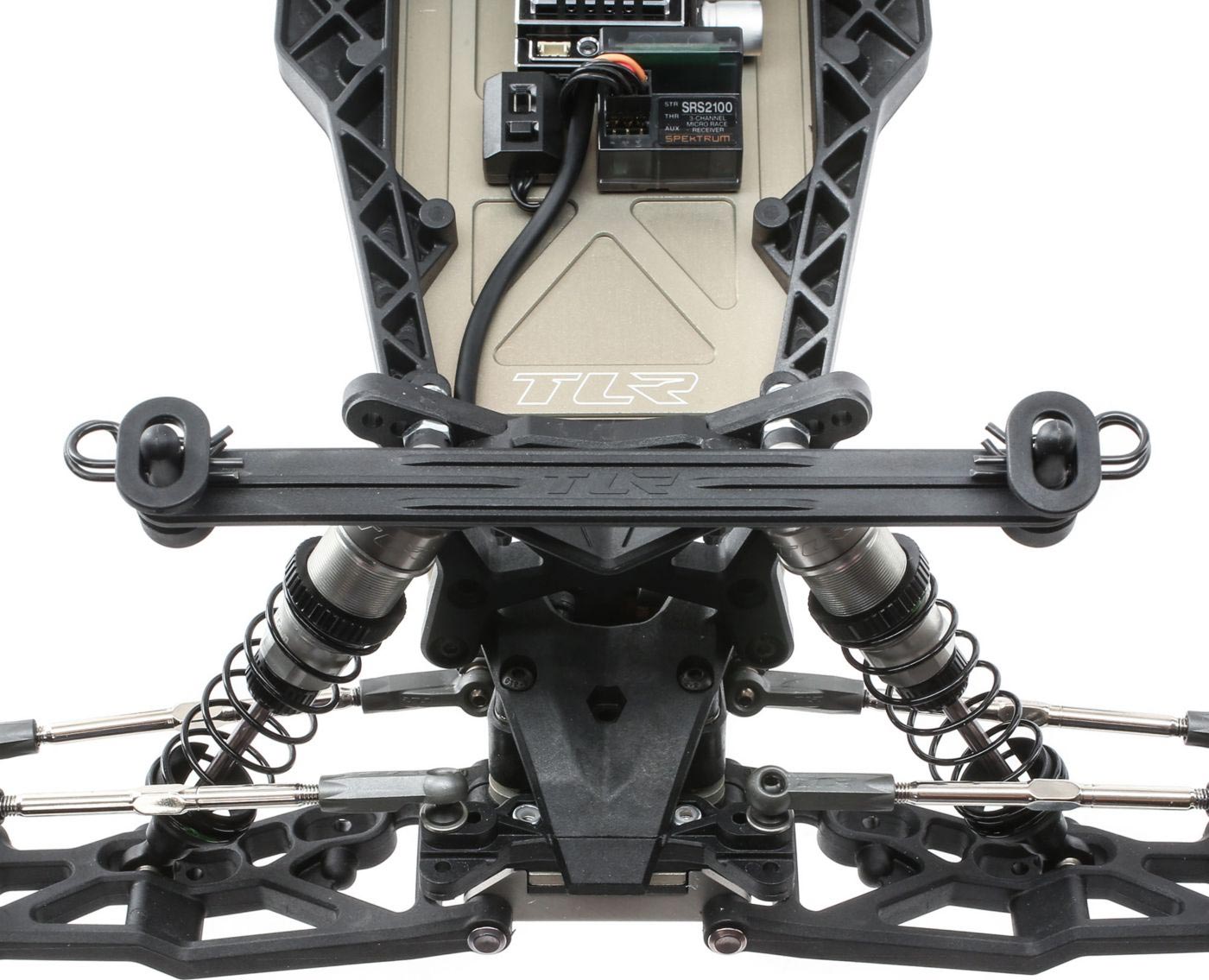

Revised Rear Suspension Geometry

The rear pivot is 2mm wider for better rear grip and stability without losing any corner speed. The rear arms and shock towers have revised shock mounting locations. The jumping, landing, and chassis roll dynamics of the rear end have been optimized for a higher rear weight bias percentage.

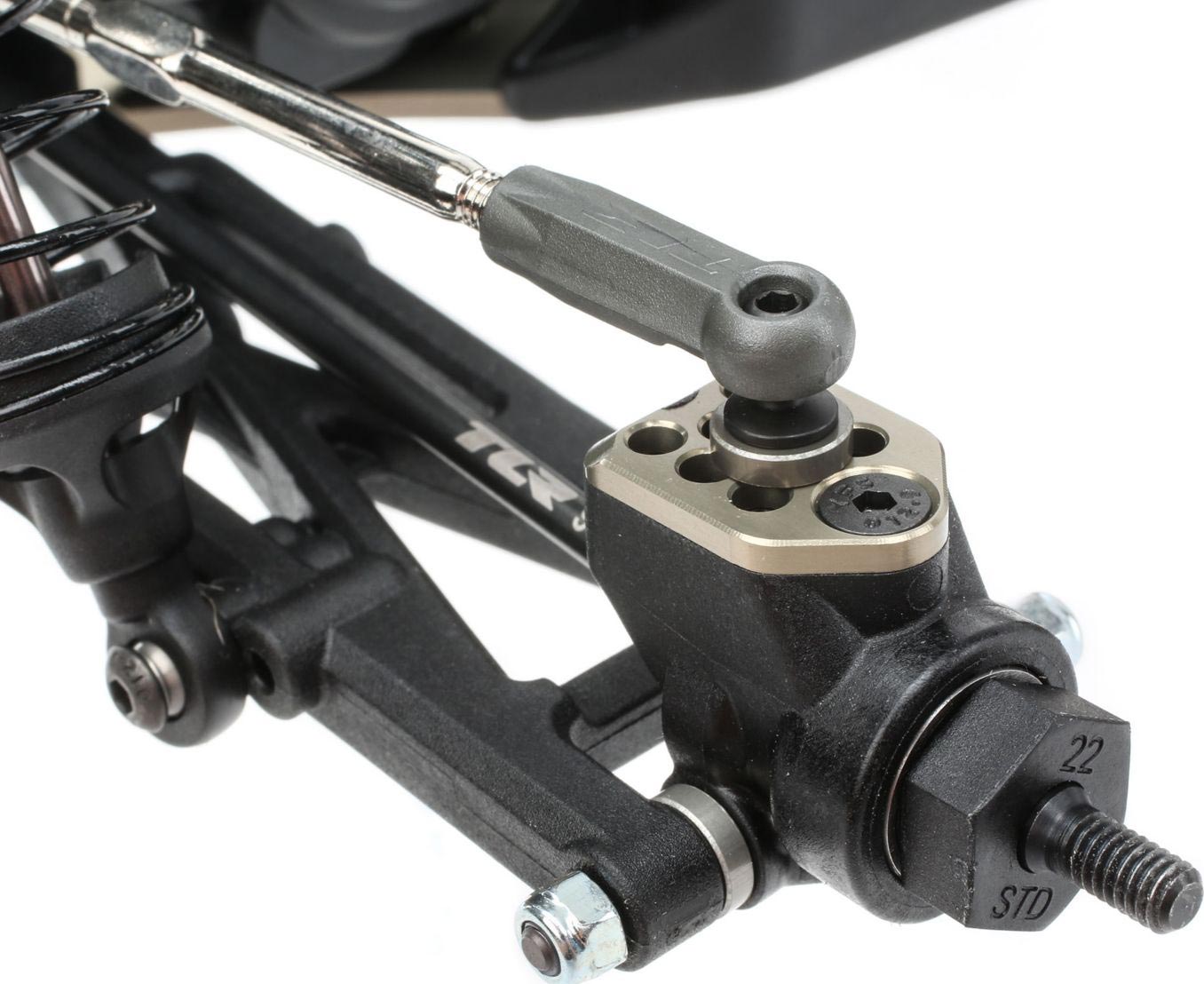

Aluminum-Plate Rear Hub

The hub base is molded composite, allowing a bearing to be press fit without play and minimal unspring weight when compared to an all-aluminum hub. The aluminum plate is secured to the hub with an M3 screw and ball stud, which is vertically adjustable. Now the ball stud is supported by aluminum from pushing or pulling out, while still threading into composite so it cannot work loose.

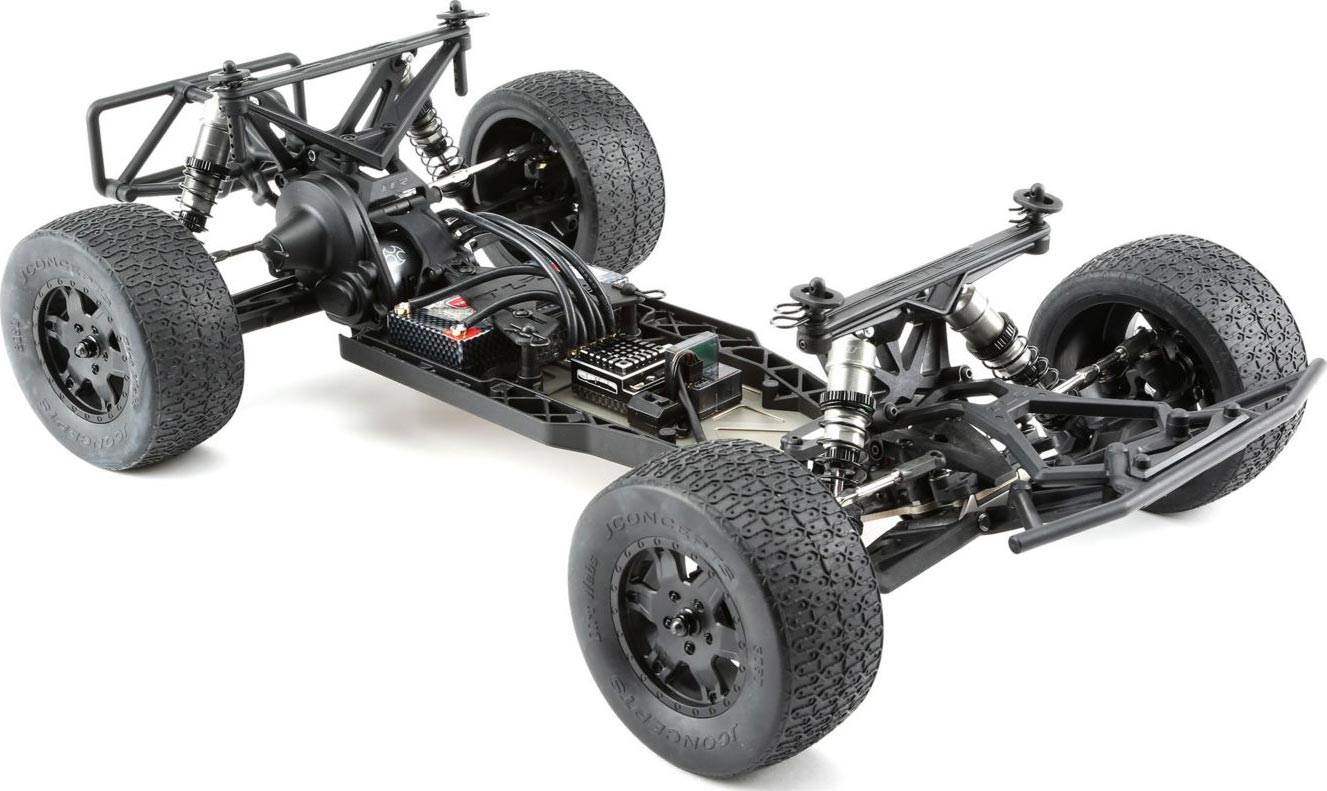

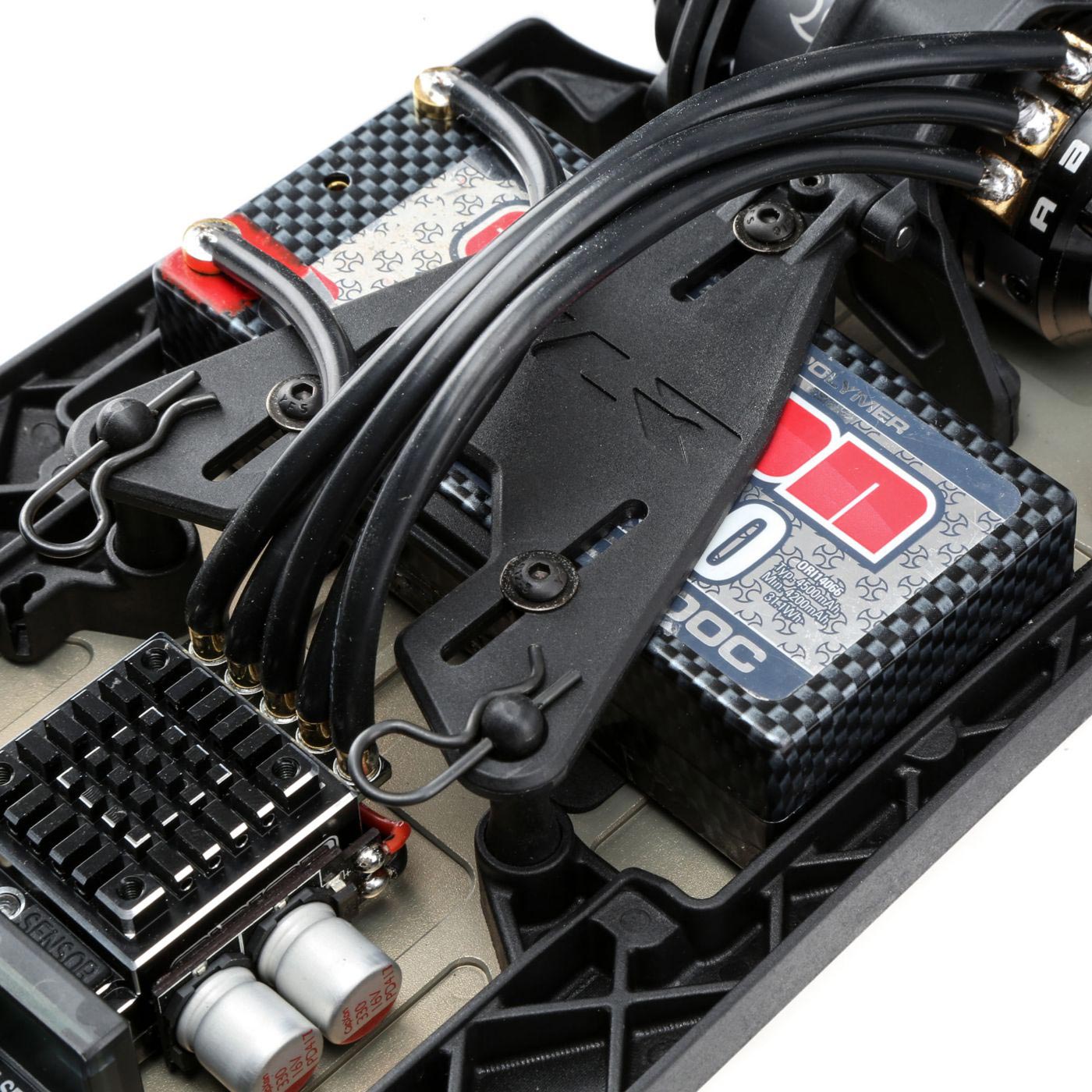

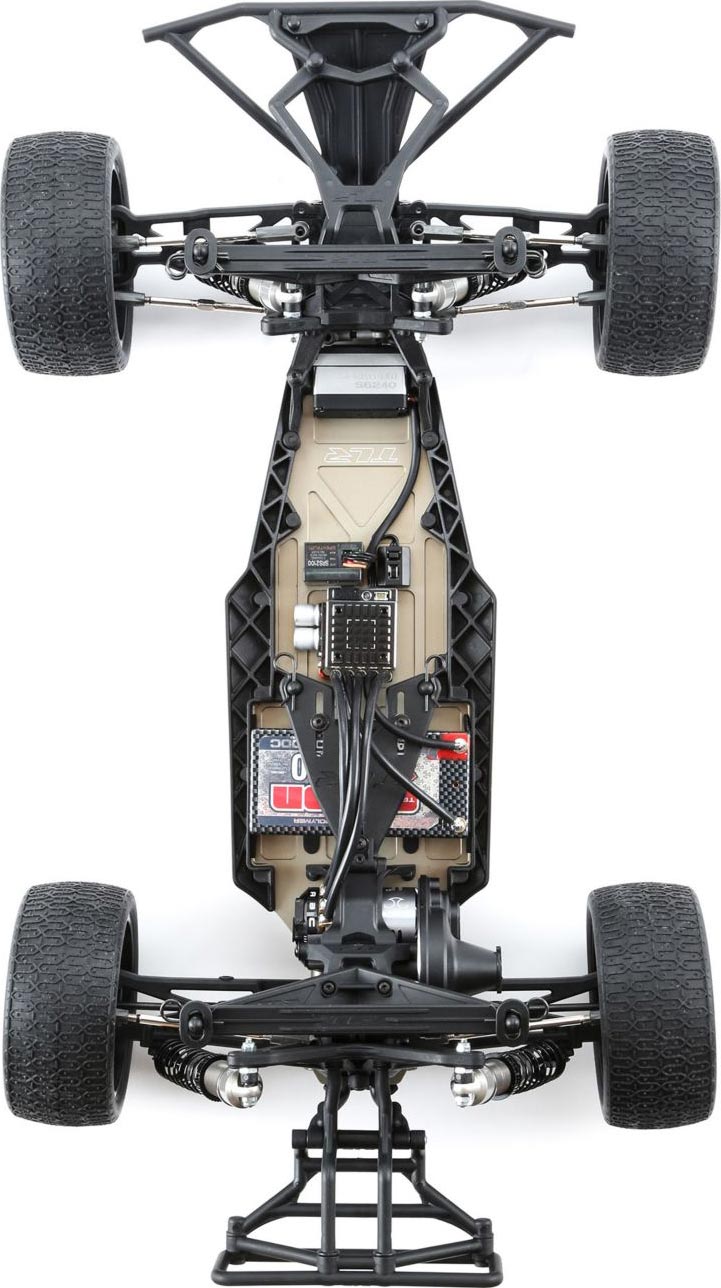

Transverse Battery Mounting

The new, wider 2.5mm aluminum chassis and molded mud guards create a battery mounting pocket which allows shorty- and saddle-style LiPo packs to be mounted transversely across the chassis. Shorty packs can also be mounted in line with the chassis. This allows racers to fine tune the weight bias of the truck for just about every racing condition imaginable.

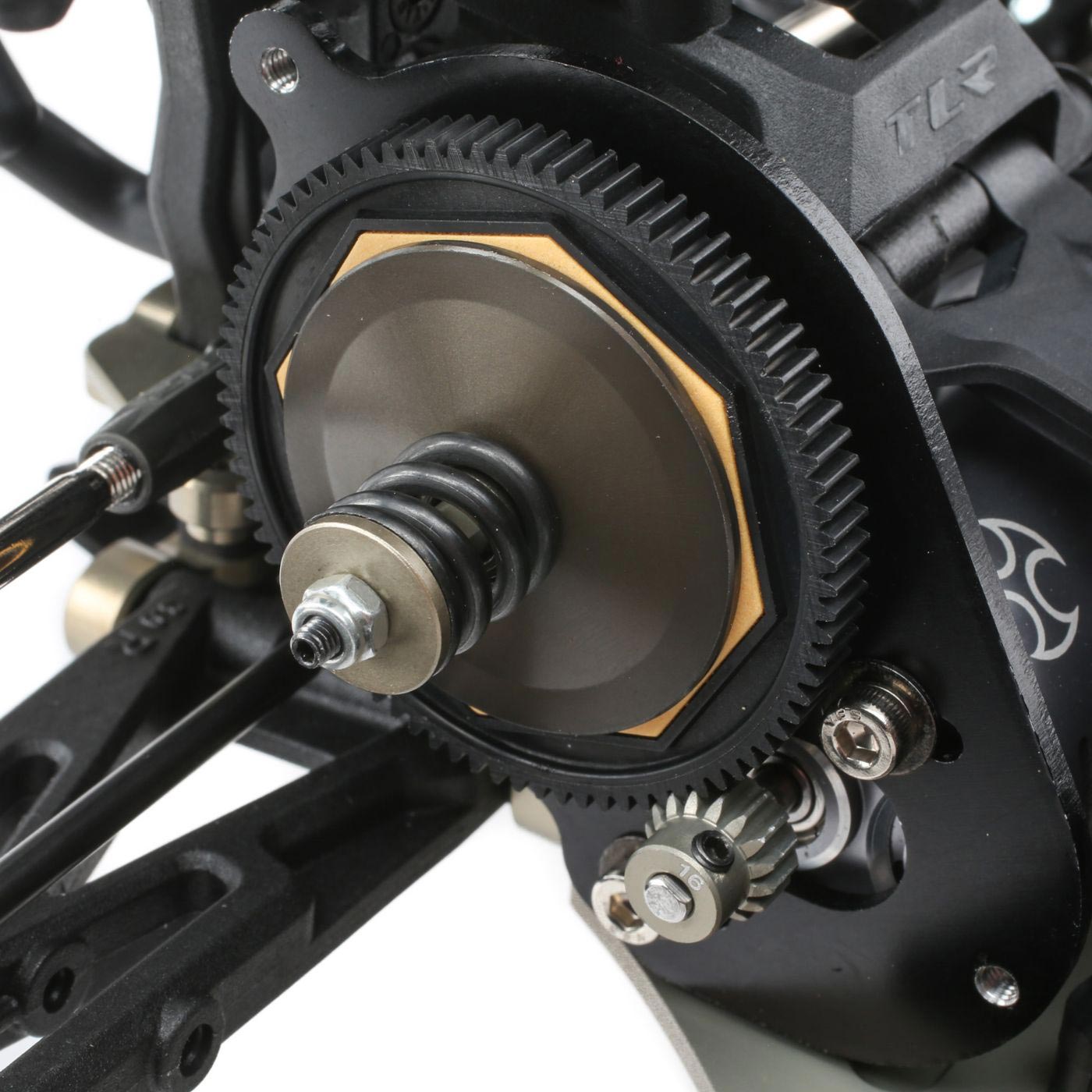

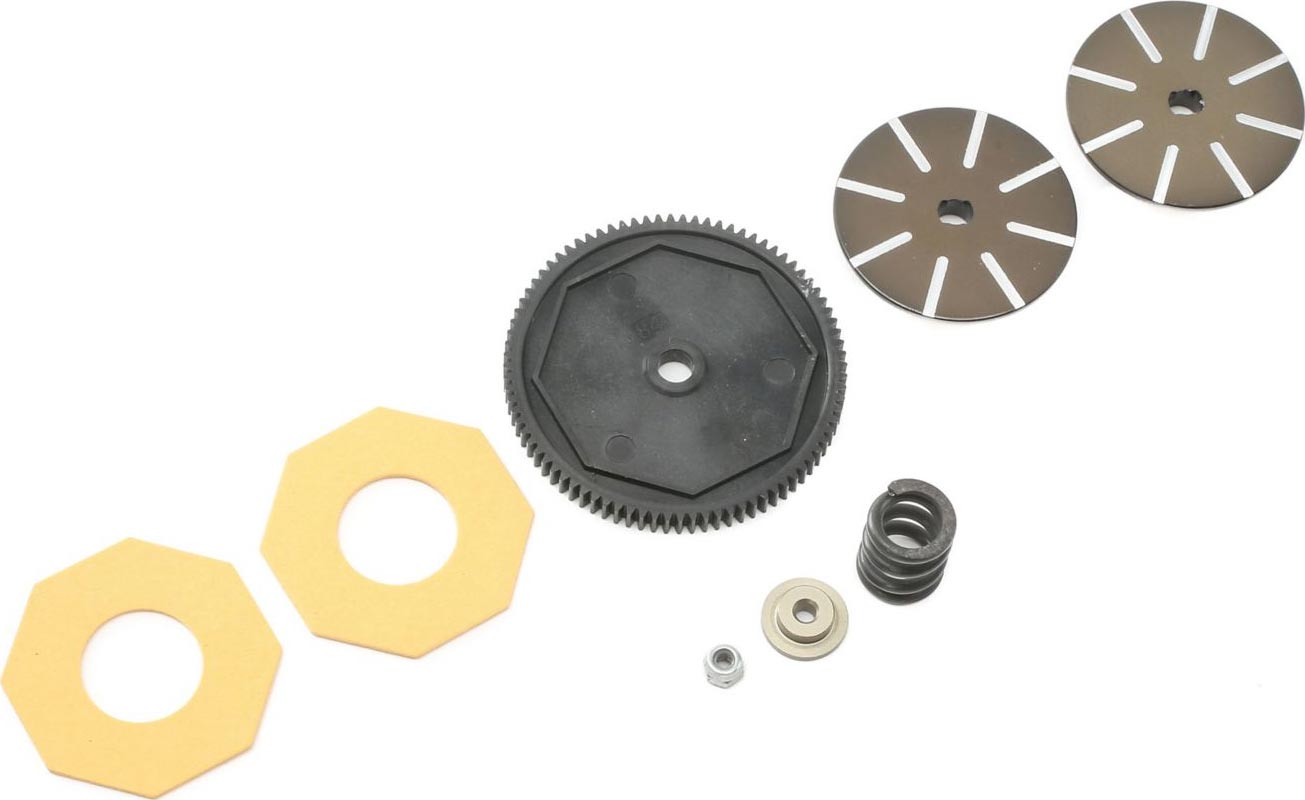

HDS Slipper with HD Spring

The 22SCT 3.0 includes Heavy Duty Slipper (HDS) pads and 84T HDS spur gears as well as grooved and tapered slipper plates. The biggest improvement comes with the HD slipper spring that offers a wider range of adjustment. It also makes the slipper more consistent.

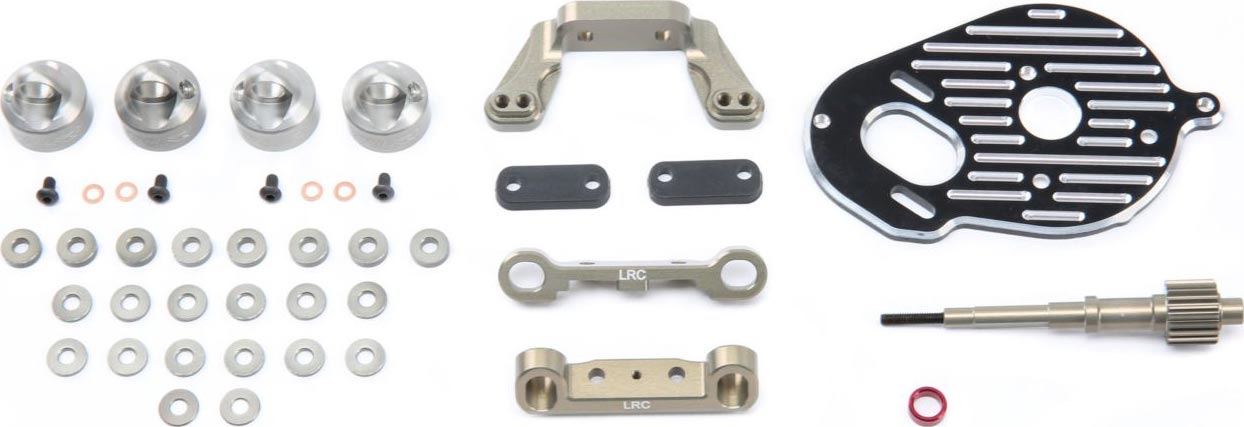

Included Option Parts

Many of the parts included with this kit are popular upgrades that provide everything needed to build a pro-level short course truck right out of the box. This includes milled, 7075-T6 aluminum parts like the top shaft, adjustable rear pivot mounts, motor plate, rear camber block, bleeder shock caps and ball stud spacers throughout.

You will need...

Motor
Electronic Speed Control
Servo
Tires
Radio System
48 Pitch Pinion Gear
Charger
Battery
