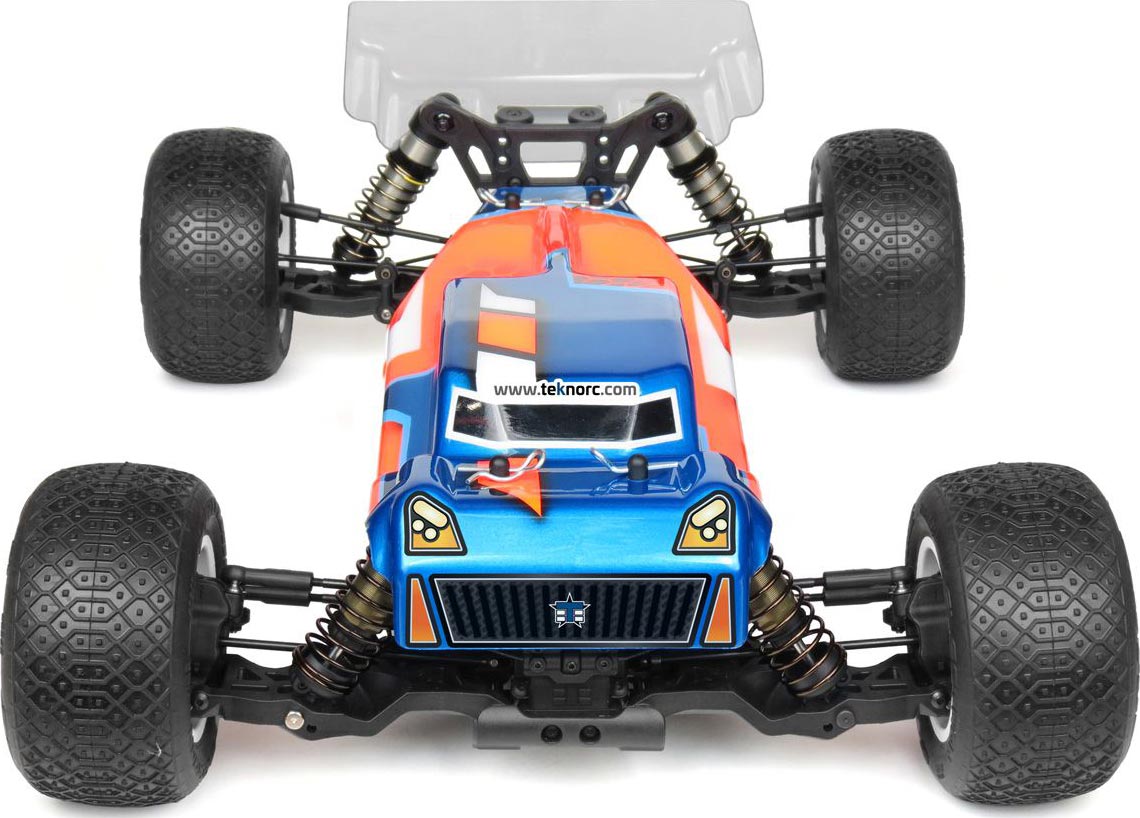

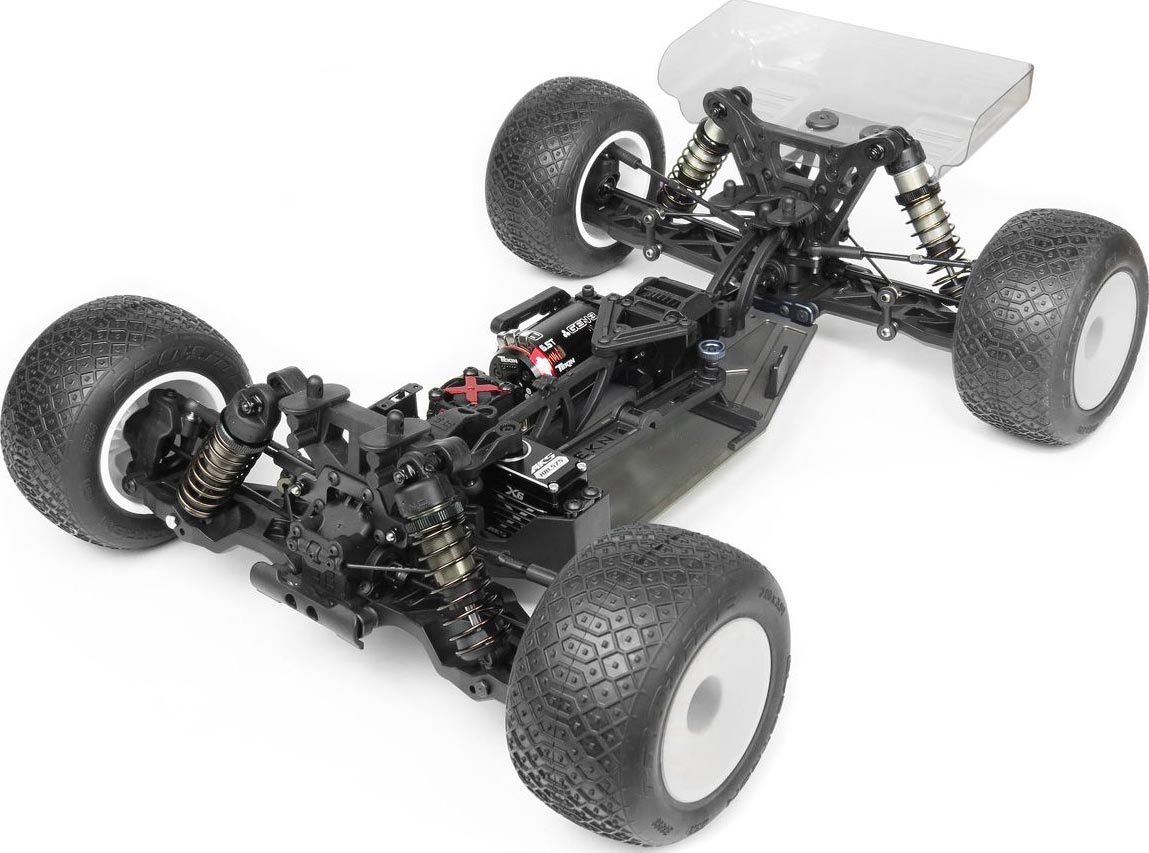

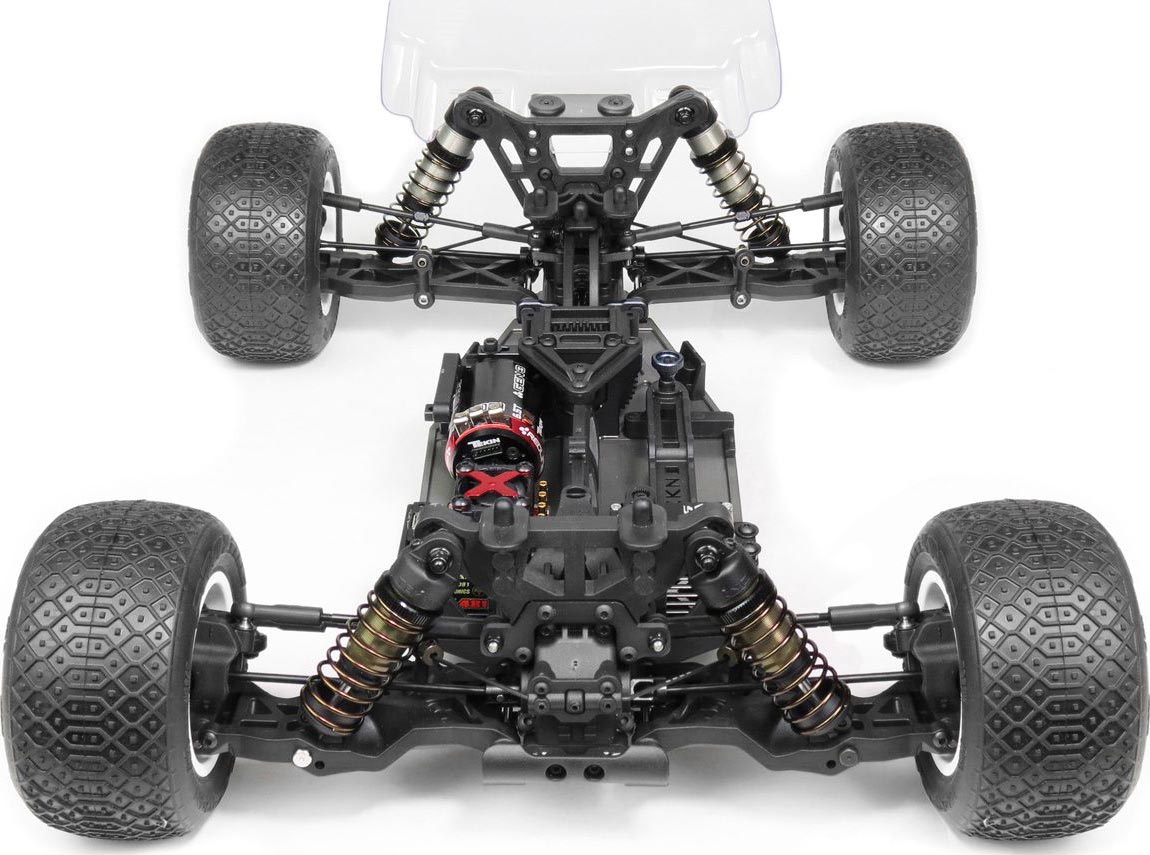

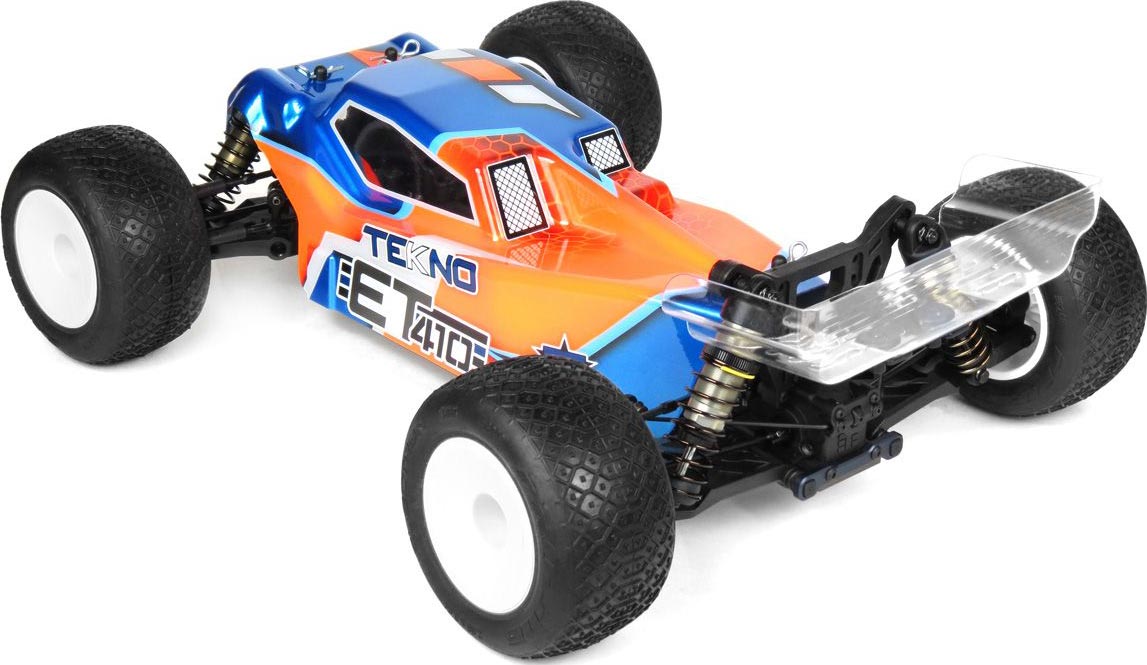

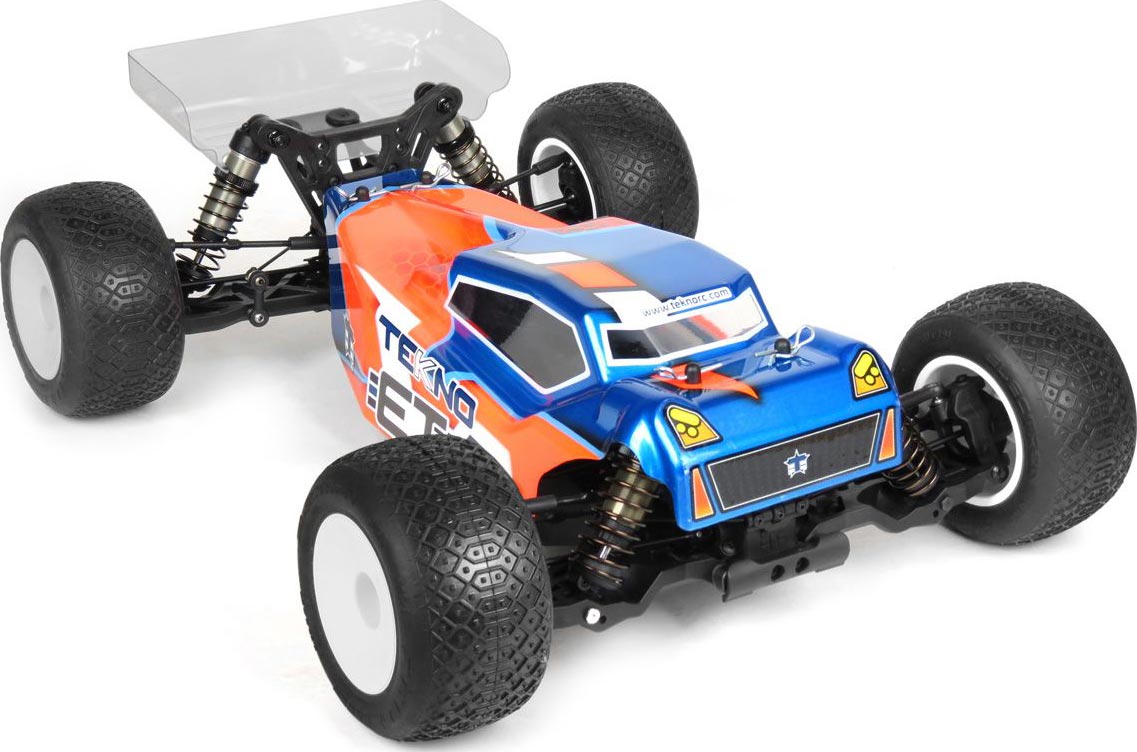

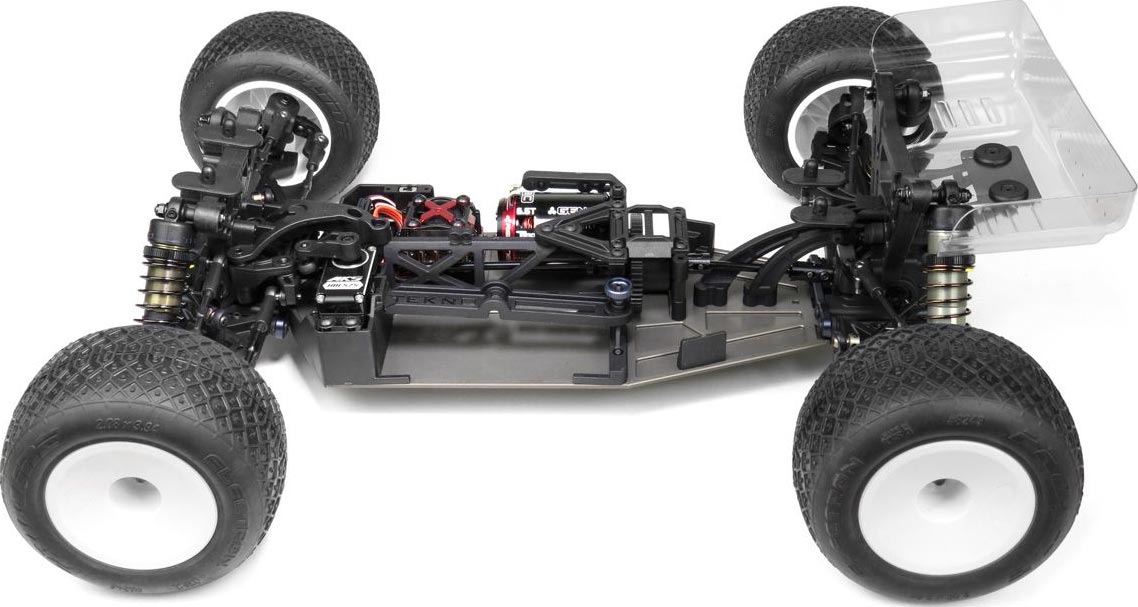

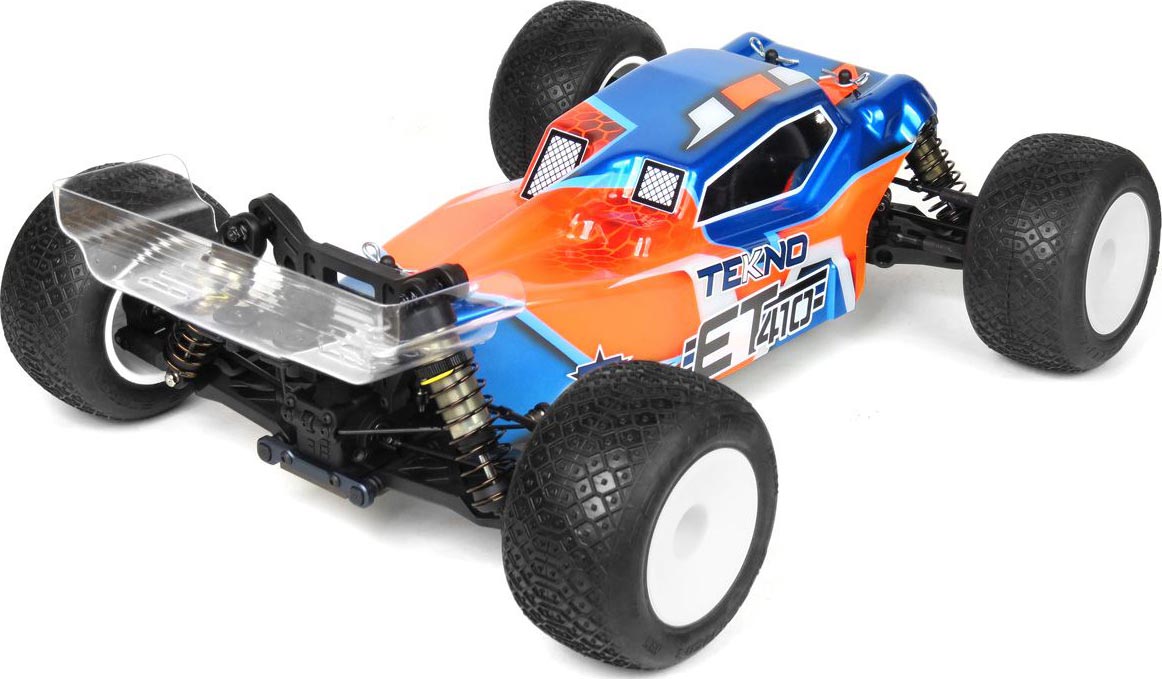

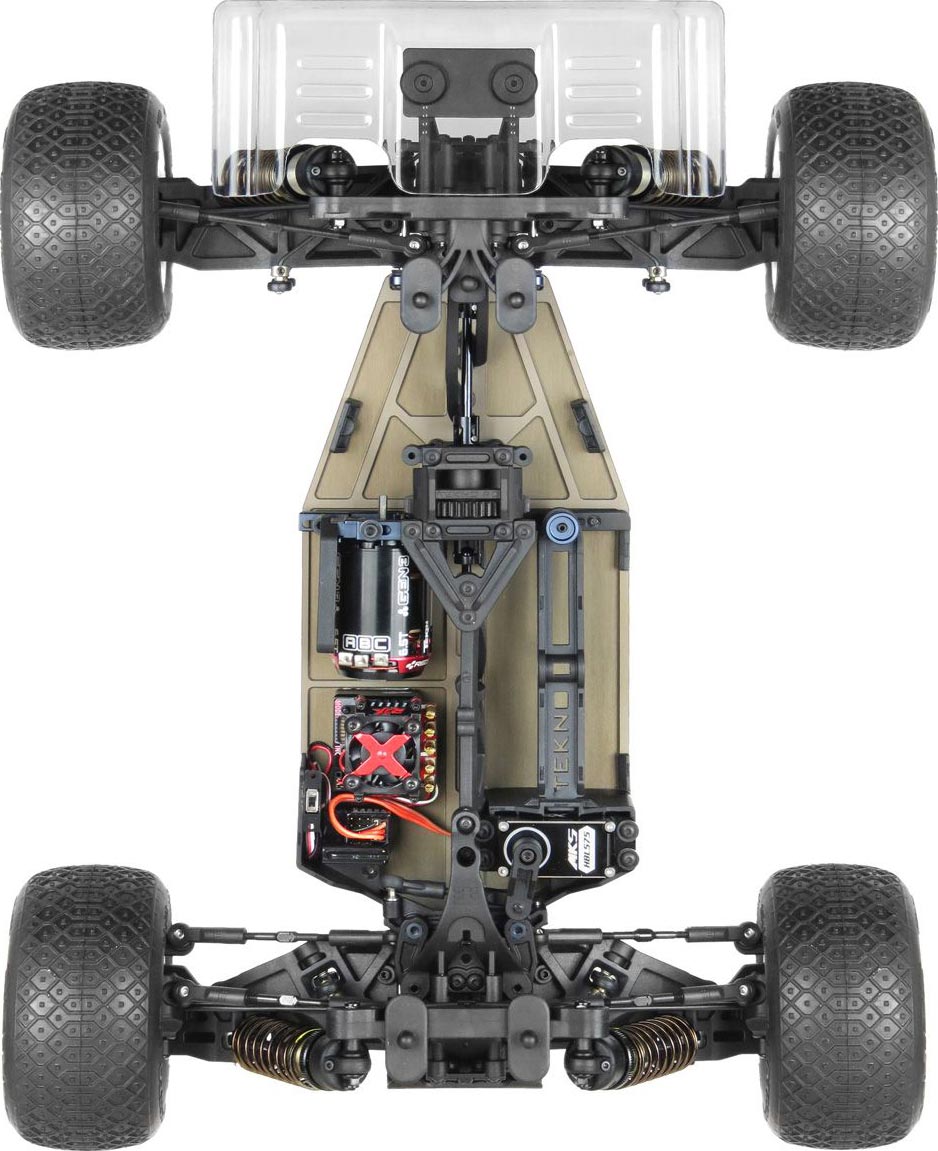

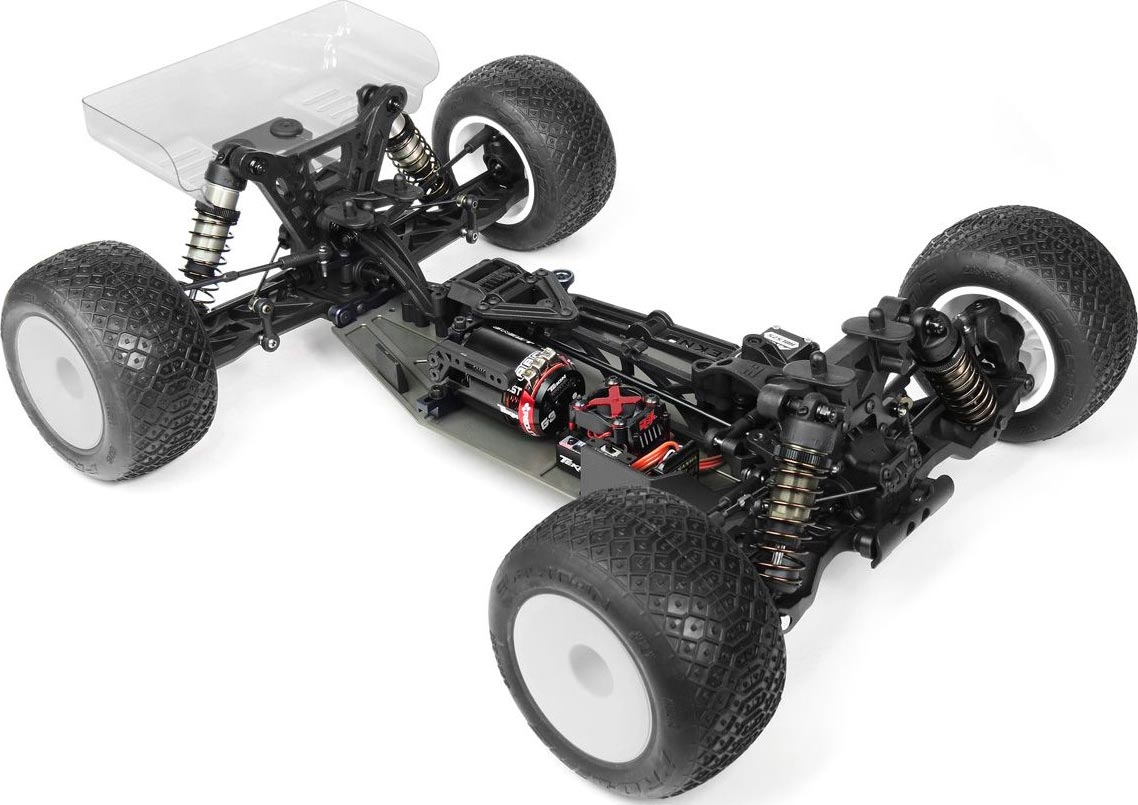

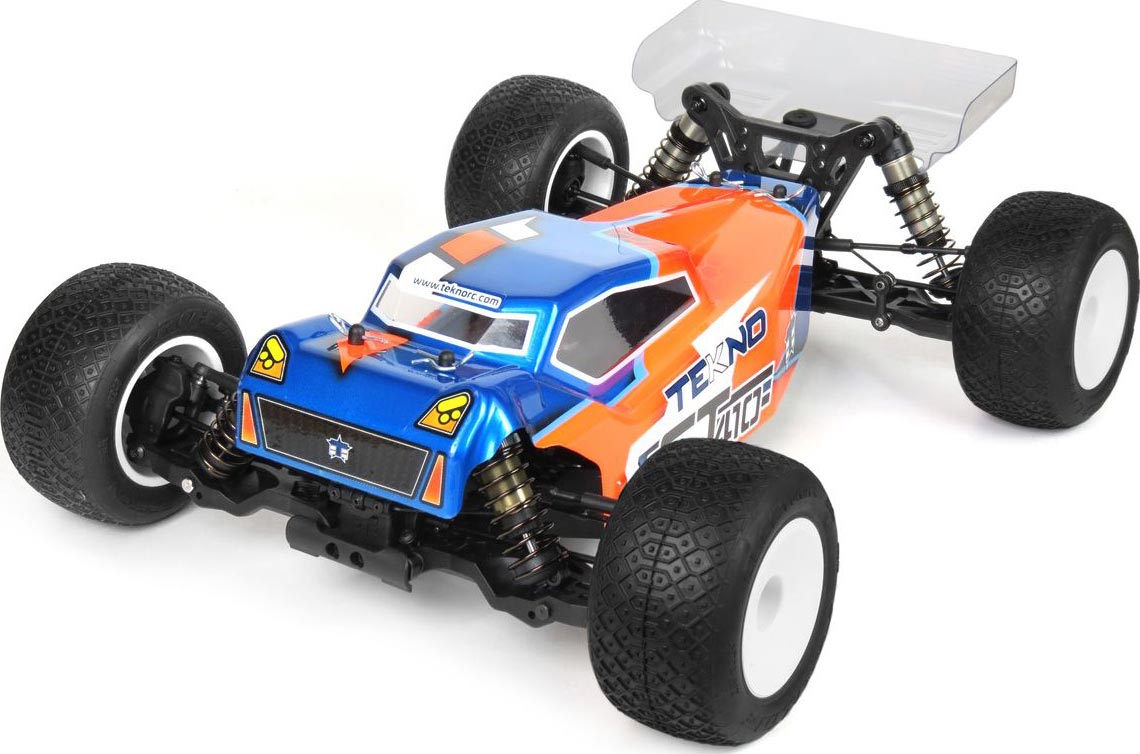

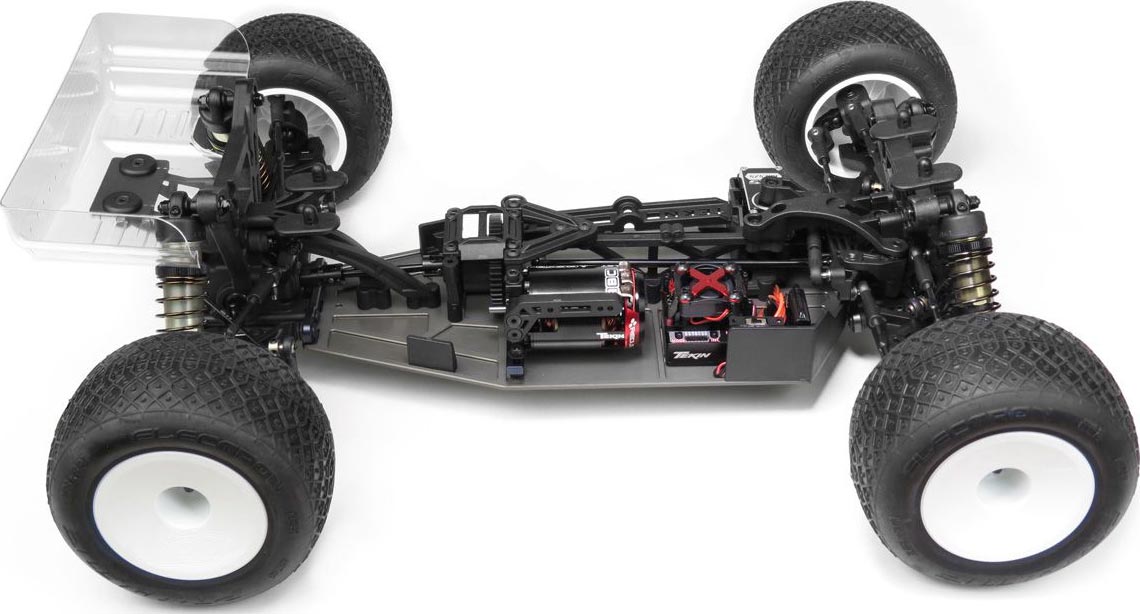

ET410 1/10s 4WD Competition Electric Truggy Kit
 |
|
|
Discontinued
|
click to enlarge
|
More like this... R/C Electric 4WD Monster Truck Kits
But only from... TEKNO RC
All items from... TEKNO RC
But only from... TEKNO RC
All items from... TEKNO RC
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
393 mm
Length:
322-330 mm
Width:
1850 - 2025 g
Weight:
283-294 mm
Wheelbase:
4WD With Center Diff
Drivetrain:
2/3 channel radio
Radio Requirements:
High torque steering servo (at least 200oz/in)
Servo Requirements:
40 size 6.5-8.5 turn or 540 size 4 pole 4000-4600kv motor
Motor Requirements (brushless):
2s shorty LiPo battery (at least 5000mAh).
Battery Requirements:
FEATURES
- 95% parts compatibility with the EB410 4WD 1/10th scale buggy.

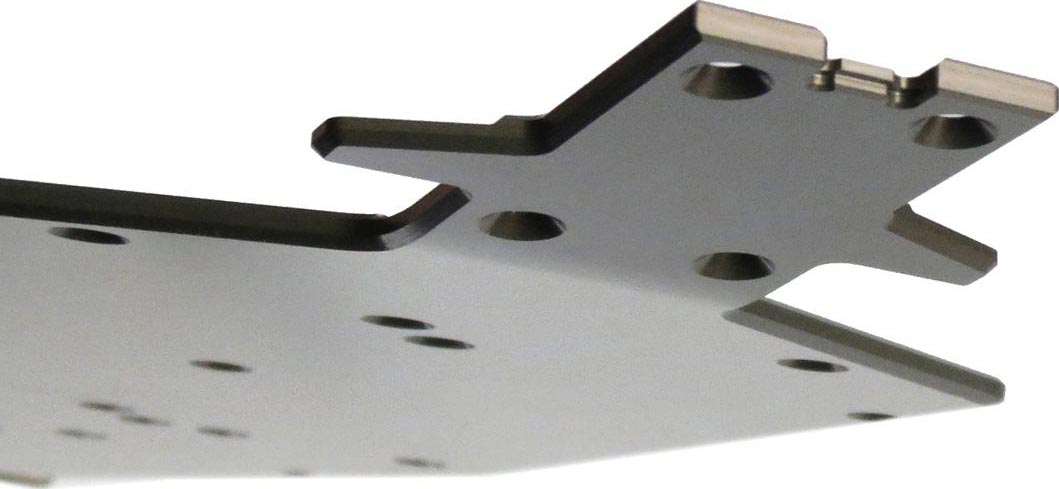

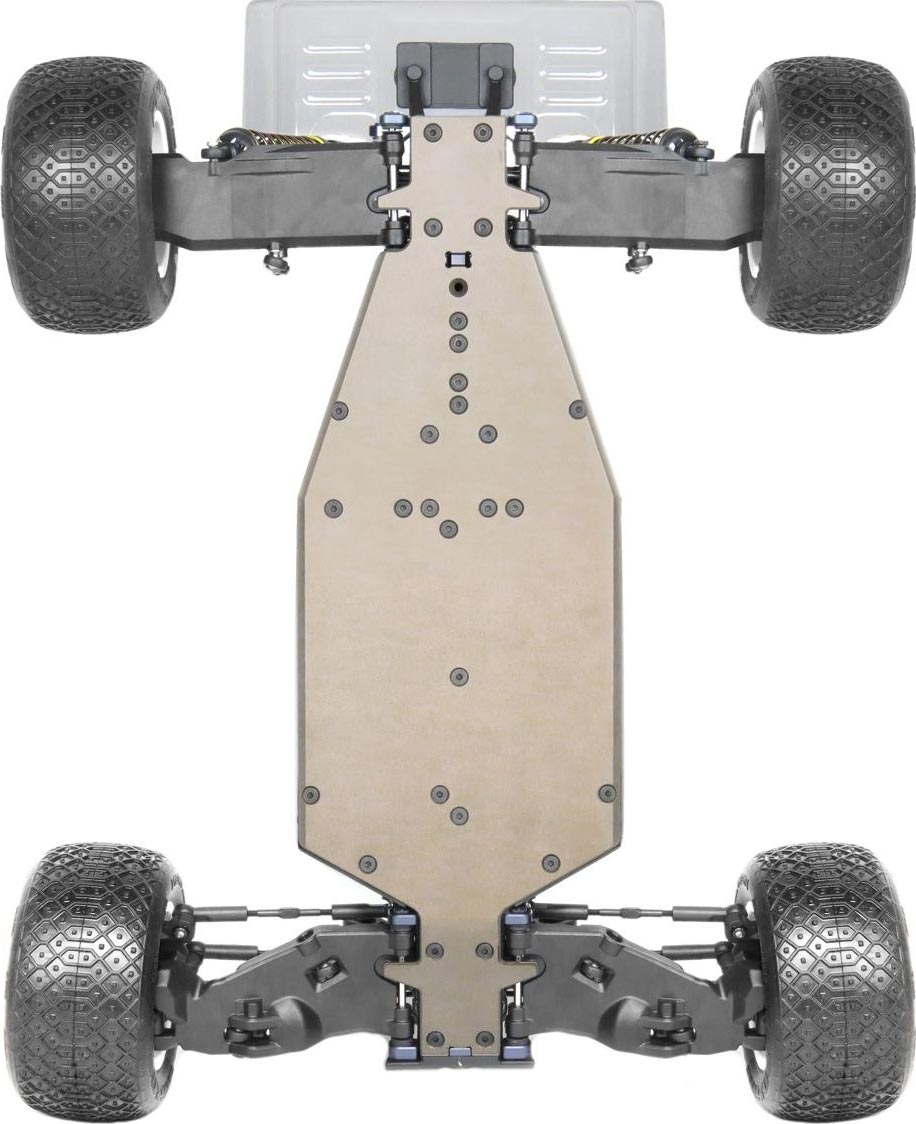

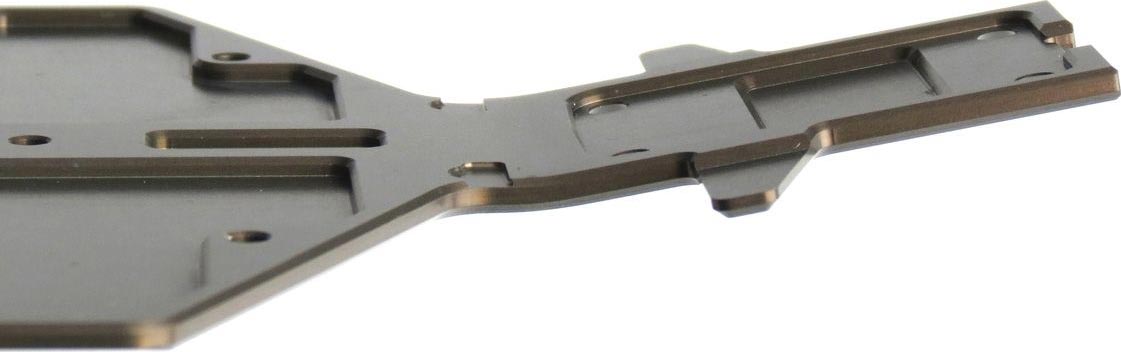

- Updated 3mm 7075 CNC chassis and revised A and B hinge pin braces.
- 13mm hard anodized threaded shocks with locking spring perches.

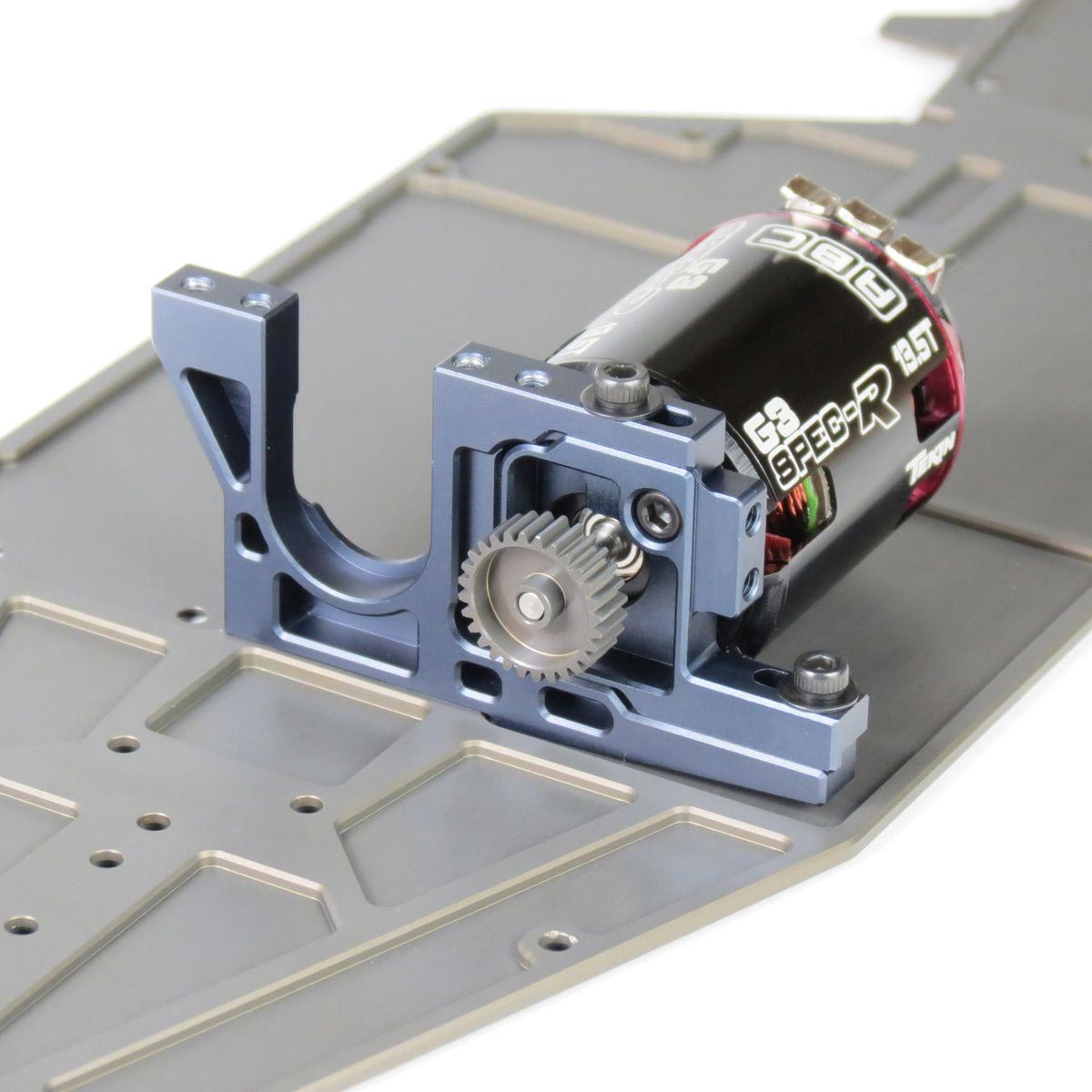

- New 32 pitch spur gear for ultimate durability
- 3.5mm shock shafts with revised dual guide x-ring cartridge.
- 7075 CNC machined adjustable hinge pin brace system.
- Three high volume fluid-filled adjustable differentials.
- Lightweight 7075 tapered center driveshafts.
- Quick access to differentials and maintenance friendly layout.
- Captured CVA front and rear driveshafts with heavy duty 6mm stub axles.
- Fully ball raced reverse bellcrank steering system.
- Uses 1/10th AE Offset Stadium Truck or Traxxas Slash Short Course offset wheels.
Required to complete:
- 2/3 channel radio/transmitter.
- 1/10 scale Buggy or Short Course ESC.
- 540 size 6.5-8.5 turn or 540 size 4 pole 4000-4600kv motor.
- High torque steering servo (at least 200oz/in).
- 32 pitch 15 to 19 tooth pinion.
- 2s shorty LiPo battery (at least 5000mAh).
- 1/10th scale Associated offset stadium truck OR Traxxas Slash SC offset wheels and tires.
- CA glue.
- Paint for the body.
