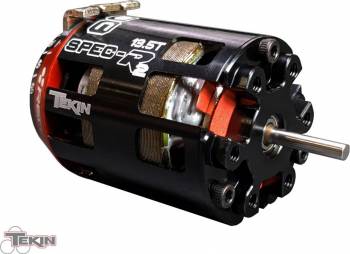

Gen4 Spec-R2 Pro Sensored Brushless Motor (13.5T)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushless
Brushed/Brushless:
Sensored
Sensored/Sensorless:
13.5 T
Turns:
2
Poles:
35.85 mm
Can Diameter:
50.25 mm
Can Length:
3.18 mm
Shaft Diameter:
152.2 g
Weight:
1-3 cells
LiPo Cells:
4.2-13.05 V
Max Voltage:
FEATURES
- 60 Degrees Adjustable Timing Advance
- SPEC Racing Specific Design
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- Neodymium Sintered Magnet
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity
- Sensored System Ready
- Anodized Endbell Plates Maximize Corrosion and Wear Resistance
- High RPM Precision Bearings
- Oversized Front Bearing
- Legal in Major Governing Race Bodies
- ROAR Approved
PRO - Hand picked stator, hand picked sensor board and includes TT2782 12.5mm SILVER rotor. Setup critical, SILVER rotors are a special extra strong material and can be damaged by excessive heat from over-gearing and over-timing.
Tekin’s SPEC-R2 brings next-level performance to SPEC racing classes. Improving on the original SPEC-R design, we revamped and refined the stator, rotor and materials used to increase both speed and torque while providing minimal fade during the late stages of the race. The SPEC-R2 is a hand-crafted, high-performance racing motor that is ready to hit the track right out of the box.
