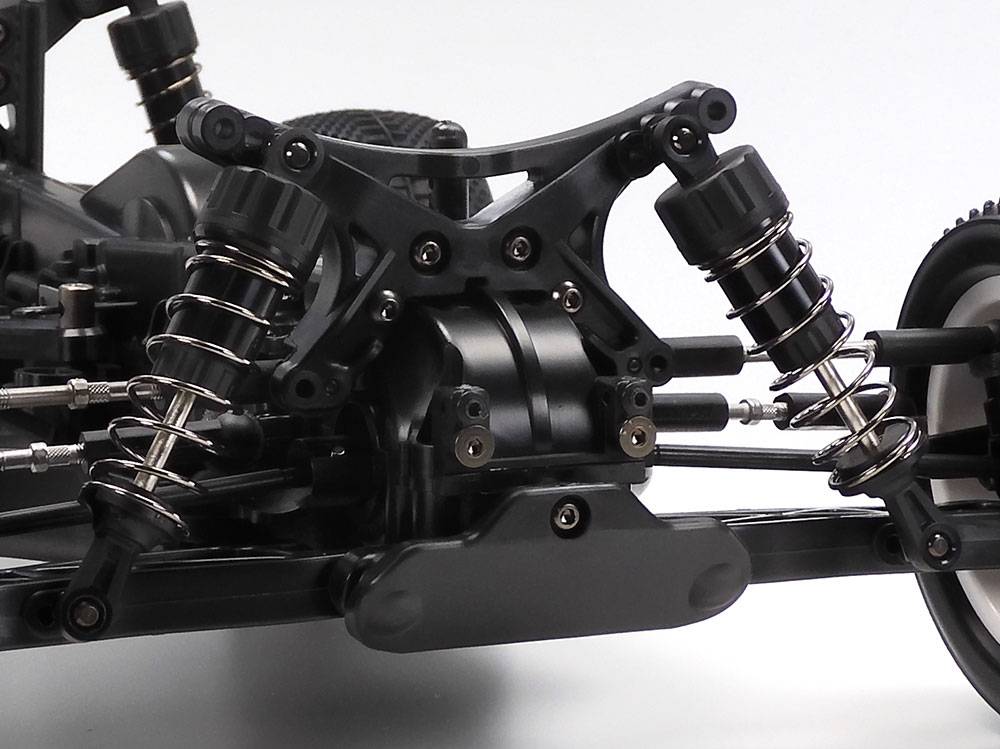

The gear differentials (from Item 54329 DB01 Gear Differential Unit) feature steel bevel gears (from Item 54428 Steel Bevel Gears for TA06 Gear Differential Unit) which need less maintenance and are compatible with high-power motors.
Front and rear universal shafts ensure efficient drive and minimal maintenance.

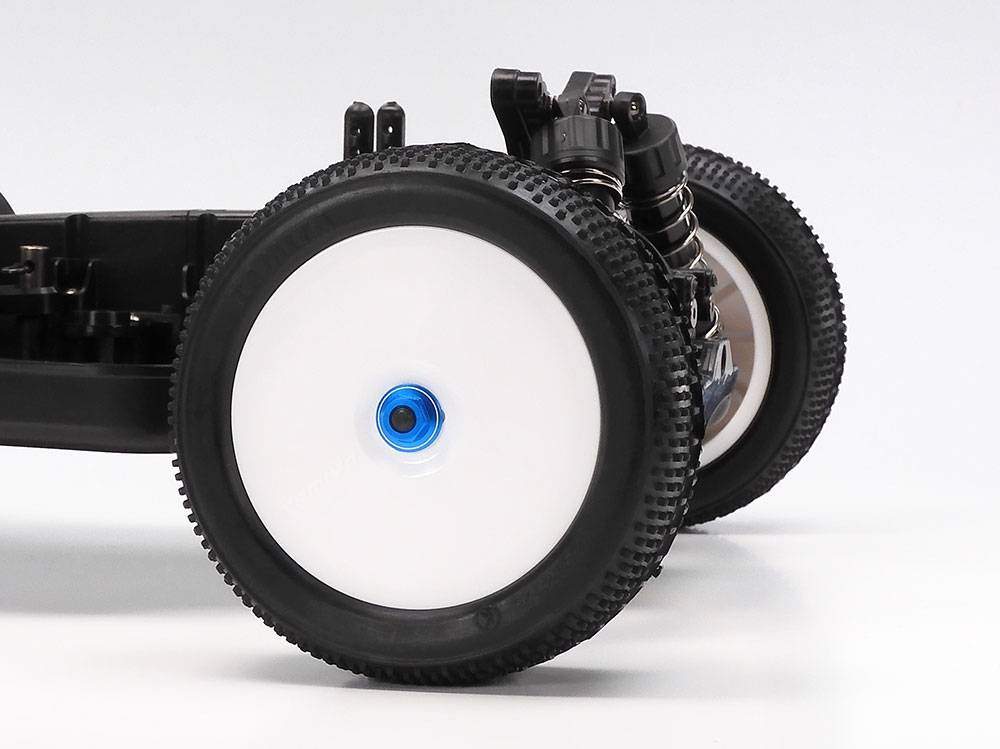

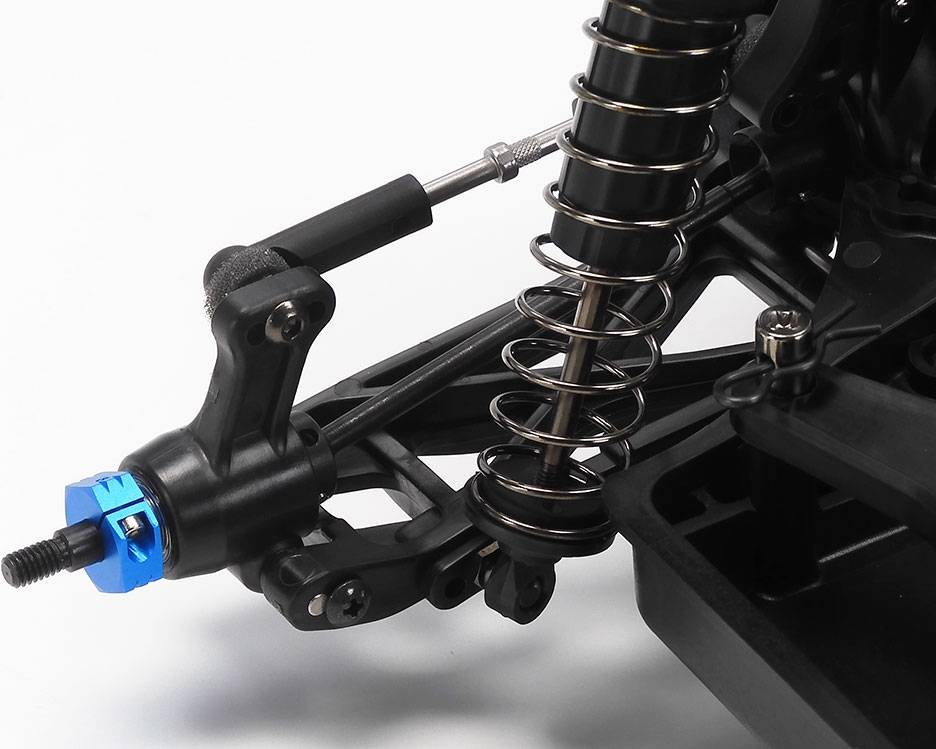

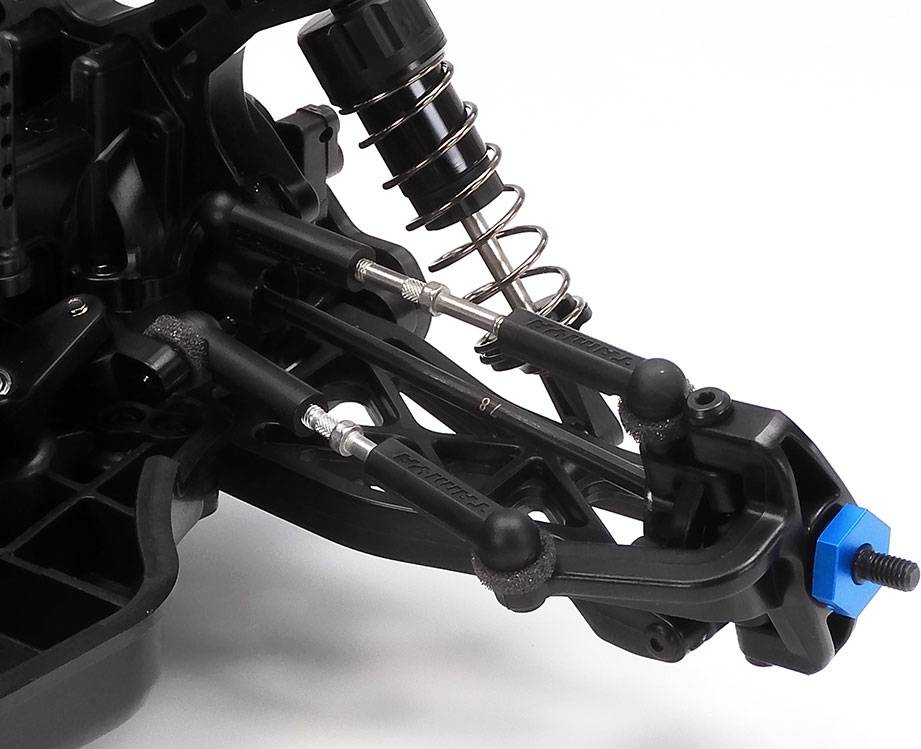

Front and rear hex-hubs allow a wide choice of wheels and tires.

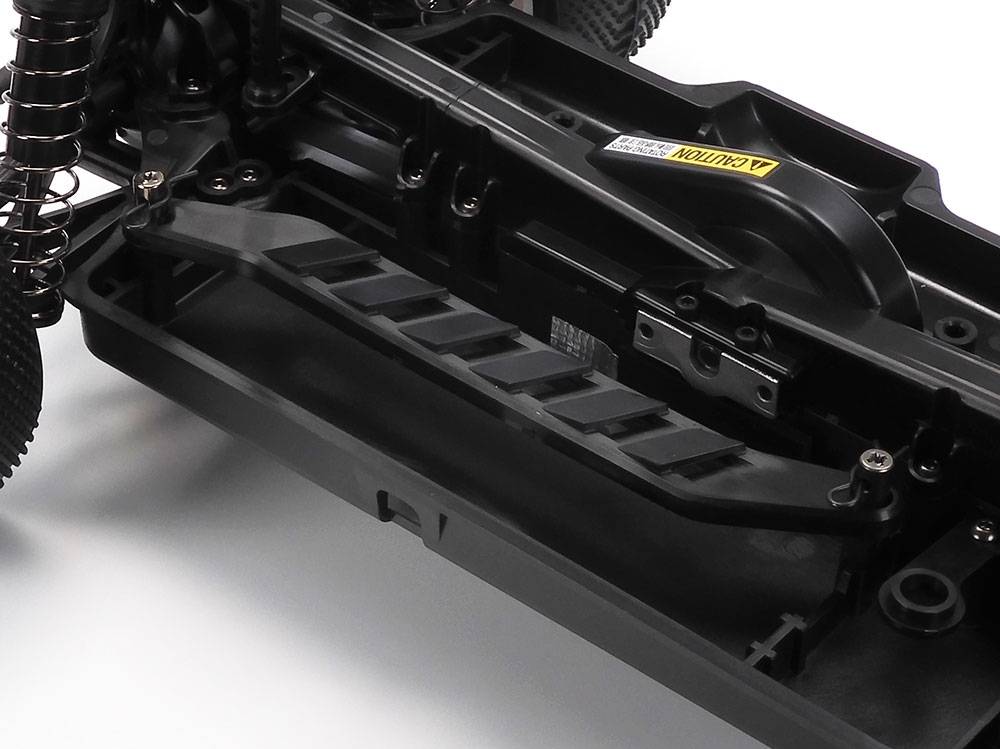

Battery section of the chassis can accept square-shaped battery packs.

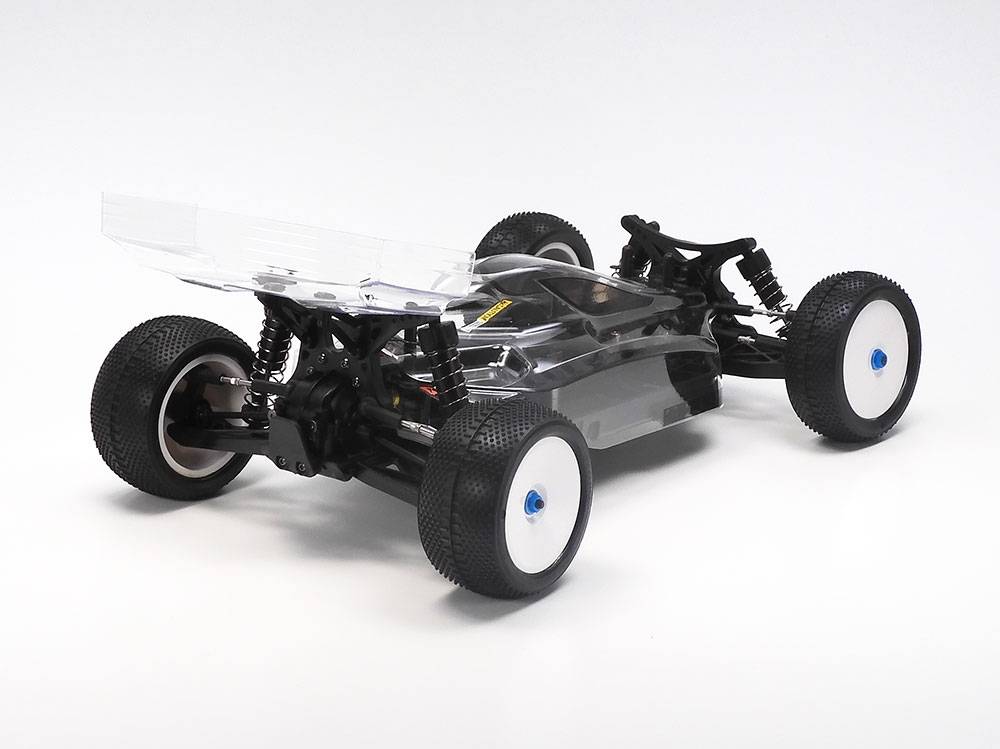

Dedicated livery stickers, masking stickers for the window and Baldre body included. NOTE: Original Baldre body stickers are not included.
Box packaging can be used as a carrying case.
Required to complete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.
Includes:
Item 54015 DB01 Assembly Universal Shaft (Front)
Item 54016 DB01 Assembly Universal Shaft (Rear)
Item 54668 4WD Buggy Aluminum Hex Hubs (Front)
Item 54669 Buggy Aluminum Hex Hubs (Rear)
Item 51580 4WD Buggy Front Dish Wheels (Hex Hub)
Item 51581 Buggy Rear Dish Wheels (Hex Hub)

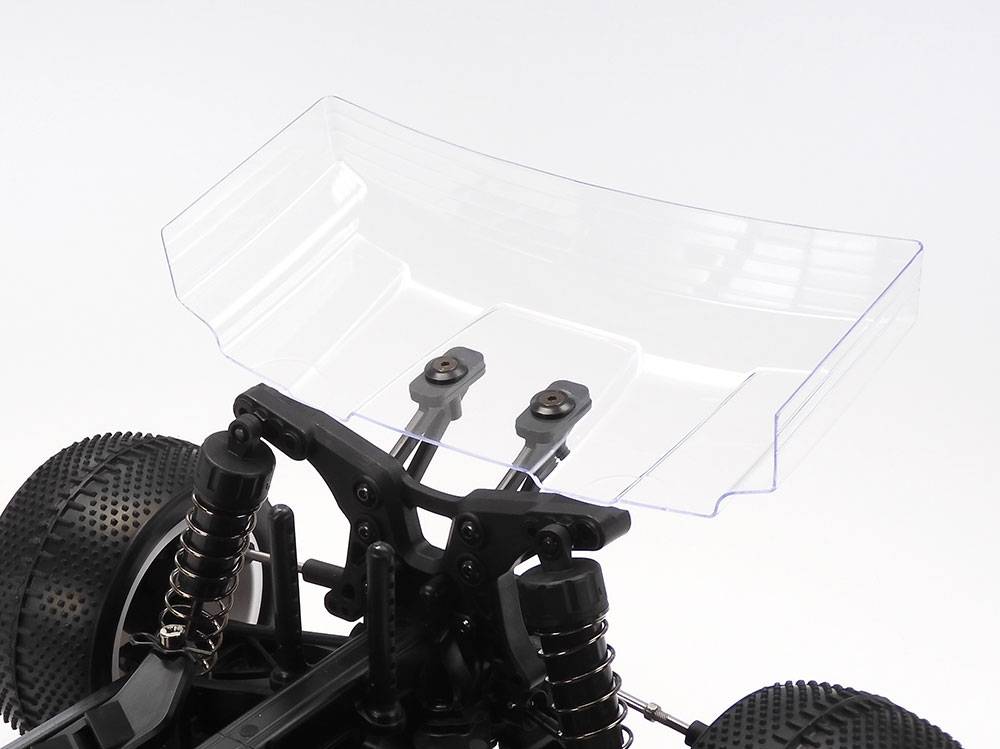

Item 54211 TRF201 Rear Wing Set
Item 54140 DB01 Reinforced Drive Belt x2 sets.

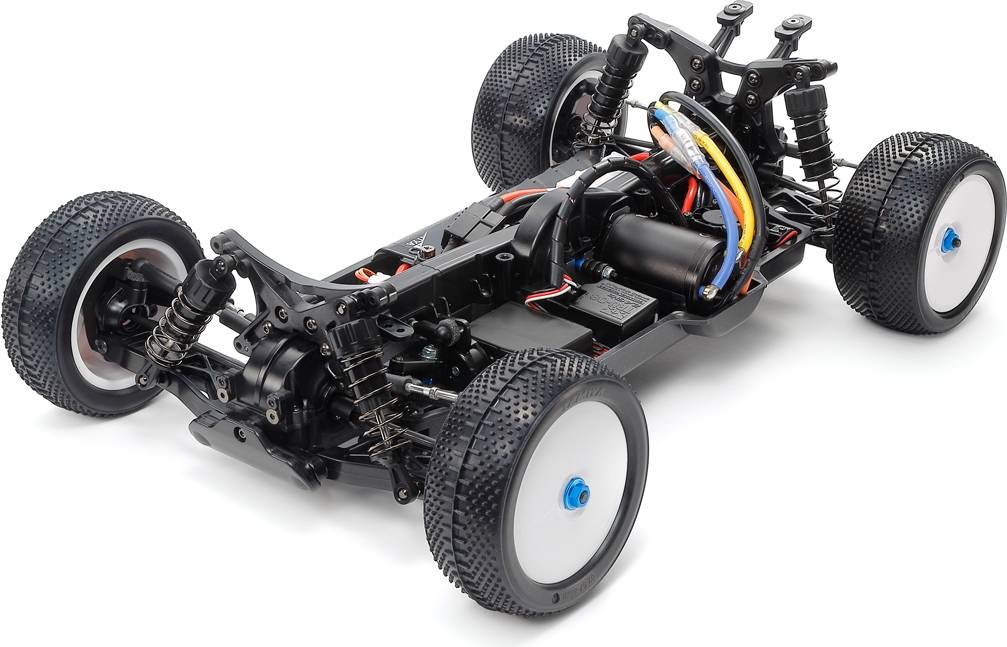

This radio control chassis kit creates a 2 belt-driven 4WD buggy with identical length belts for optimal power transfer balance. The kit includes a wide selection of Hop-Up Option parts for great off-road performance and enhanced durability! Furthermore, the kit includes the Baldre body (Item 51338) for a sleek off-road appearance!

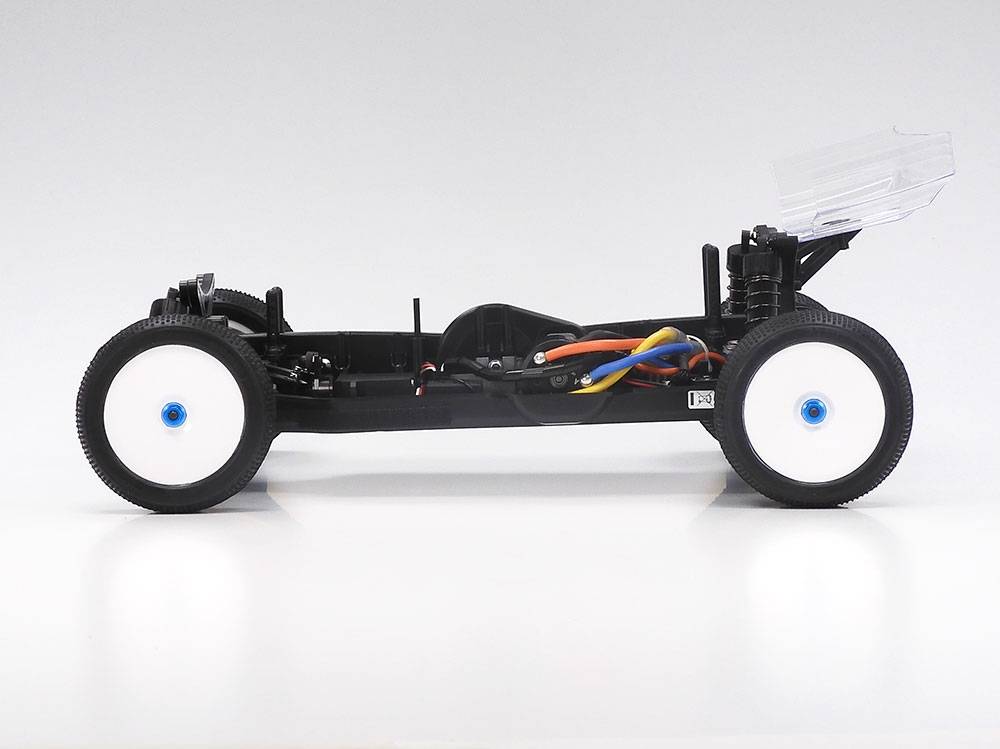

4WD 2 Part Belt-Drive DB01SR Chassis

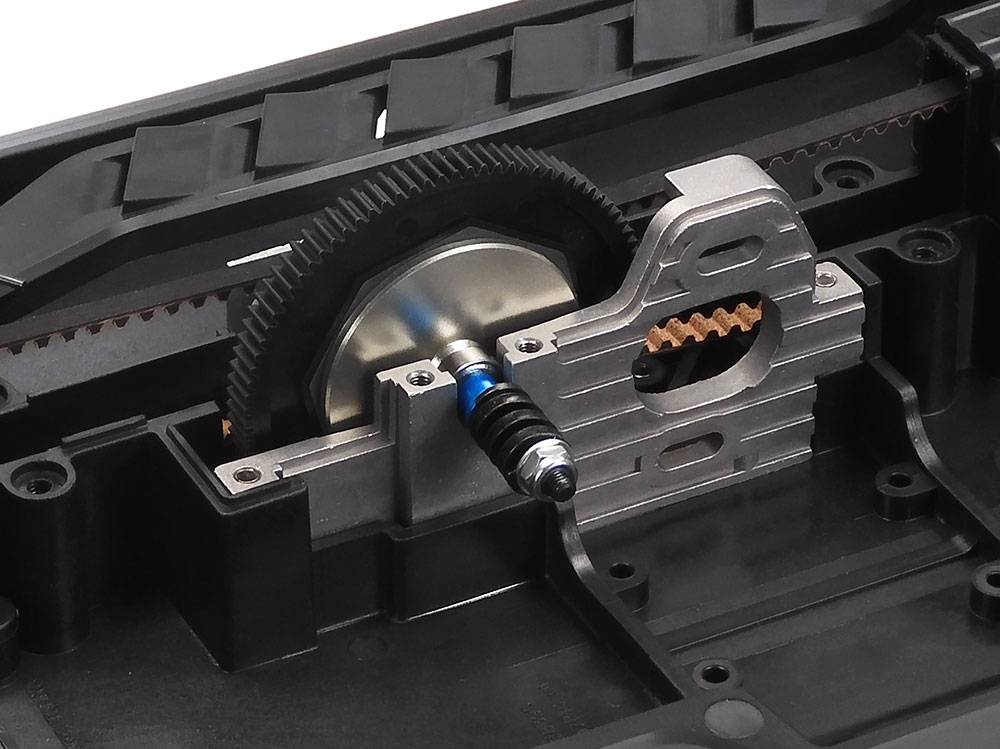

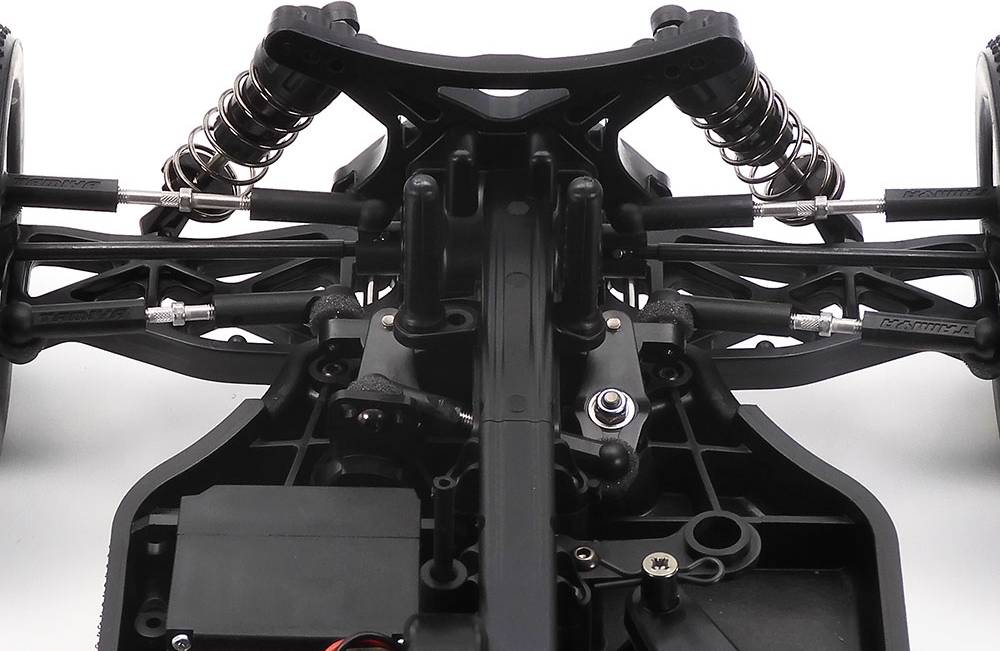

The DB01's 4WD system features a centrally located spur gear driving two belts. Both the spur gear and drive belts are protected by plastic covers that prevent dirt and debris from interfering with the drivetrain. Front and rear bulkheads are integrated with the chassis, simplifying construction and maintenance. To ensure the chassis can manage the stresses of off-road racing, it is made from fiberglass-reinforced nylon material for greater strength. Furthermore, the underside of the chassis is completely flat, enabling excellent skid characteristics.
