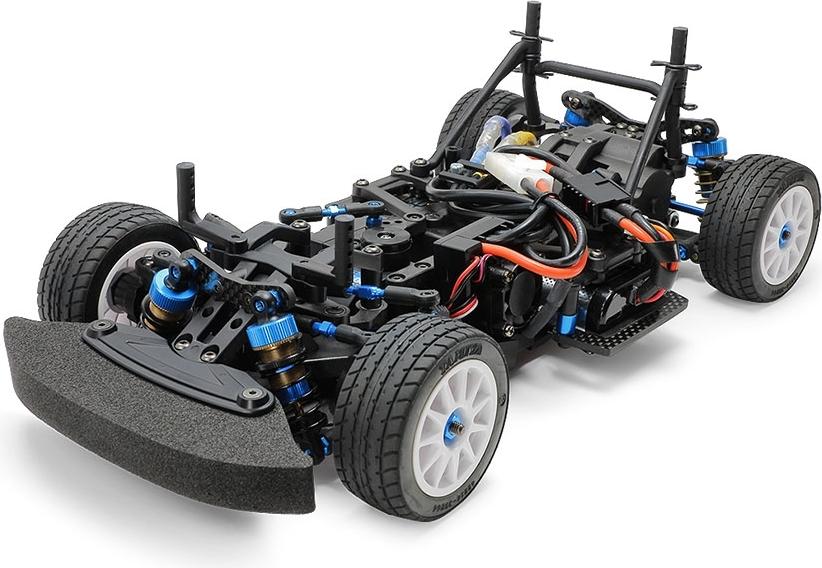

1/10 M-08R Chassis Kit
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
But only from... TAMIYA
All items from... TAMIYA
- Length: 319mm (with 225mm wheelbase), width: 165mm
- Alterable wheelbase: 210mm, 225mm, 239mm
- Monocoque frame with separate front and rear sections
- Midship motor, rear-wheel drive
- Ball differential
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- M-Chassis big bore aluminum dampers+
- Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
- Electronic speed controller (ESC) is sold separately.

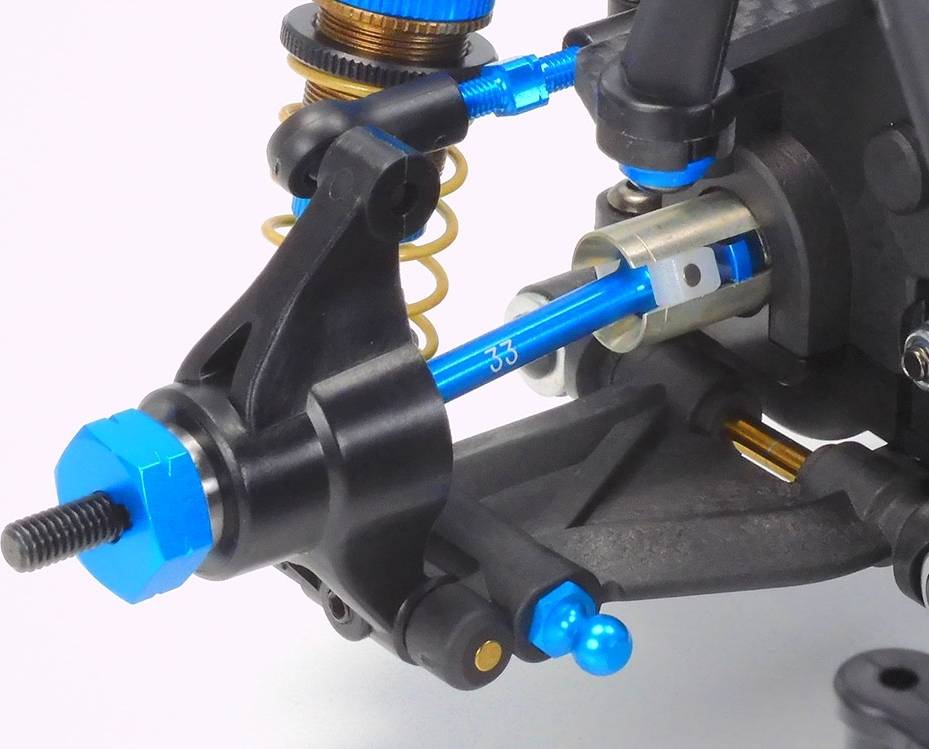

RWD Racer M-08R adds a slew of race-spec parts to this balanced compact chassis. Features include a components Drivetrain, full ball bearings, ball differential (52T), 33mm lightweight aluminum swing shafts, cross joint for LF assembly type universal shafts, 06 module fluorine coated 20T pinion gear, M-08 Concept aluminum shafts, M-Chassis reinforced freewheel axles and 5mm clamp-type wheel hubs,

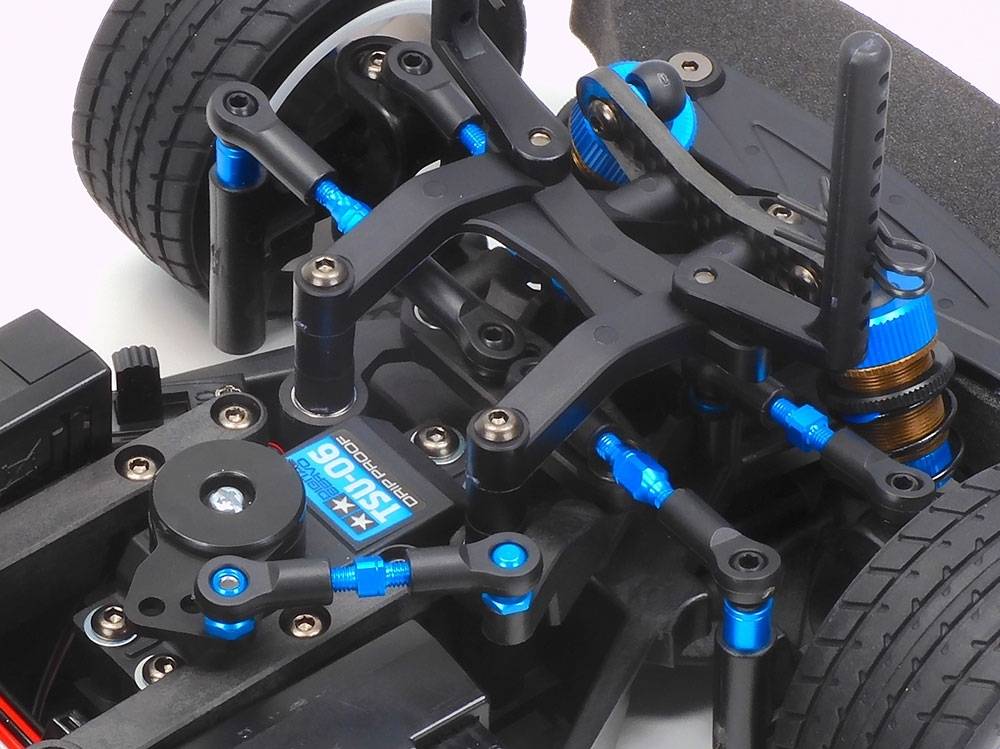

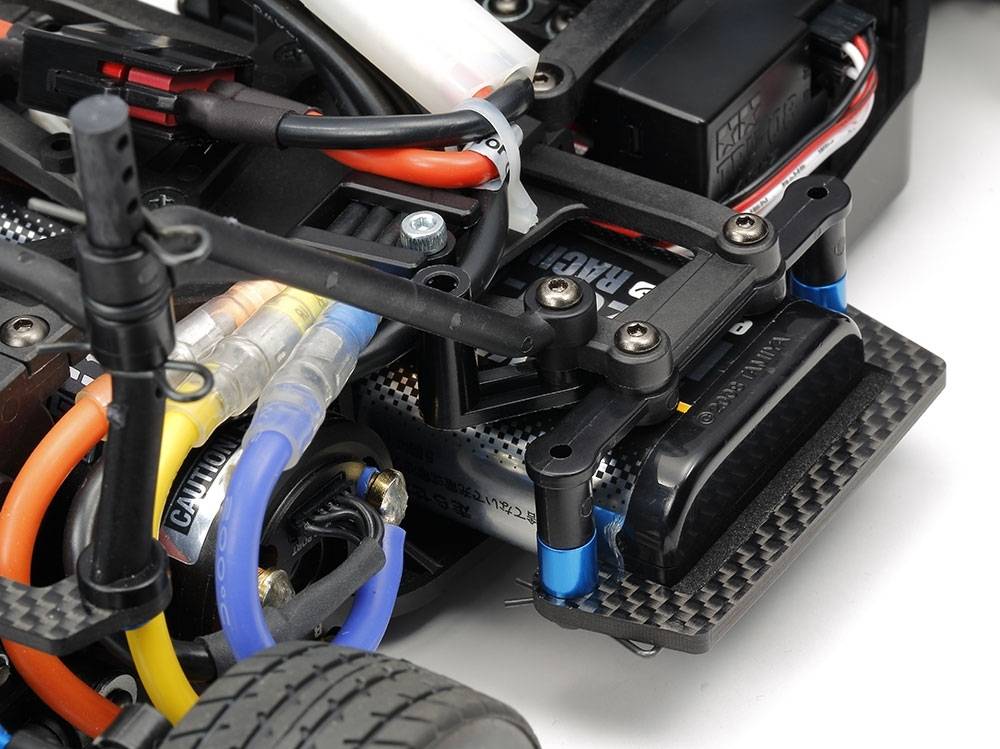

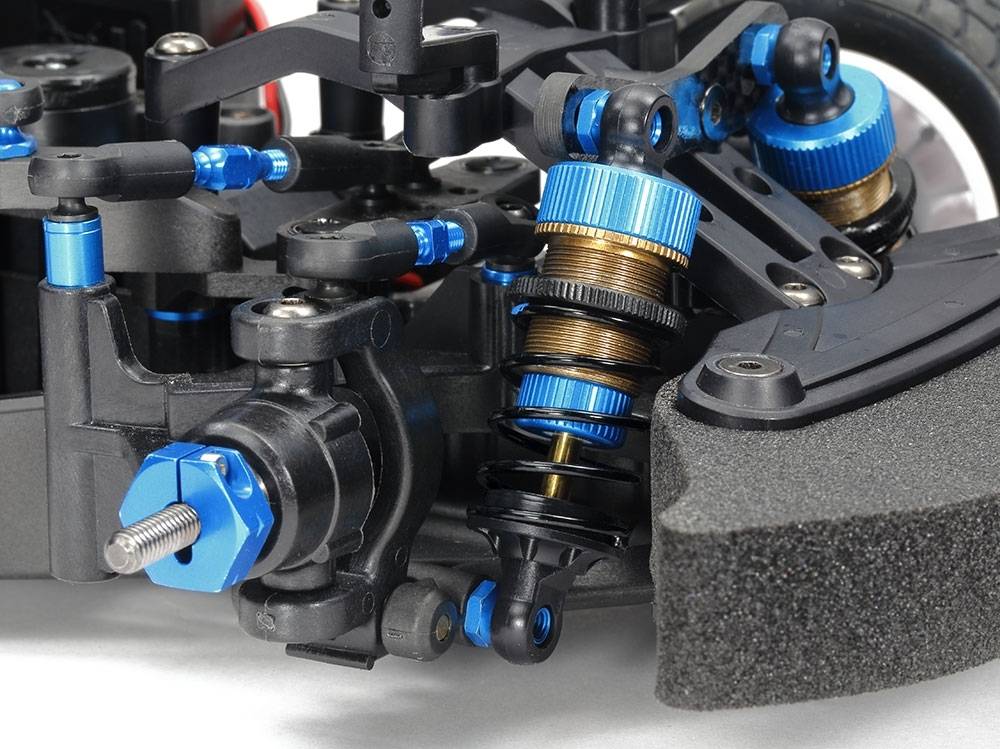

The suspension features carbon fiber damper stays (front/rear), reinforced D parts (suspension arms), aluminum turnbuckle shafts, titanium coated suspension shafts, 5x5mm, 5x11mm hard hex head ball connectors, M-Chassis big bore aluminum dampers+, 3x 1.3mm-hole pistons, 4mm aluminum serrated wheel nuts (blue) and 5mm reinforced open face adjusters. The chassis features carbon fiber battery holder, carbon fiber body mount base, reinforced K parts (gearbox), chassis balance weight (20g), hi-torque servo saver, aluminum ball connectors (blue) and Hex head screws.
|
|
|
|
|
|
|
|
