Servo - 1/8 High Torque Race
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
23 Tooth
Output Spline:
82 mm
Length:
21 mm
Width:
26 mm
Height:
Metal
Geartrain:
6.0 - 8.4 v
Voltage Range:
35.7 kg-cm (496 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
FEATURES
- Stylish all black anodized metal case
- Powerful Coreless motor
- High Voltage HV Capable (6.0v-8.4v)
- 23T output Spline
- Hardened steel gears
- Precision engineered gear train for tight and low wear mesh
- Impressive transit speed (0.10sec at 8.4v)
- Class-leading torque (35.7kg-cm / 496oz-in at 8.4v)
- Excellent steering servo option for 1/8th Scale Racers, RC Crawlers and Scalers

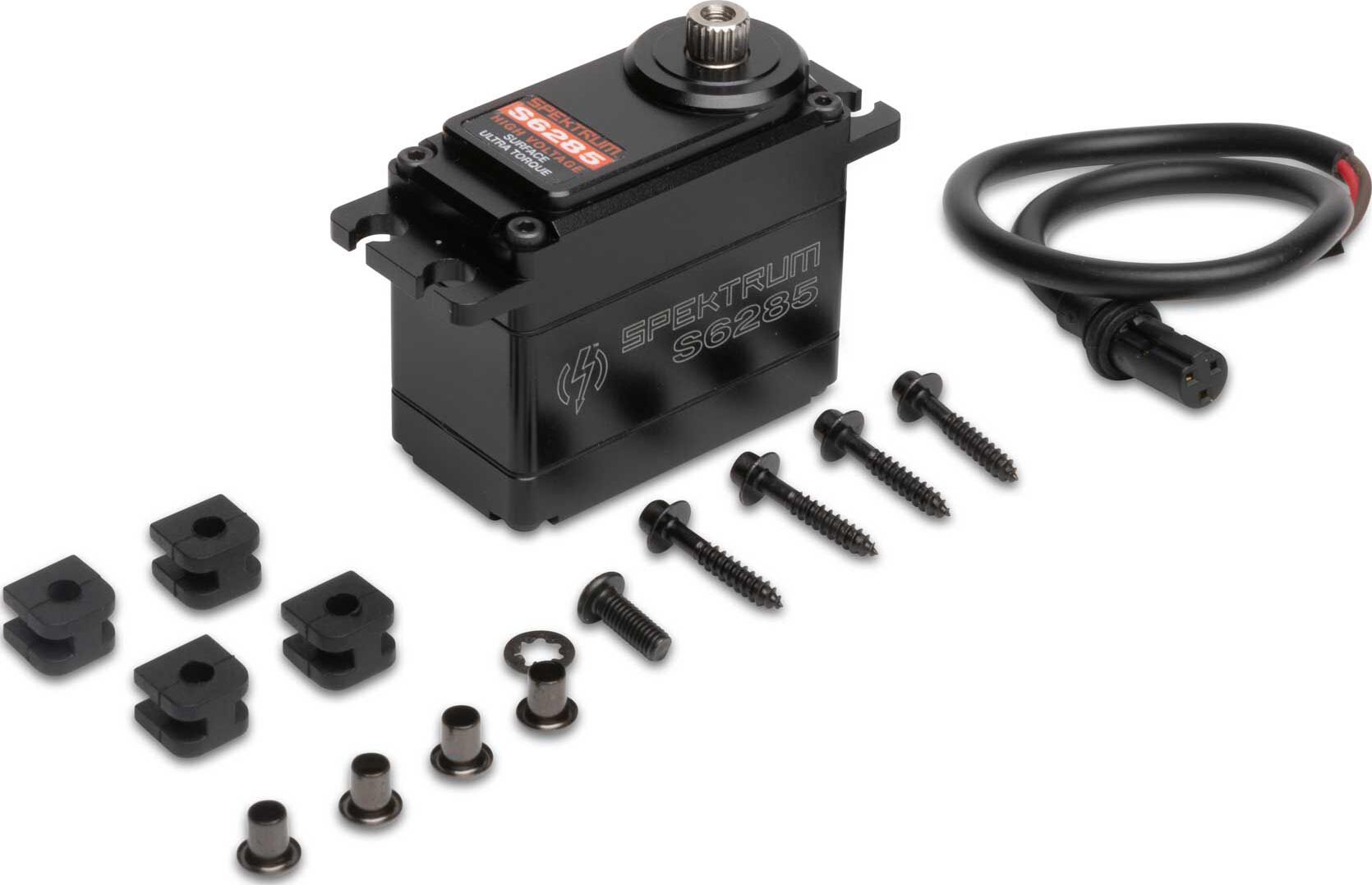

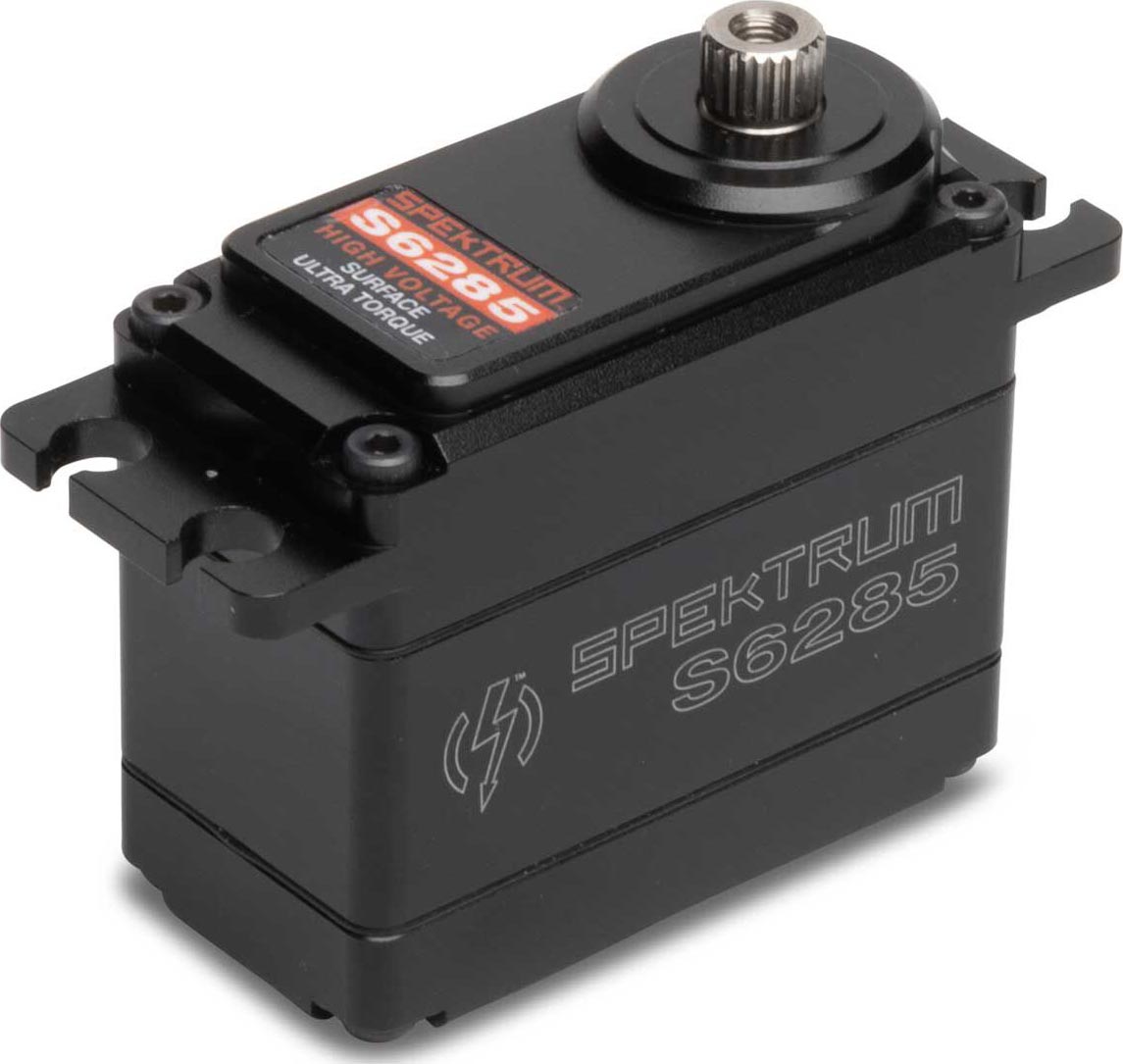

Spektrum high-voltage servos deliver premium power, precision, and performance. The S6285 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Producing 496oz-in of torque at 8.4v, the S6285 is servo of choice for 1/8 off road applications. Equally capable of high-performance operation in crawling and bashing applications that demand maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
605482178409 0605482178409
SPMSS6285
