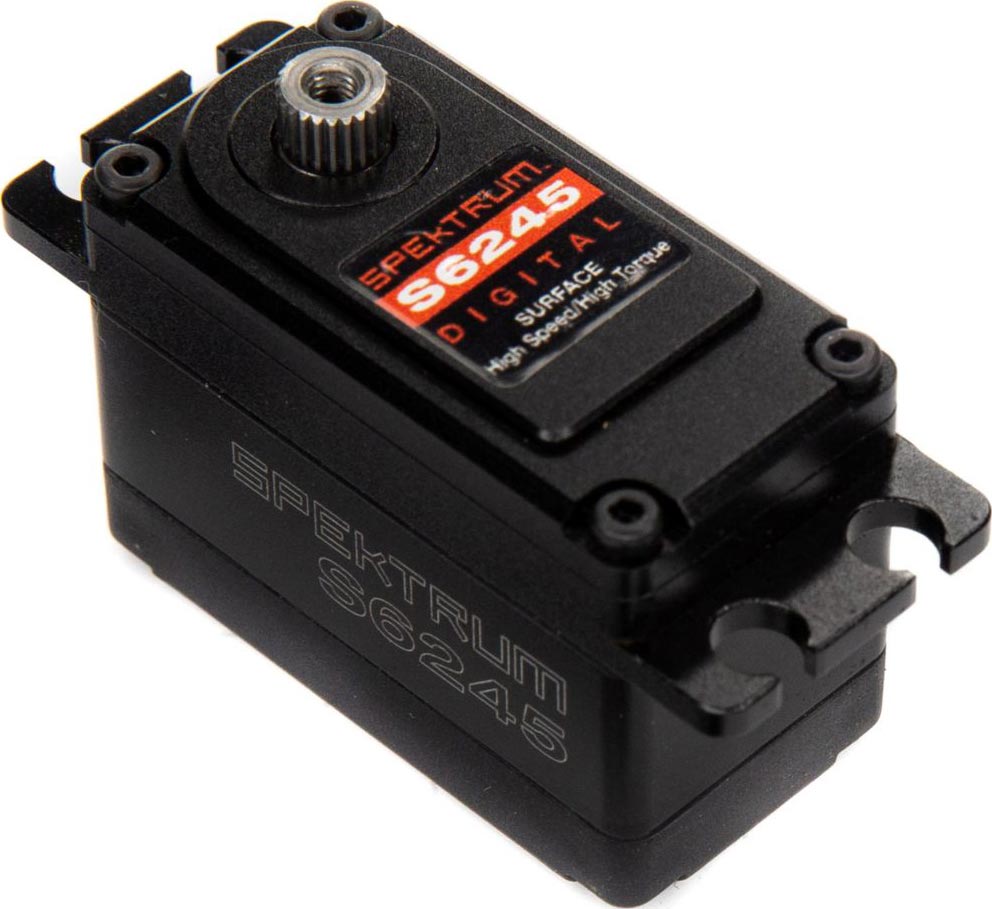

S6245 High Speed/Torque Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
6245 1/10
Type:
Surface
Application:
Bearing
Bearing/Bushing:
Dual
Bearing:
23 Tooth
Output Spline:
41 mm
Length:
20.8 mm
Width:
30 mm
Height:
62.37 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
6.0 - 7.4 v
Voltage Range:
14.8 kg-cm (206oz-in)
Torque @ 6.0V:
206 sec/60°
Speed @ 6.0V:
19.2 kg-cm (266 oz-in)
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
FEATURES
- Stylish stealth black and silver anodized aluminum case
- Aluminum case provides great heat dissipation
- High Voltage HV compatible (7.4V/2S Max)
- Improved torque and speed*

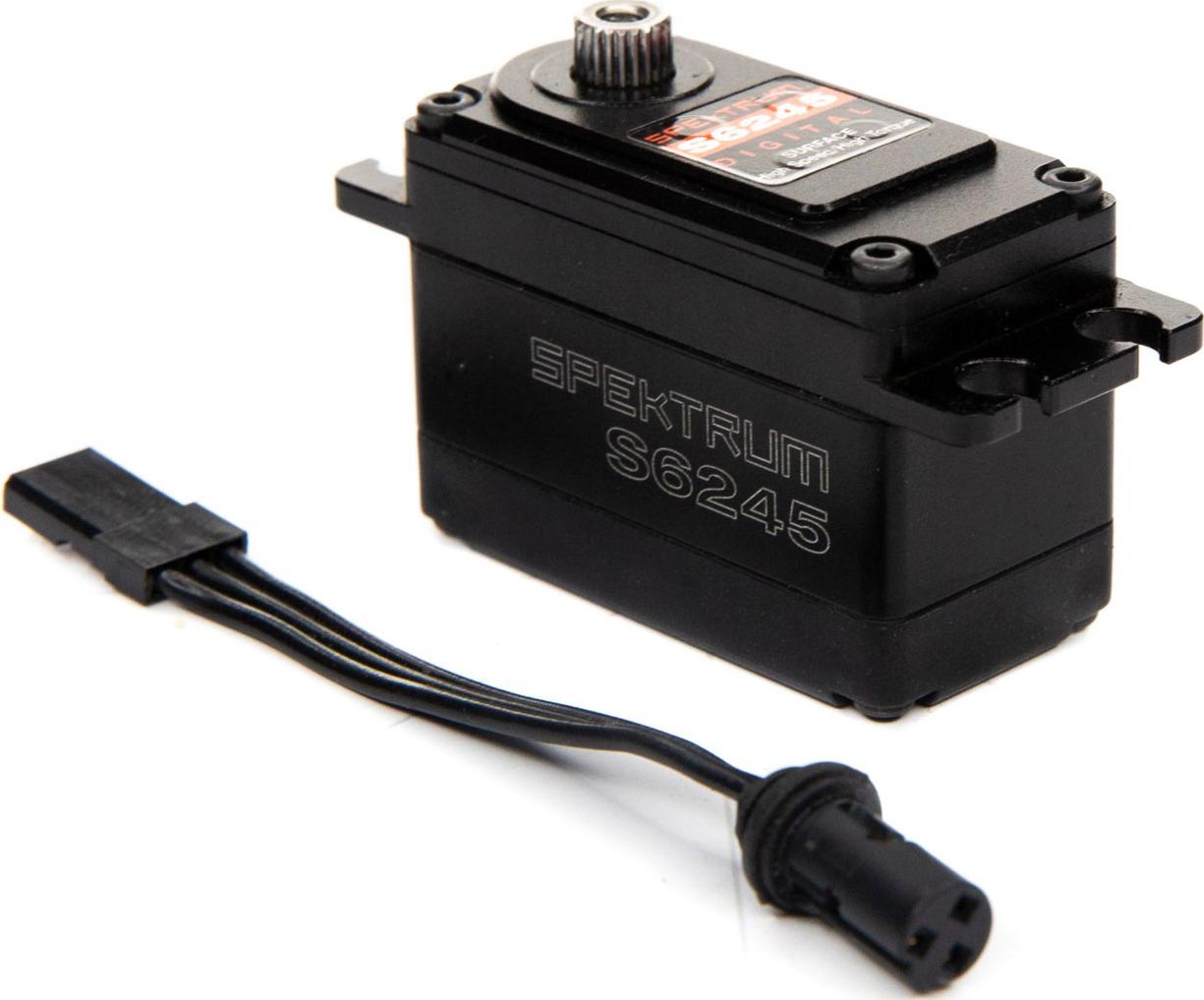

- Removable wire harness with different lengths available
- Improved gear design for added durability
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Includes 2 inch extension for easy minimum wire installs
- Robust aluminum mounting tabs
- NMB dual main output shaft bearings
- 23T output shaft
- Waterproof
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
SPMSS6245
