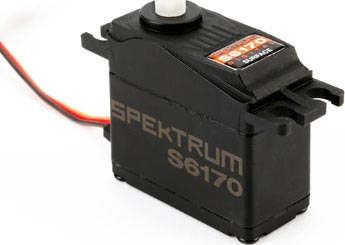

S6170 Standard Digital Surface Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
1/10 scale 2WD vehicles
Application:
Universal Servo
Connector Type:
Single Bearing
Bearing/Bushing:
38.4 mm
Length:
18.5 mm
Width:
34.5 mm
Height:
Nylon
Geartrain:
Brushed
Motor Type:
4.8 - 6.0 v
Voltage Range:
5.0 kg-cm (70 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
5.8 kg-cm (80 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
32 g
Weight:
23 Tooth
Output Spline:
FEATURES
- 80 oz.-in. torque at 6.0V-perfect for most 1/10 2WD vehicles
- Long lead for use in bigger chassis such as some short course trucks so servo can be installed without a servo extension
- .14 sec/60 degrees provides a quick response as a steering or throttle servo
- Waterproof case design protects electronic components
