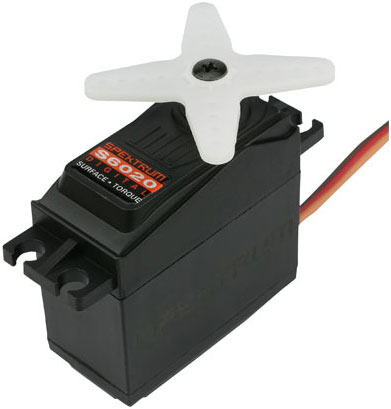

Digital Surface Servo - Torque
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
1/10- and 1/8-scale vehicles
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
41 mm
Length:
20 mm
Width:
39 mm
Height:
49 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
4.8 or 6.0 v
Voltage Range:
7.2 kg-cm (100 oz-in)
Torque @ 4.8V:
0.23 sec/60°
Speed @ 4.8V:
10.5 kg-cm (146 oz-in)
Torque @ 6.0V:
0.19 sec/60°
Speed @ 6.0V:
FEATURES
- 146 oz-in torque at 6V affords impressive performance in the toughest applications
- Precise digital control
- Dual ball bearings provide less resistance for higher performance and longer life
- Heavy-duty metal gear train
The heavy-duty, metal-gear S6020 servo puts out an impressive 146 oz-in of torque making it ideal for 1/10-scale trucks and cars. And it delivers this torque with silky smooth precision thanks to its dual ball-bearing output shaft.
