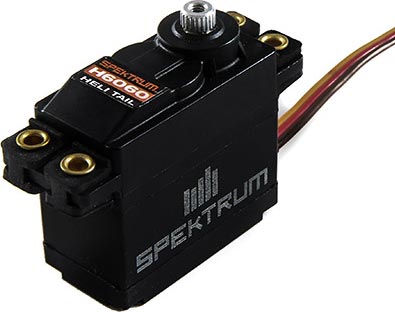

H6060 Mid-Torque Ultra-Speed Heli Tail Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Heli Tail
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
39.9 mm
Length:
19.8 mm
Width:
39.9 mm
Height:
62 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
4.8-6.0 v
Voltage Range:
6.2 kg-cm (86 oz-in)
Torque @ 6.0V:
0.056 sec/60°
Speed @ 6.0V:
23 Tooth
Output Spline:
FEATURES
- Standard size servo for 500 size Helicopter models and smaller
- 86oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
