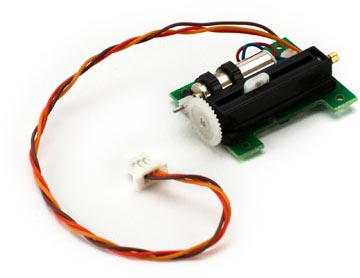

2.9g Linear Long Throw Servo JST-SHR
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
0.13 seconds
Speed @ 3.7V:
11.6
Torque @ 3.7V:
Analog
Type:
Ultra-micro helicopter, cyclic
Application:
JST-SHR 1.0mm
Connector Type:
Single Bearing
Bearing/Bushing:
24 mm
Length:
19 mm
Width:
9 mm
Height:
2.9 g
Weight:
Nylon
Geartrain:
Brushed
Motor Type:
3.2 - 4.2 v
Voltage Range:
FEATURES
- Performance linear long throw servo designed specifically for use with AS3X ultra micro helis
- 13.5 mm servo throw
- Compact footprint
- JST-SHR Connector
- Single Bearing for friction free operation
