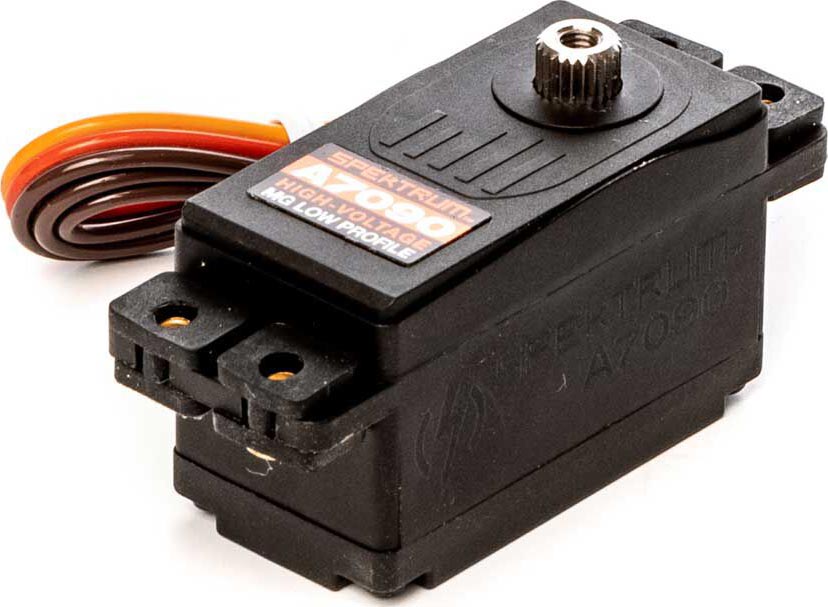

A7090 Brushless Low Profile MG HV Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Air
Application:
Dual BB
Bearing/Bushing:
23 Tooth
Output Spline:
41 mm
Length:
21 mm
Width:
25 mm
Height:
50 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
14.76 kg-cm (205 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
15.5 kg-cm (215.3 oz-in)
Torque @ 7.4V:
0.091 sec/60°
Speed @ 7.4V:
18 kg-cm (250 oz-in)
Torque @ 8.4V:
0.068 sec/60°
Speed @ 8.4V:
FEATURES
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
The low profile Spektrum A7090 brushless digital metal gear servo offers superb performance at a great price for standard aircraft applications. High voltage capable, the A7090 can produce an impressive 18 kg-cm (250 oz-in) of torque at blazing fast 0.068 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting brushless motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise holding power. Like all Spektrum servos, the A7090 delivers reliability, consistency and performance that are second to none.

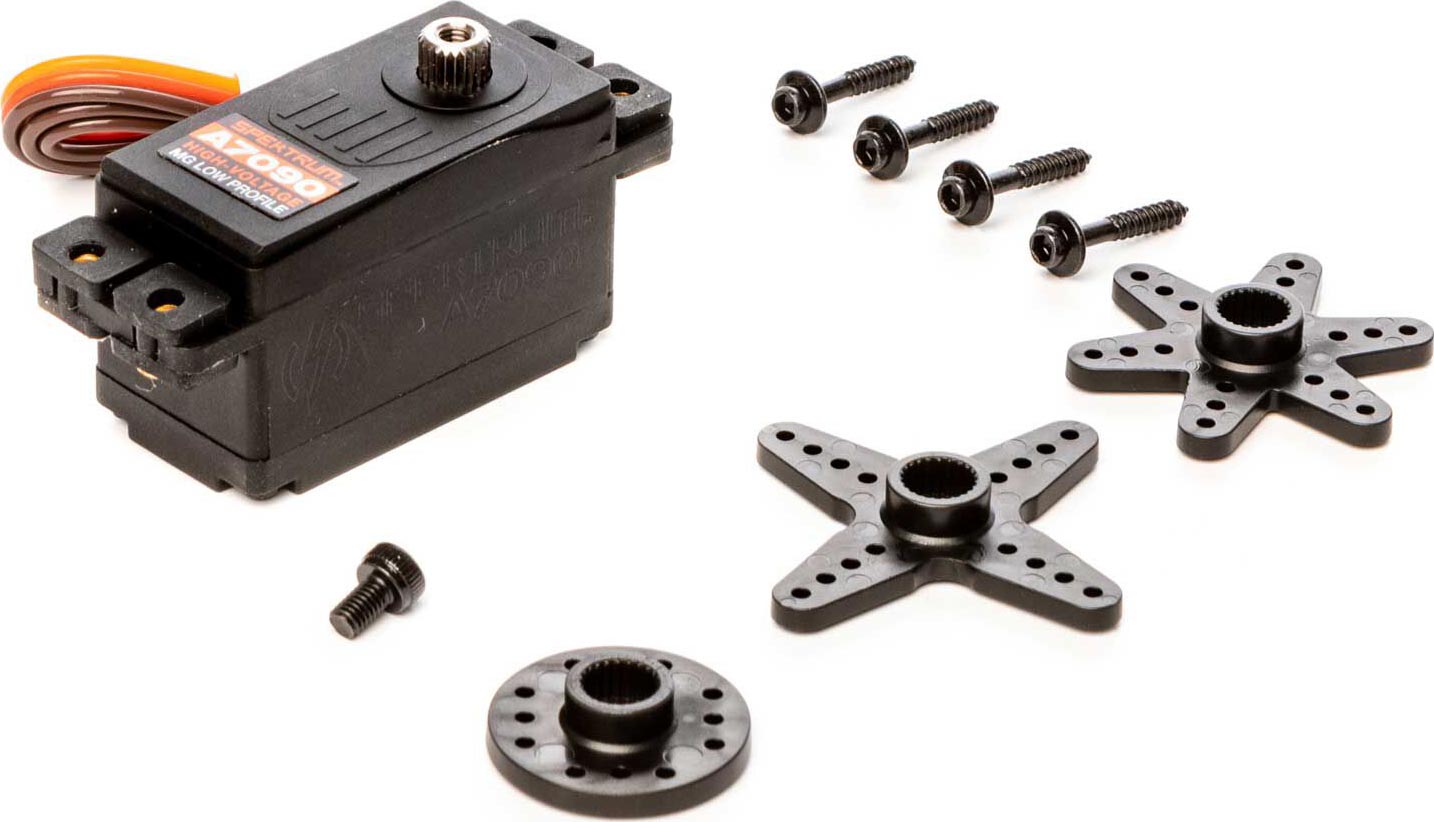

In The Box
(1) A7090 Brushless Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms and (1) Screw
click image to enlarge

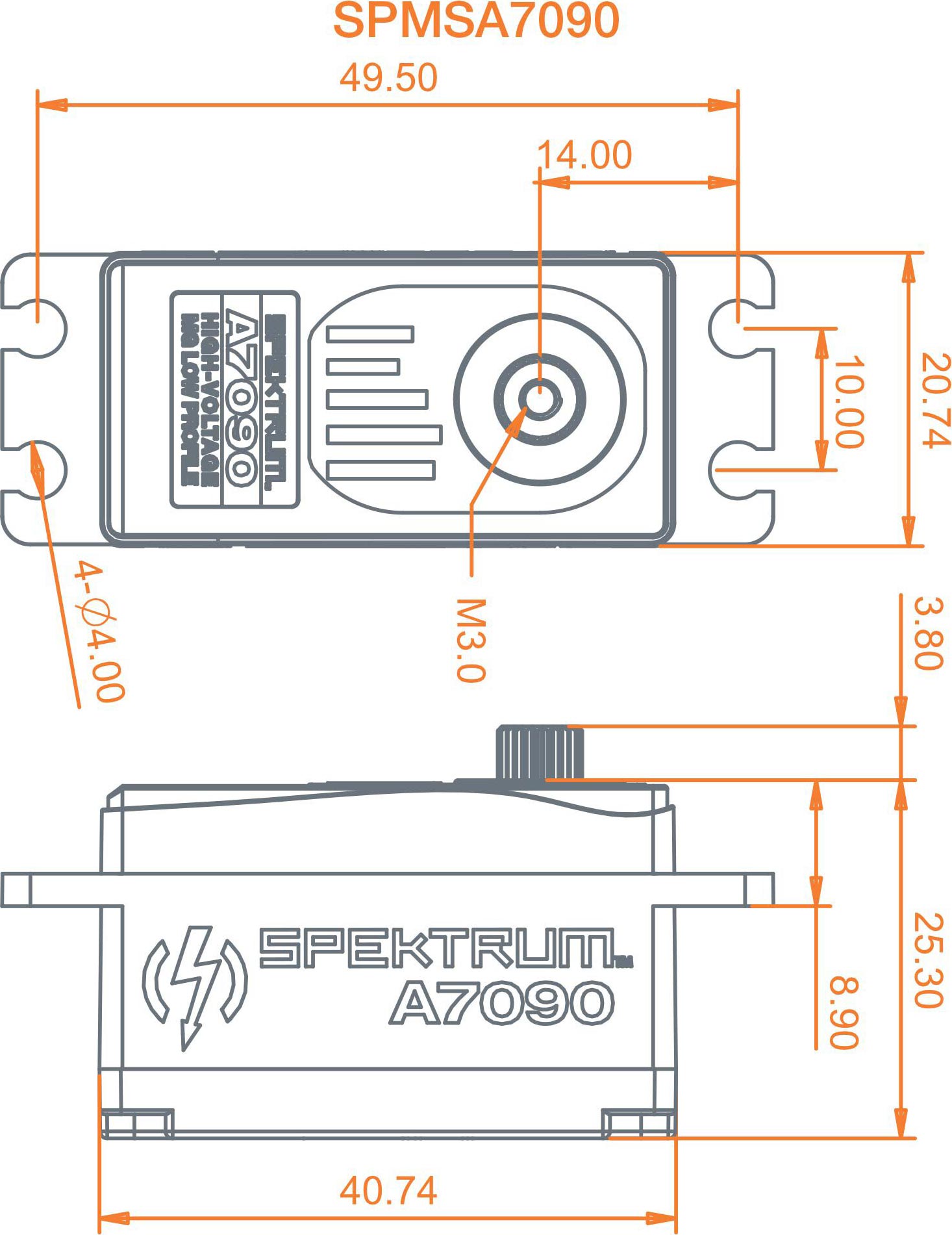

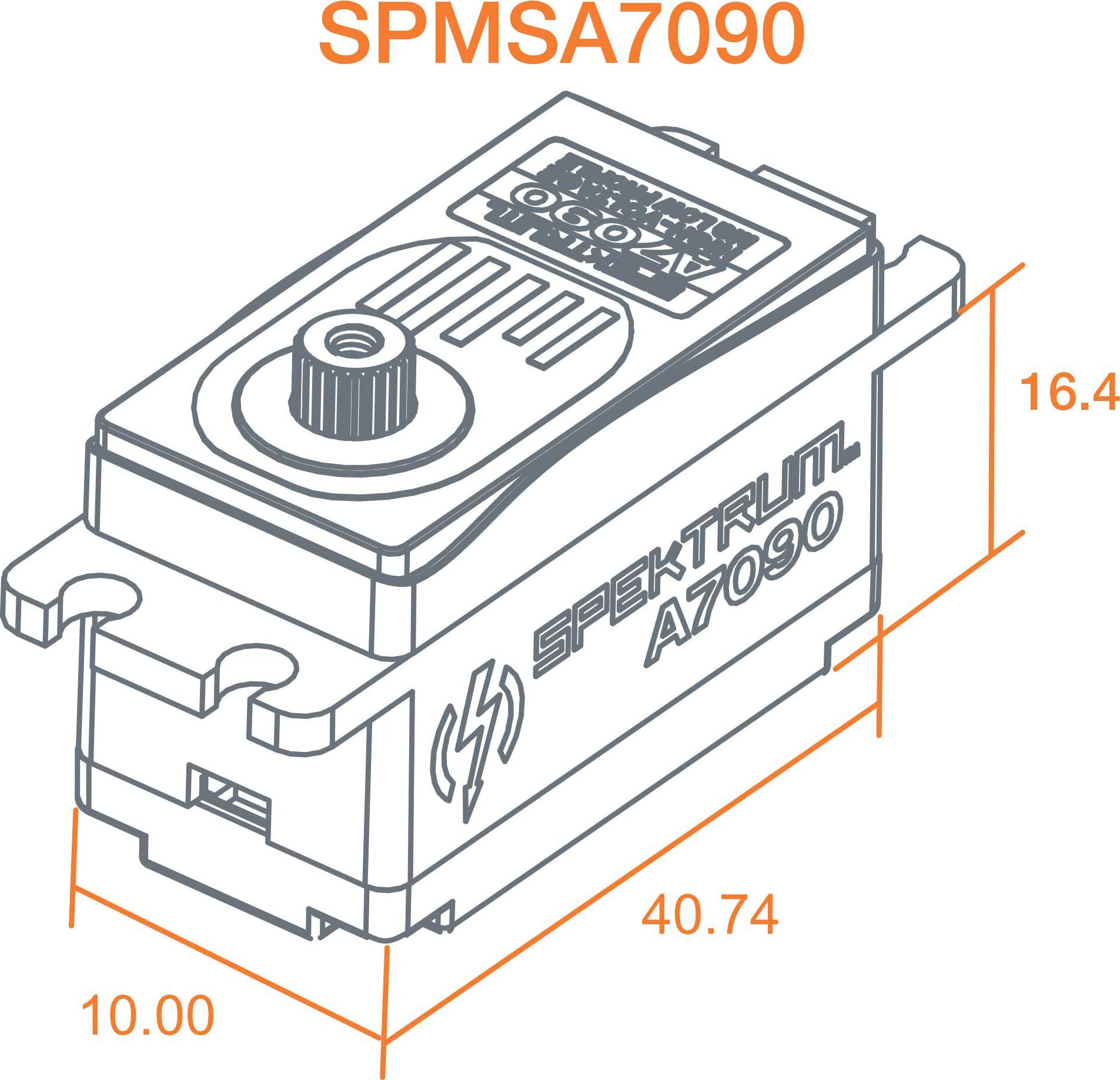

ADDITIONAL PHOTOS
|
|
|
605482153826 0605482153826
SPMSA7090
