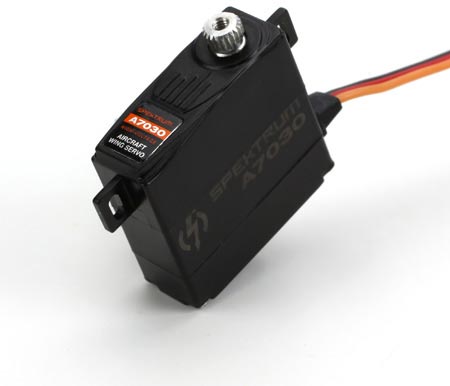

Servo - A7030 HV Thin Wing MG
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Thin wing sailplanes and small electric aircraft
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
27.4 mm
Length:
10 mm
Width:
27.2 mm
Height:
14.5 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
6.0V-8.4 v
Voltage Range:
45 oz-in
Torque @ 6.0V:
0.22 sec/60°
Speed @ 6.0V:
49 oz-in
Torque @ 8.4V:
0.15 sec/60°
Speed @ 8.4V:
FEATURES
- High Voltage
- Thin Wing (10mm) Design
- 49 oz-in of Torque
The A7030's metal gear train, great speed and incredible 49 oz-in of torque is ideal for any aircraft requiring a thin-wing servo like that on a sailplane where only a 10mm depth of space is typical. The ability of the A7030 to accept a higher voltage for a 2S LiPo makes setup more simple and lighter without any voltage regulators.
