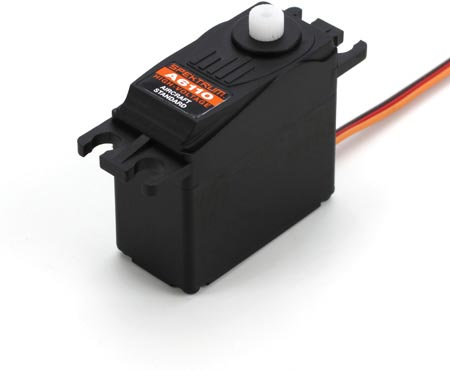

Servo - Digital A6110 HV Standard Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
40-60 Size Aircraft
Application:
Z Type
Connector Type:
Single Bearing
Bearing/Bushing:
38.3 mm
Length:
18.4 mm
Width:
36.6 mm
Height:
36.5 g
Weight:
Nylon
Geartrain:
6.0V-8.4 v
Voltage Range:
57 oz-in
Torque @ 6.0V:
0.20 sec/60°
Speed @ 6.0V:
76 oz-in
Torque @ 8.4V:
0.14 sec/60°
Speed @ 8.4V:
FEATURES
- High Voltage
- .14 transit time
- Up to 76 oz-in of Torque
The A6110's digital precision, low deadband sensitivity and class leading .14 transit time is ideal for any 40-60 size sport aircraft. The cored motor delivers reliable power to the tight plastic gear train. Ball bearing support helps assure that accuracy continues throughout the long life of the servo. Its ability to accept the higher voltage for a 2S LiPo battery makes setup simpler and operation more efficient.
