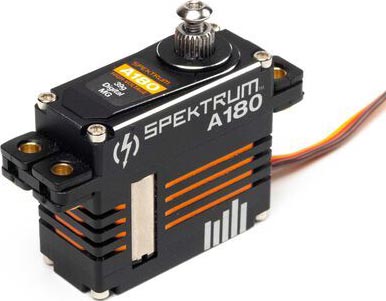

Servo Digital A180 42g High-Voltage Metal-Geared
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Airplane
Application:
25 Tooth
Output Spline:
35.5 mm
Length:
15 mm
Width:
32.2 mm
Height:
42 g
Weight:
Metal
Geartrain:
6.0-8.4 v
Voltage Range:
FEATURES
Replacement rudder and elevator servo for the E-flite Eratix 3D SWS 1.6m (64”) airplane. This 42g mini servo is capable of 150 oz-in of torque, at 7.4V, with a speed of 0.09 seconds / 60 degrees. The case dimensions are 35.5 x 15 x 32.2mm. It uses a coreless motor, has metal gears, and the output shaft has 25 splines.
PRODUCT RESOURCES
660132655990 0660132655990
SPMSA180
