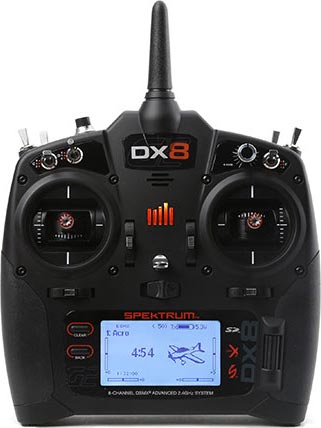

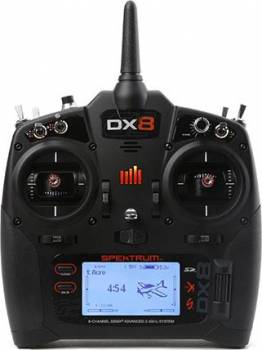

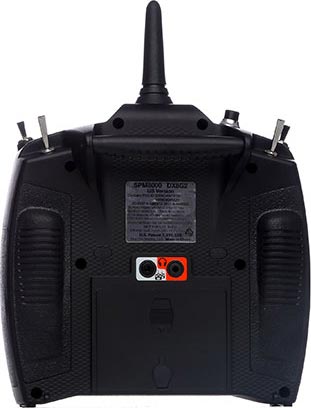

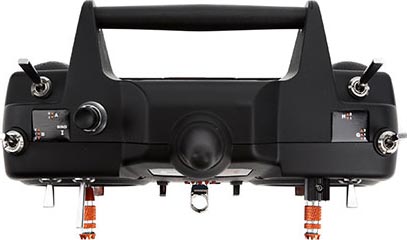

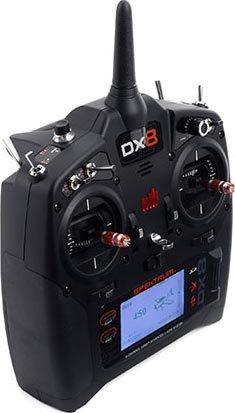

The next-generation DX8 takes 8-channel sophistication to new heights with features and capabilities that eclipse those of almost everything else in its class. Voice alerts, 250-model memory, wireless trainer, 4 model types – you get it all and more.
Diversity Antenna
Using a combination of vertical and horizontal arrays, the diversity antenna provides superb protection against polarization blind spots, ensuring your receiver always “sees” the signal.
Fly Smarter with Built-In Telemetry
The built-in telemetry feature gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more.*
Using the voice alert system, you can program the DX8 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX8 can be set up to record the data to its SD card.
*Requires a Spektrum telemetry module and telemetry sensors, sold separately.
Programming Features
The DX8 comes with an impressive list of programming features that rivals that of much more expensive transmitters.
Airplane
- 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap,
- 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, 4 Aileron
- 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder,
- Dual Rudder/Elevator
- Aileron, Flaperon, Elevon and V-Tail Differential
- Flap System with Elevator Compensation
- 5 Flight Modes
- Dual Rates and Expo
- 7-Point Throttle Curve
- Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, Rudder-to-Aileron/Elevon
- 10 Programmable Mixes – Select Normal or Curve for Each
Helicopter
- Gyro and Governor
- 7-Point Throttle Curve
- 7-Point Pitch Curve
- 7-Point Tail Curve
- 7 Swash Plate Types: Normal, 3-Servo 120 Degrees, 3-Servo 135, 3-Servo 140, 3-Servo 90, 4-Servo 90, 2-Servo 180,
- 5 Flight Modes, Including Hold
- Dual Rates and Expo
- Cyclic-to-Throttle and Swashplate Timing Mixes
- 10 Programmable Mixes – Select Normal or Curve for Each
Sailplane
- 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap,
- 4 Aileron 2 Flap
- 3 Tail Types: Normal, V-Tail A, V-Tail B
- Motor Throttle Switch Assignment
- Dual Aileron and V-tail Differential
- Camber System
- Camber Preset
- 10 Flight Modes
- Dual Rates and Expo
- Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, Elevator-to-Flap
- 10 Programmable Mixes – Select Normal or Curve for Each
Multirotor
- Multirotor Channel Inputs – ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
- Multirotor Checklists, Warnings and Voice Alerts
- Simplified Multirotor Flight Mode Setup and Switch Assignment
Please Note: 16GB (maximum) Class 4 SD card is recommended for this radio
