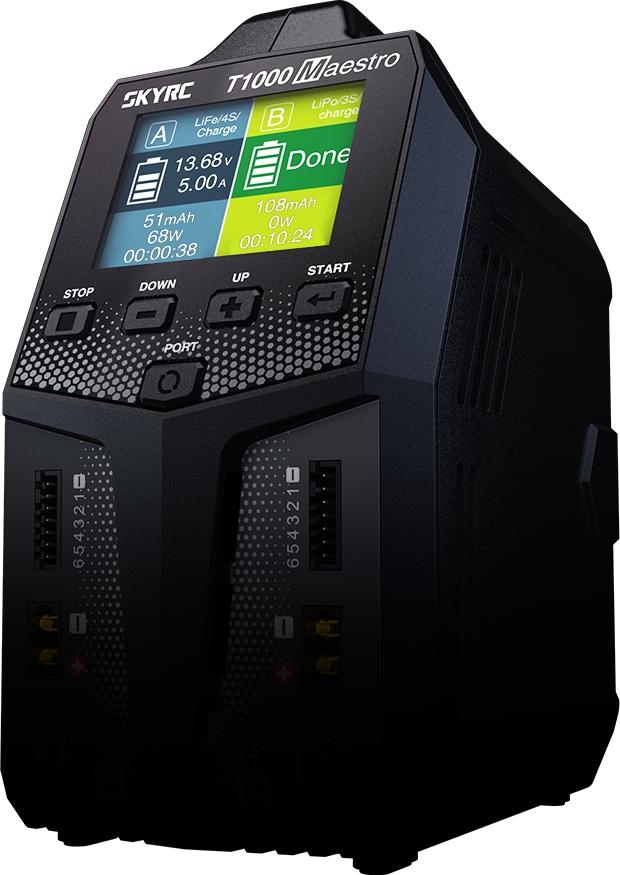

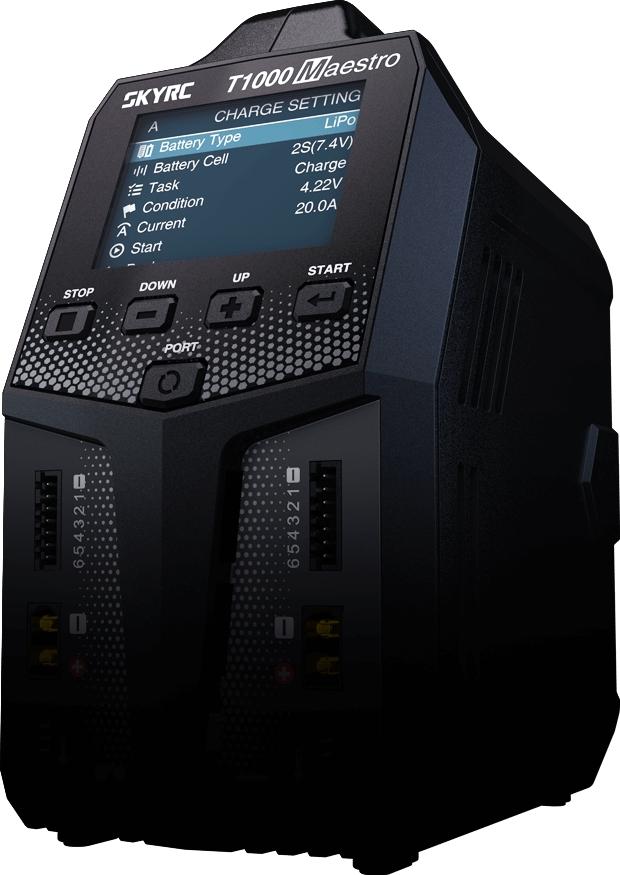

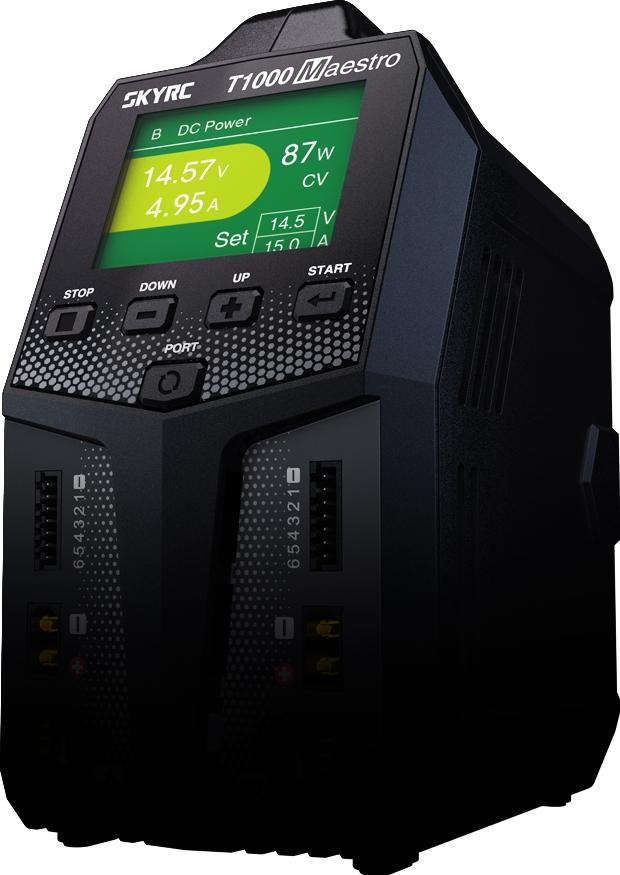

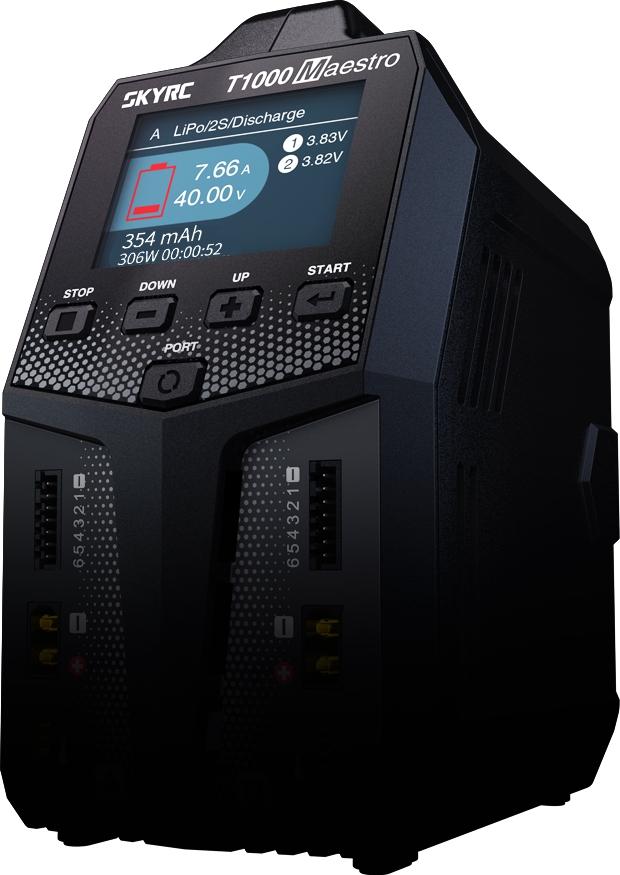

T1000 Maesto AC/DC Dual Balancing Charger
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
10-30 V
DC Input:
100-240 V
AC Input:
450 w
Fast Charge Power AC (max):
1000 w
Fast Charge Power DC (max):
1-6 cells
LiPo/LiFe/LiIon/LiHV Cells:
4-15 cells
NiMH/NiCd Cells:
3-12 V
Pb (lead acid):
190.3 mm
Length:
153.5 mm
Width:
100 mm
Height:
1370 g
Weight:
FEATURES
Input Power:
DC Input Voltage: 10-30V
AC Input Voltage : 100-240V
Charger power:
AC: 450W MAX
DC: 1000W MAX
Discharge power:
Main port: 10W
Balance port: 37W MAX
External discharge: 350W MAX
Battery:
Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 4-15cells
Pb: 3S/6S/12S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb 0.1-20.0A
Parallel 20.0-35.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb 0.1-2.0A
External discharge 0.1-40.0A2
Balance current
LiPo/LiFe/LiIon/LiHV 1.5A MAX
Operation
LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
Pb: Normal, AGM Charge, Cold Charge, Discharge
