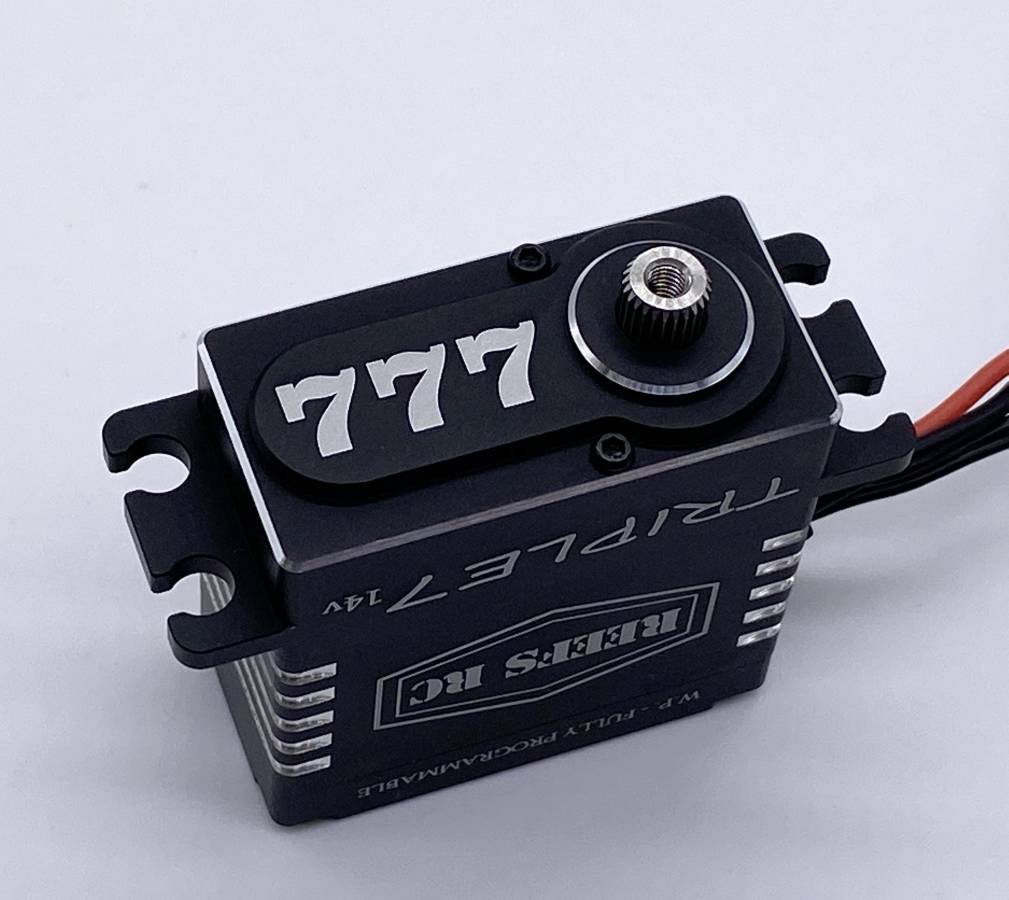

Servo Triple7 14V High-Torque High Speed Brushless Programmable
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
High Torque High Speed Brushless Servo
Type:
Servo & JST 2 pin
Connector Type:
Bearing
Bearing/Bushing:
3 Ball Bearing
Bearing:
25 Tooth
Output Spline:

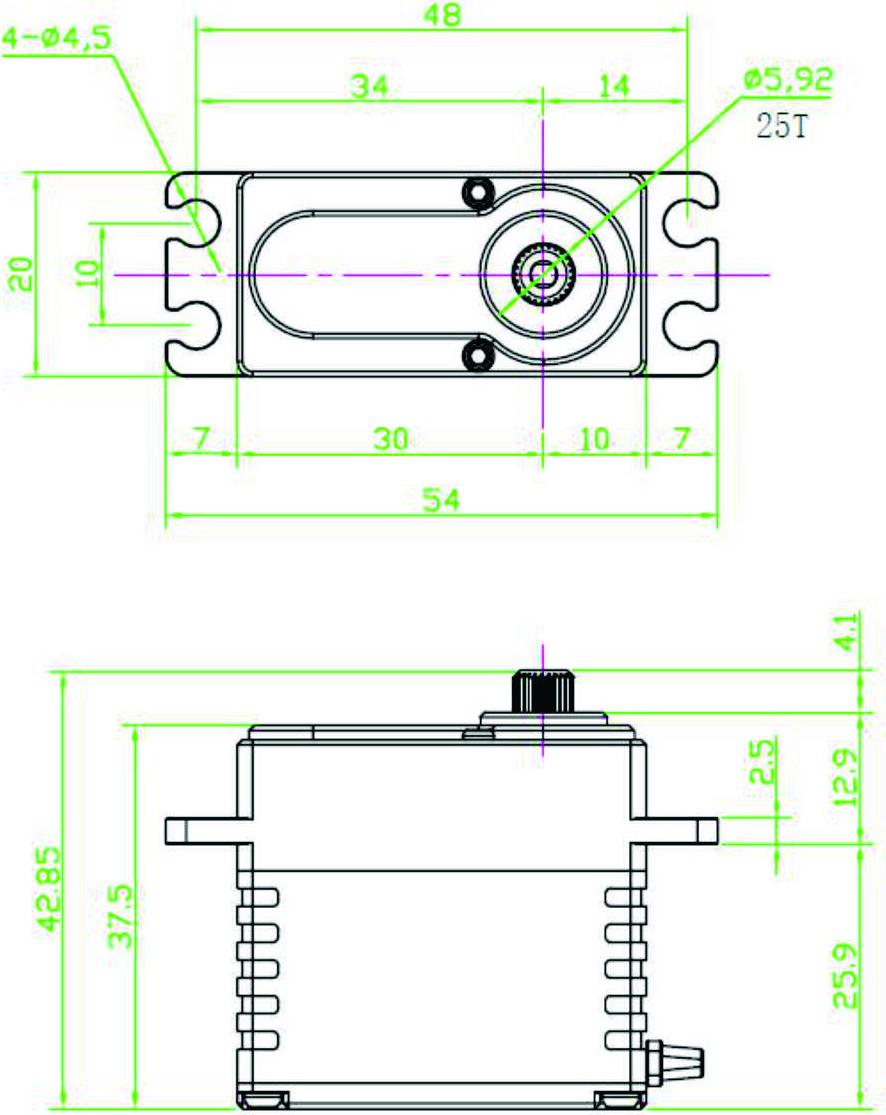

40 mm
Length:
20 mm
Width:
41.4 mm
Height:
Steel
Geartrain:
Brushless
Motor Type:
10 - 14 v
Voltage Range:
48 kg-cm (666 oz-in)
Torque @ 11.1V:
0.10 sec/60°
Speed @ 11.1V:
50.4 kg-cm (700 oz-in)
Torque @ 12.0V:
0.09 sec/60°
Speed @ 12.0V:
56 kg-cm (777 oz-in)
Torque @ 14.0V:
0.08 sec/60°
Speed @ 14.0V:
88 g
Weight:
FEATURES

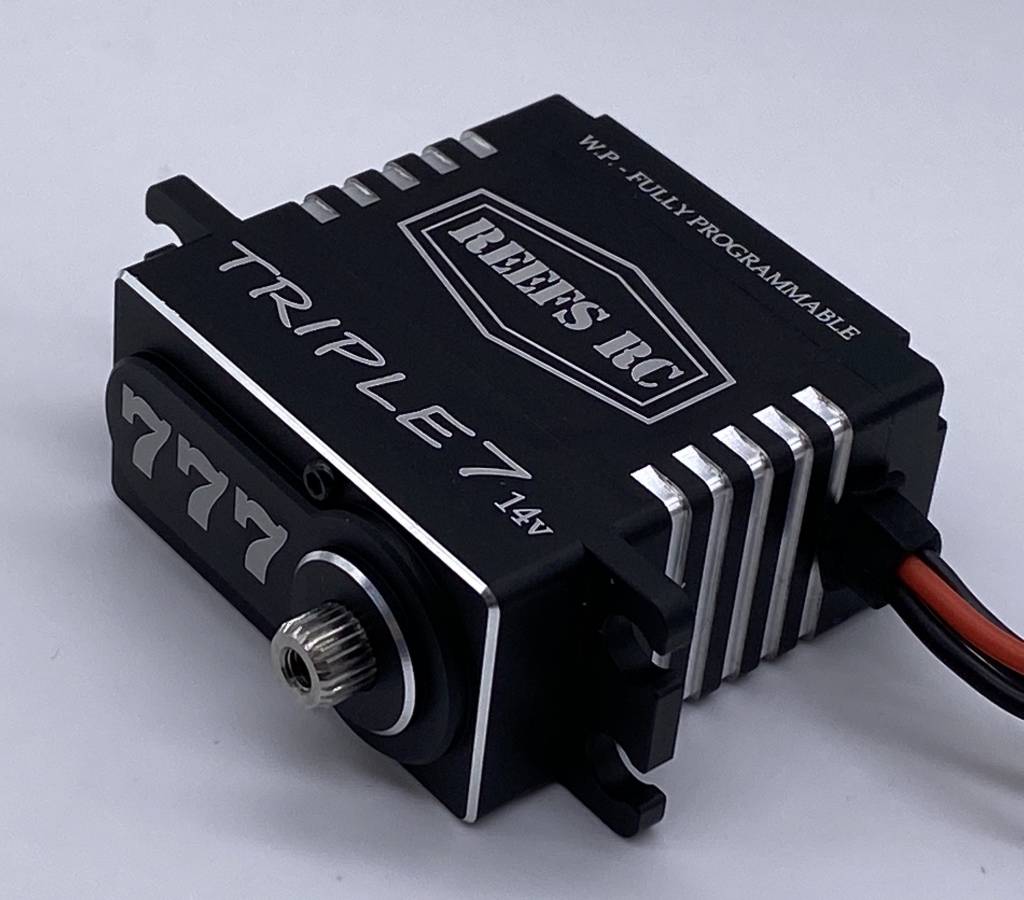

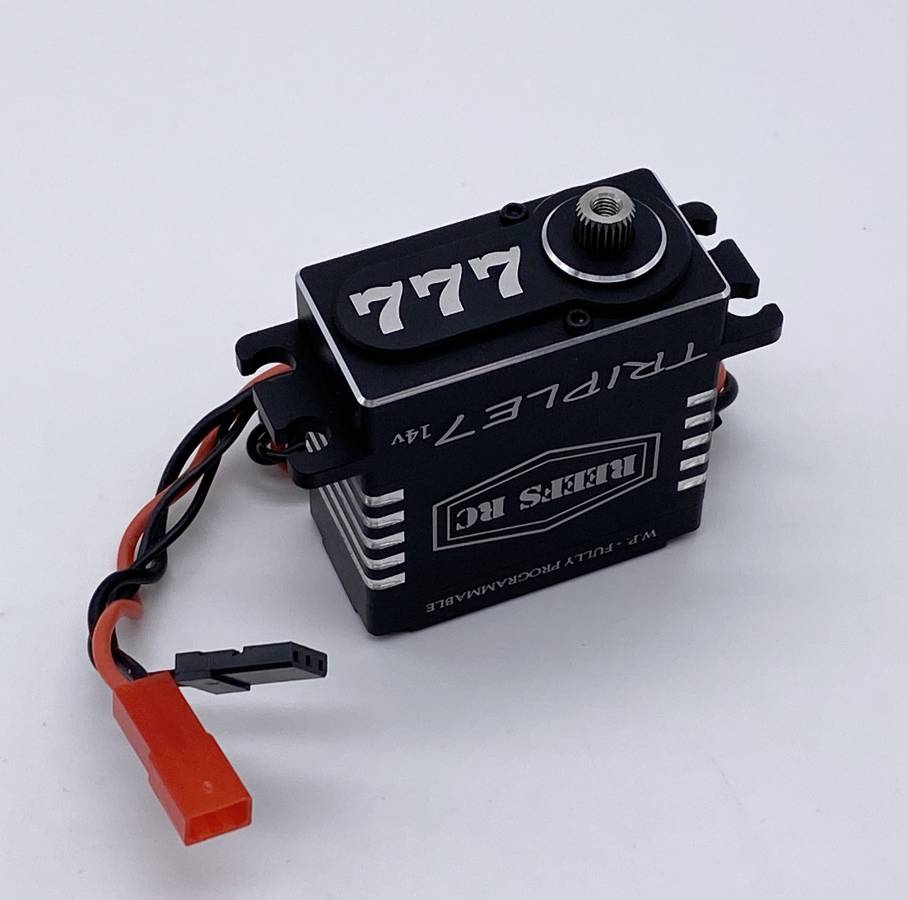

The all new Triple7 14v Fully Programmable Servo by REEFS RC is built from the ground up using the new Patented REEFS RC CNC Case and features full parameter controls via REEFS Software available free at reefsrc.com. Utilizing the REEFS USB Link (sold seperately) customers will have the ability to increase output power, adjust the servo angle, sensitivity, inversion and so much more with the click of a button. Lipo to Servo Connectors give you the ability to run your battery of choice, without relying on your ESC for power.
