Servo 422HDV2 High Voltage Digital
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
80 g
Weight:
Steel
Geartrain:
4.8 - 8.4 v
Voltage Range:
26 kg-cm (361 oz-in)
Torque @ 6.0V:
0.138 sec/60°
Speed @ 6.0V:
28.8 kg-cm (400 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
31.3 kg-cm (434 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:

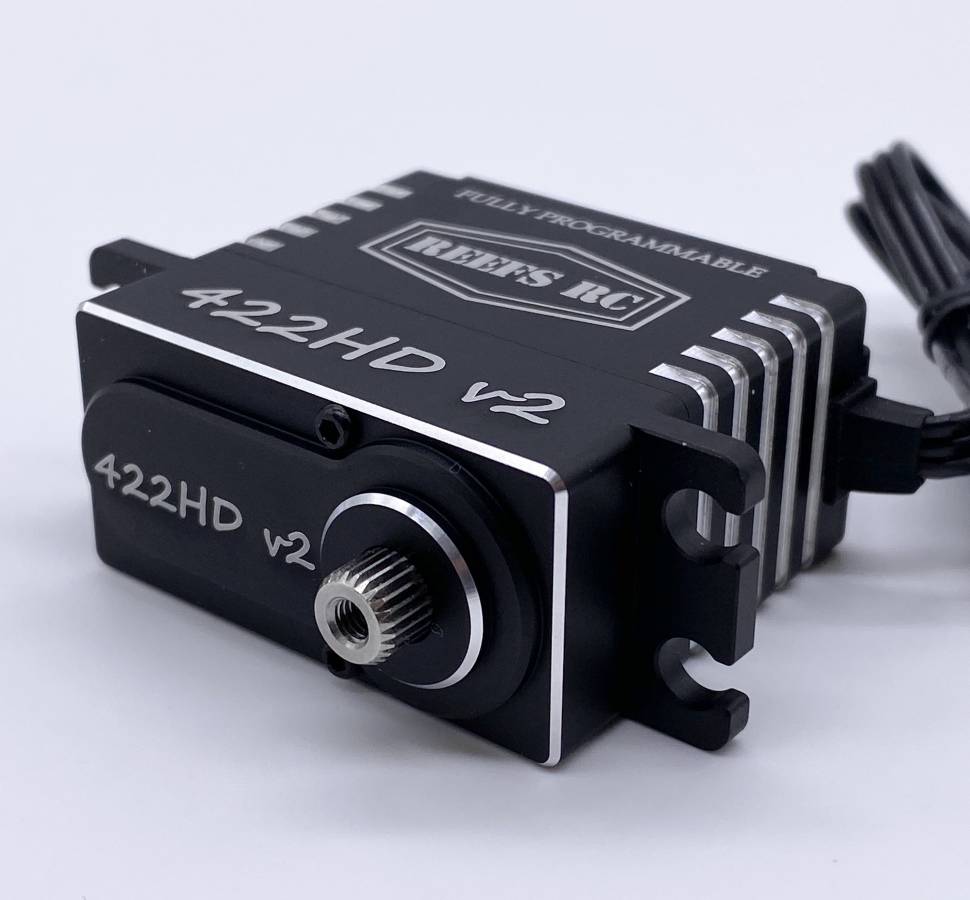

click image to enlarge

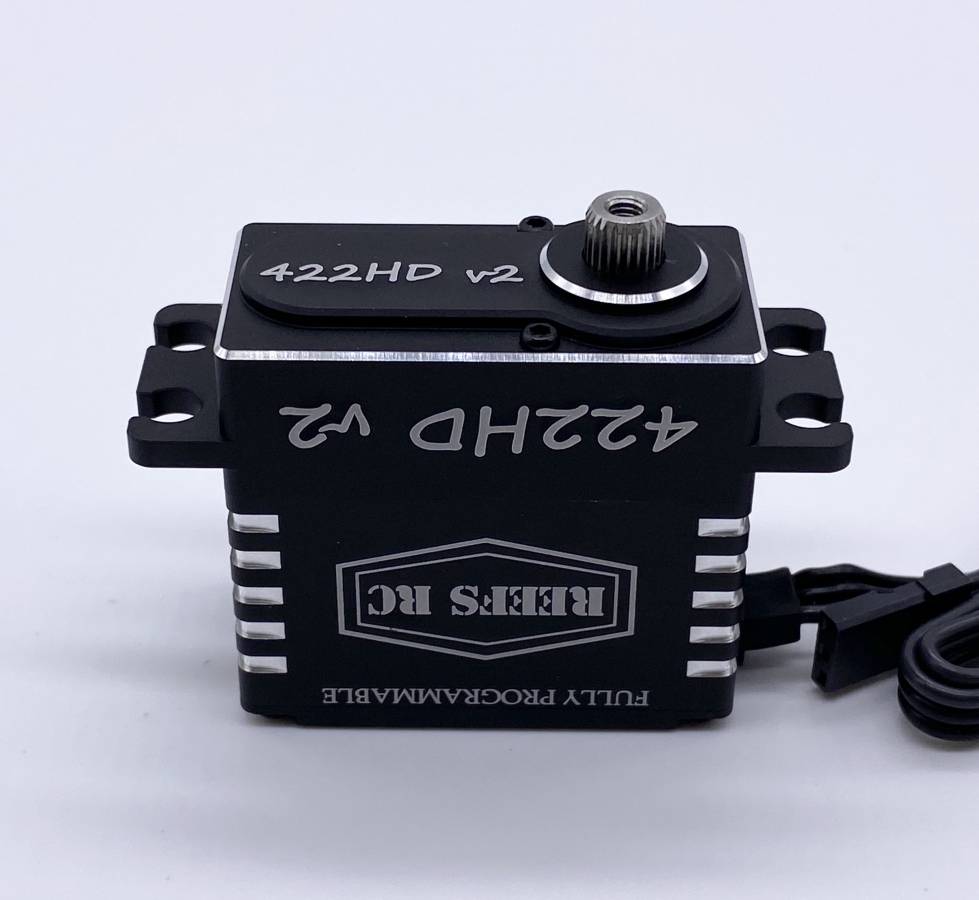

ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
610406248687 0610406248687
SEHREEFS65
