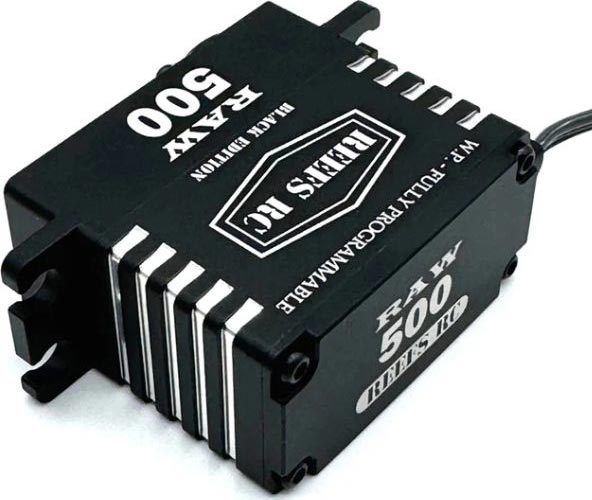

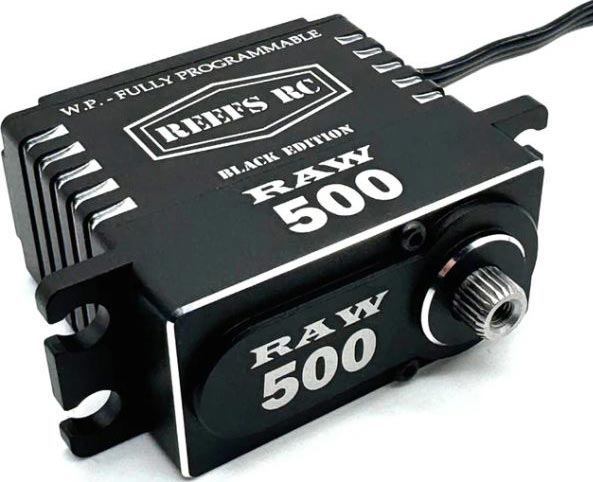

RAW 500 Servo Programmable - Black Edition
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
78 g
Weight:
Steel
Geartrain:
32.4 kg-cm (450 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
36 kg-cm (500 oz-in)
Torque @ 7.4V:
0.095 sec/60°
Speed @ 7.4V:
40.7 Kg-cm (565 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS USB LINK required)
- Internal: Steel Gears / All CNC Aluminum REEFS Case
The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo.
click image to enlarge
ADDITIONAL PHOTOS
|
602024524007 0602024524007
SEHREEFS178
