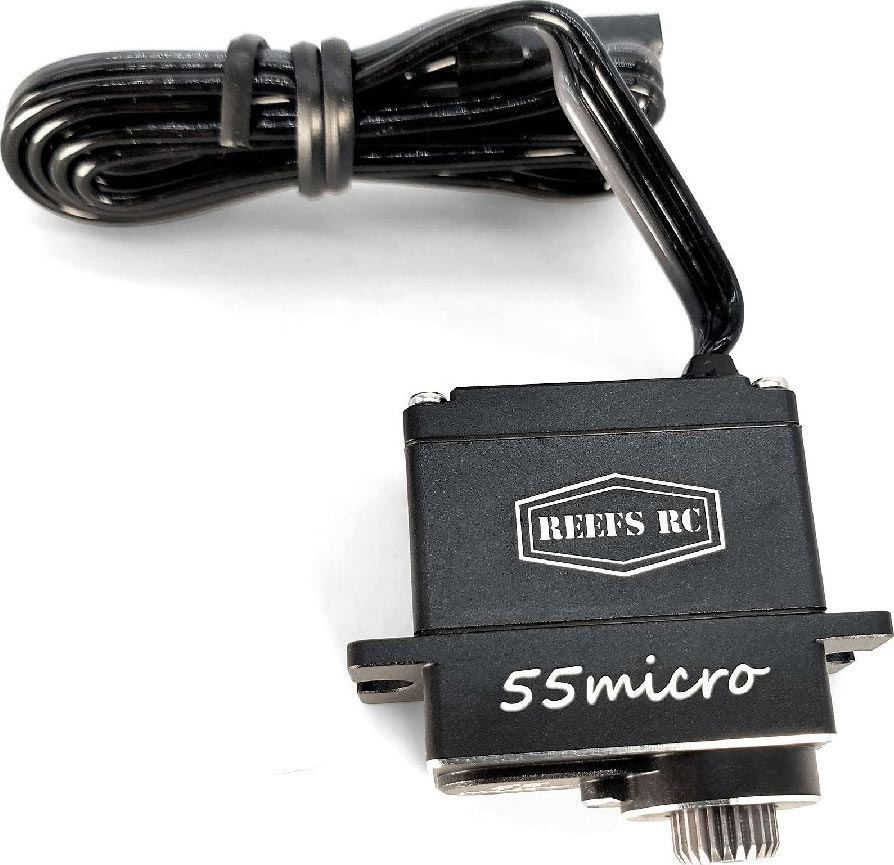

Servo 55Micro Digital Waterproof 25T
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

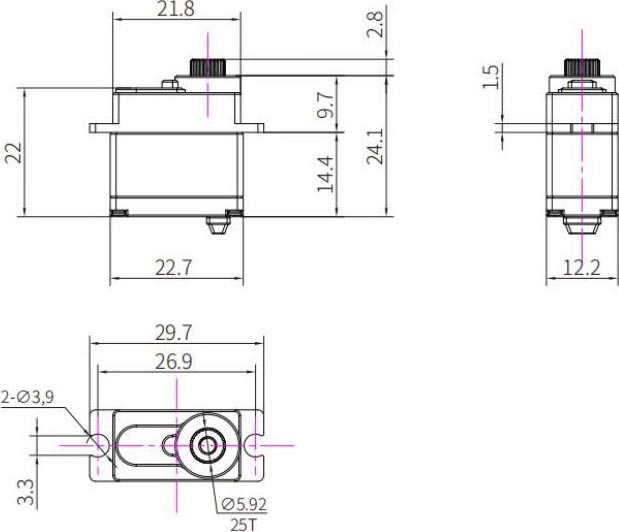

SPECIFICATIONS
Micro
Size Class:
Digital
Type:
Surface
Application:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
22.9 mm
Length:
12.8 mm
Width:
22 mm
Height:
19 g
Weight:
Steel
Geartrain:
6.0 - 8.4 v
Voltage Range:
41 oz-in
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
48 oz-in
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
55 oz-in
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
- Direct-Fit Replacement Upgrade for TRAXXAS TRX-4 TRAXXAS TRX-4M or #2065 servo
- Any Sub-Micro application that demands high performance and reliability
- Utilizes Standard 25T servo horn
click image to enlarge

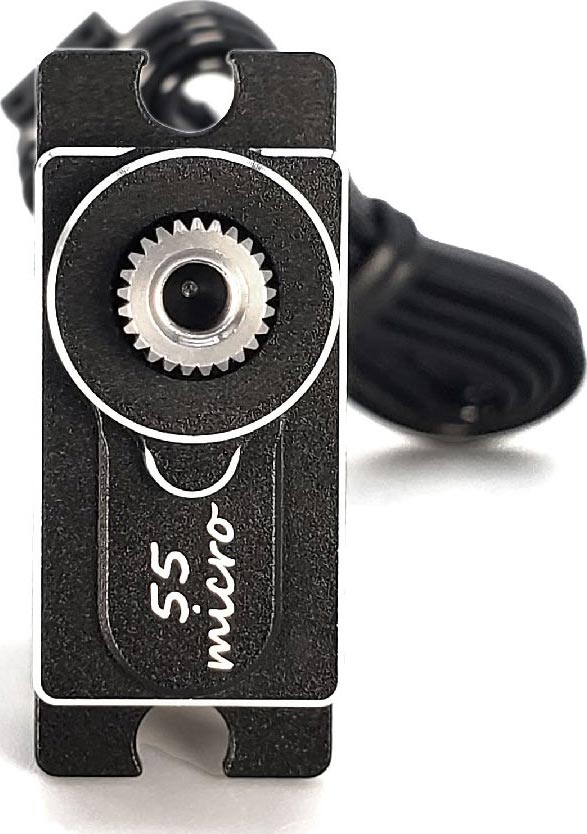

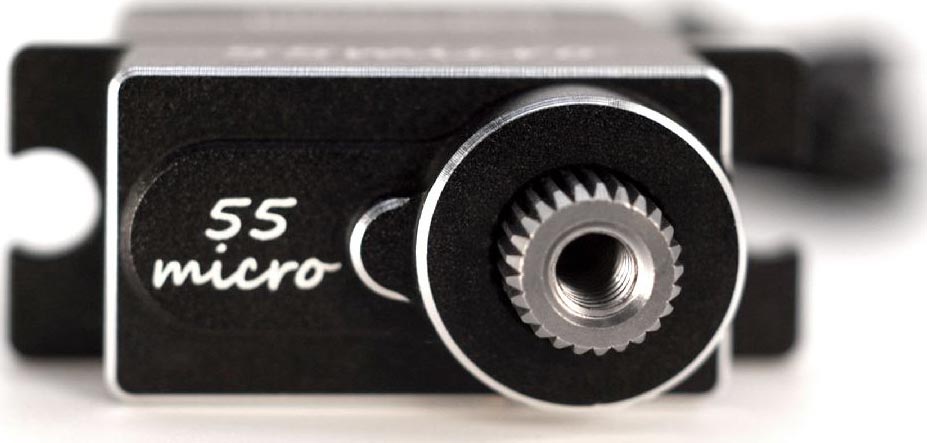

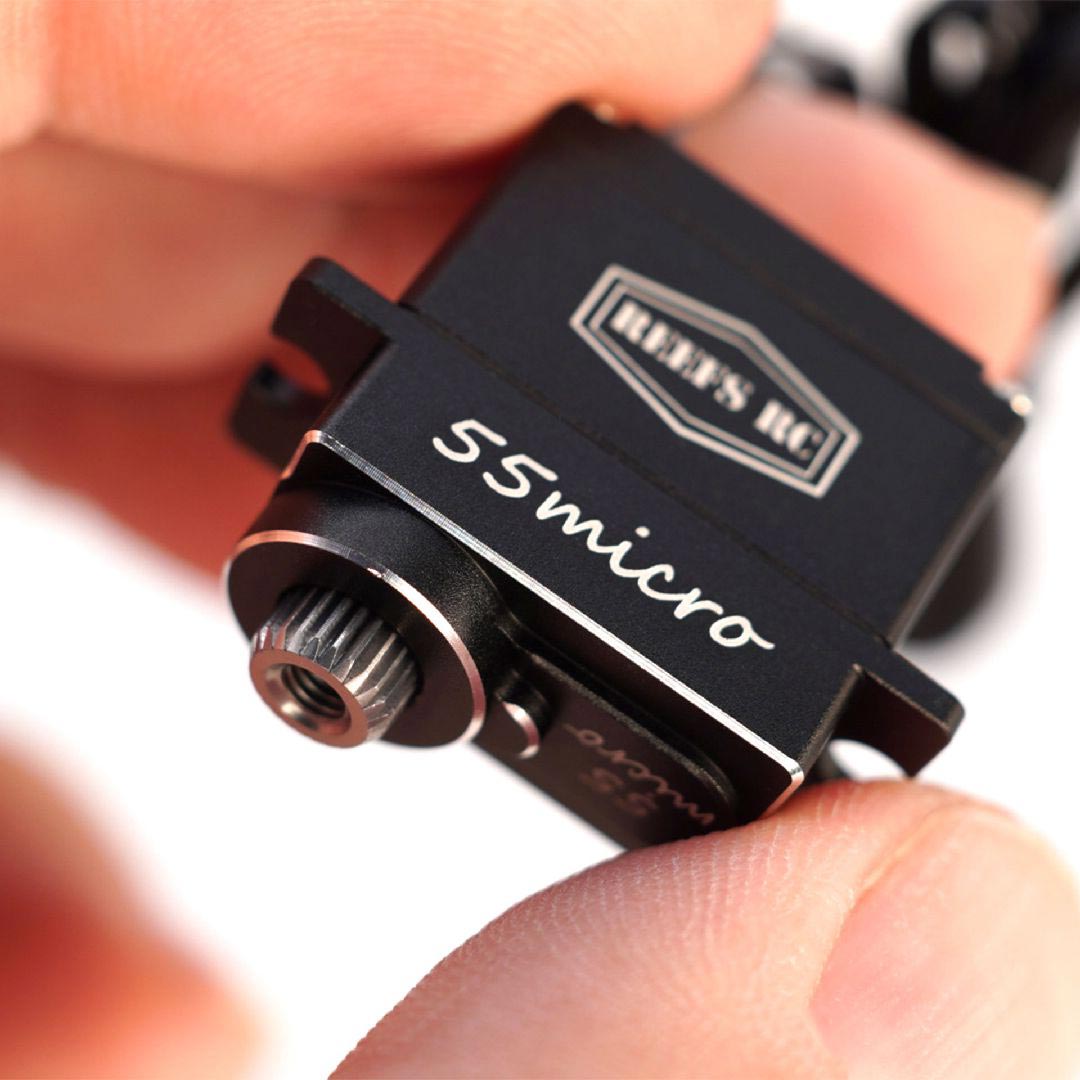

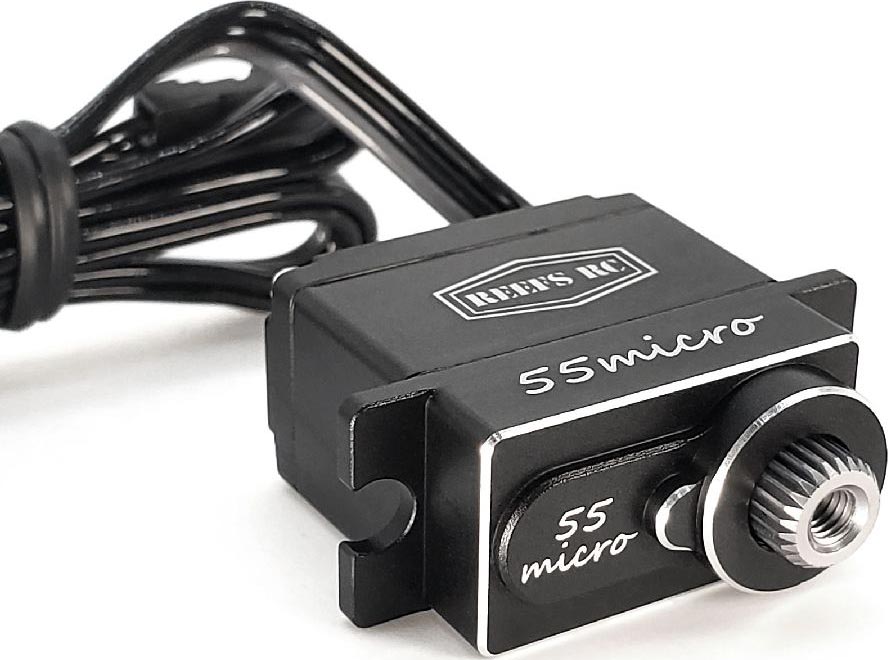

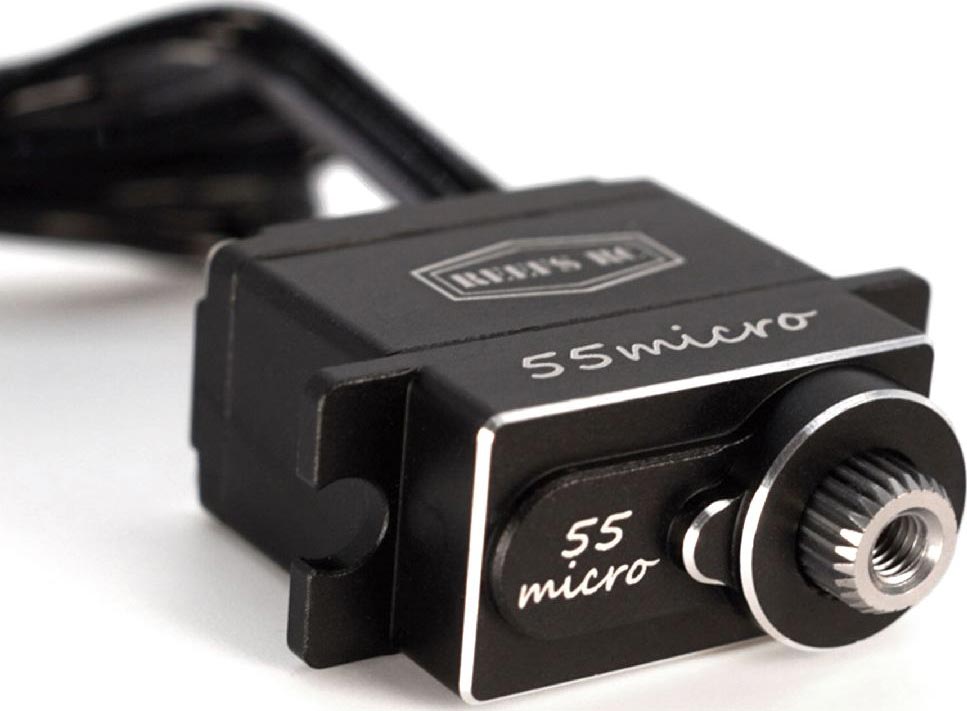

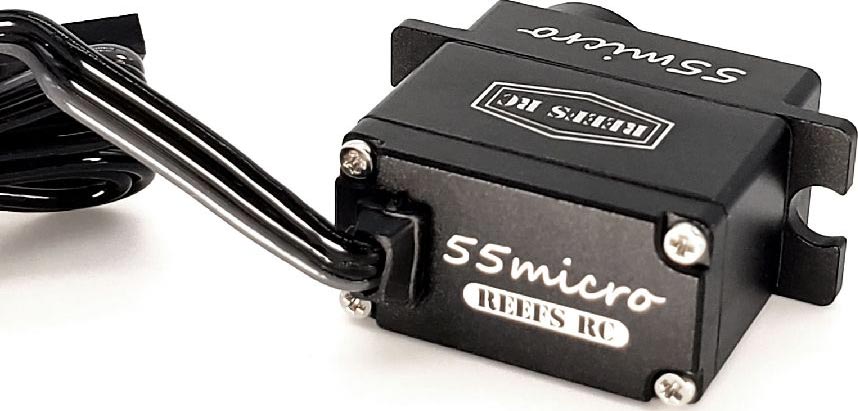

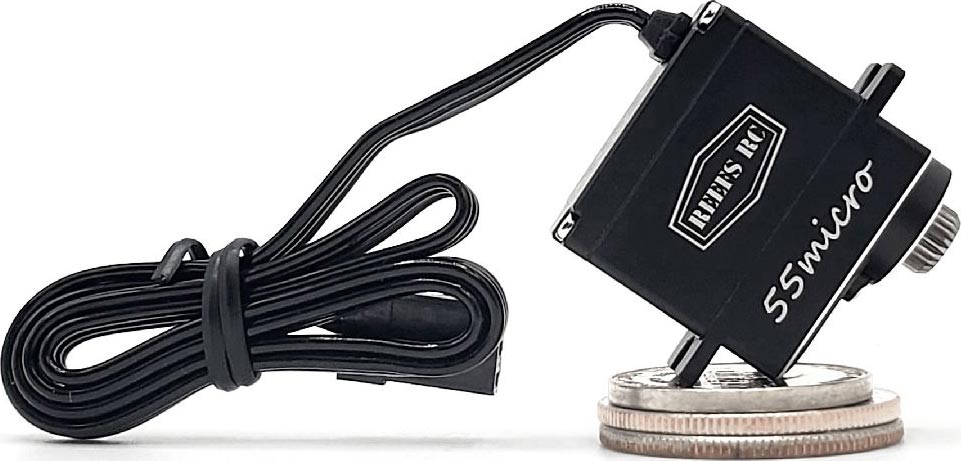

ADDITIONAL PHOTOS
|
|
|
|
|
|
|
|
PRODUCT RESOURCES
602024523932 0602024523932
SEHREEFS171
