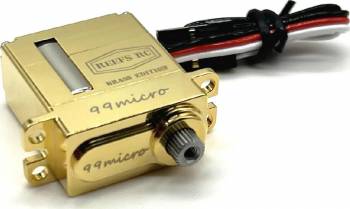

Servo 99Micro Brass Edition Programmable
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
22.8 mm
Length:
12 mm
Width:
27.4 mm
Height:
36 g
Weight:
Metal Gears
Geartrain:
Digital Coreless
Motor Type:
6 - 8.4v
Voltage Range:
6.4 kg-cm (89 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
7.13 kg-cm (99 oz-in)
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
8.28 kg-cm (115 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
click image to enlarge

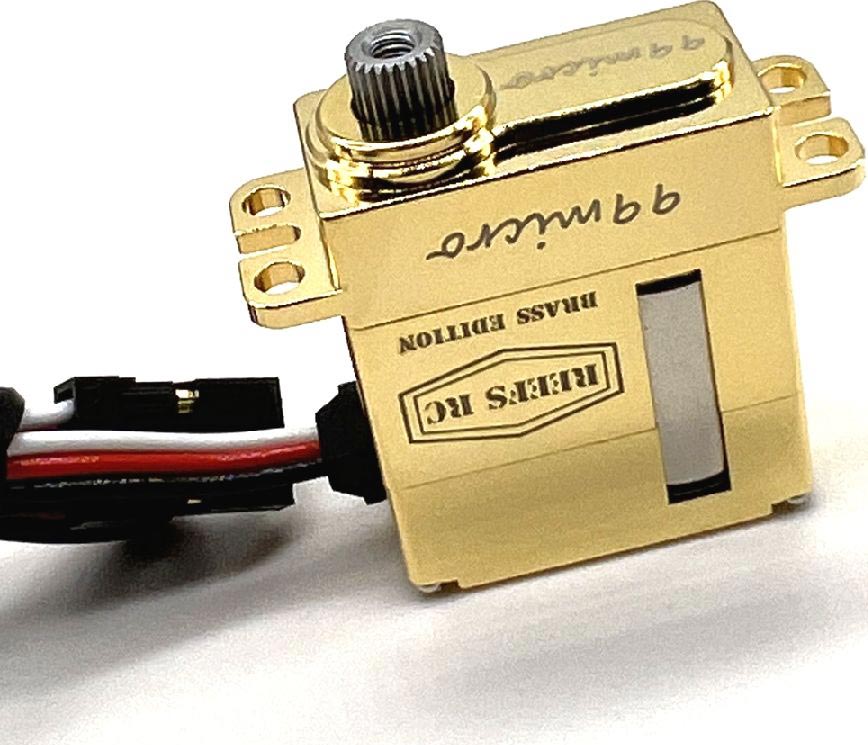

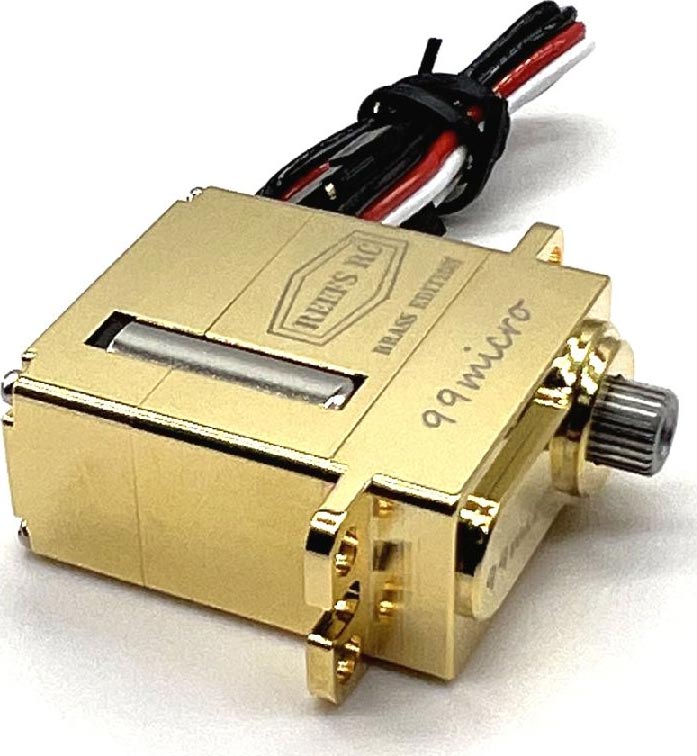

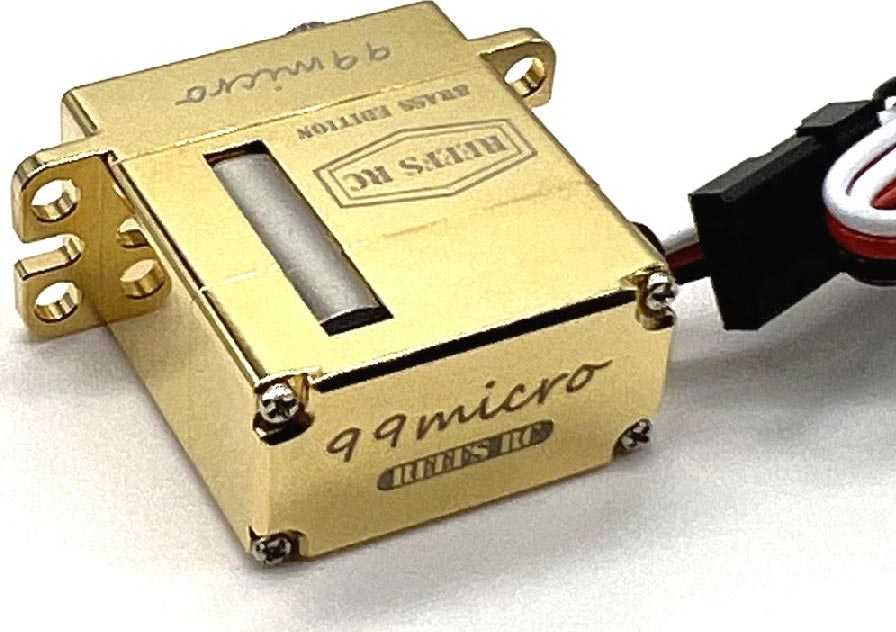

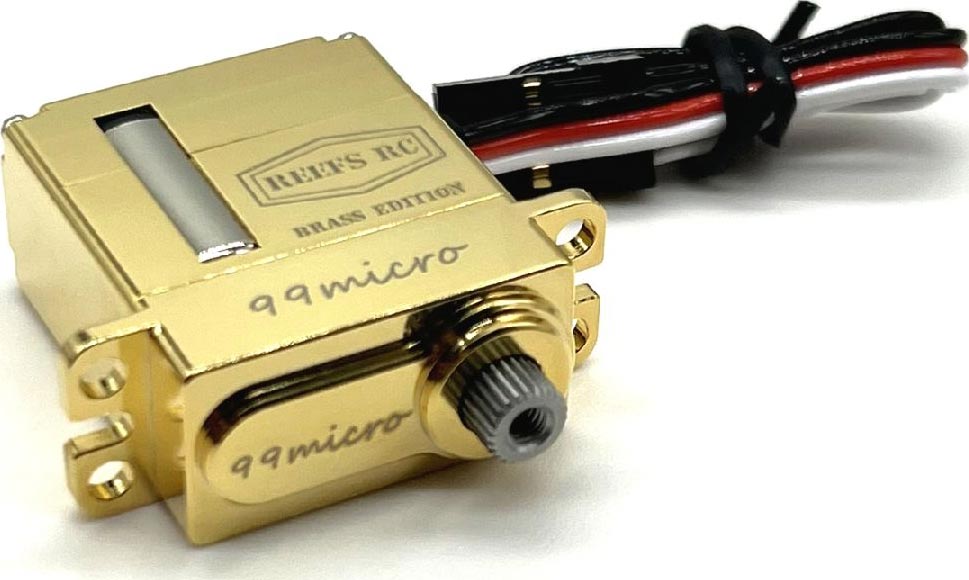

ADDITIONAL PHOTOS
|
|
|
