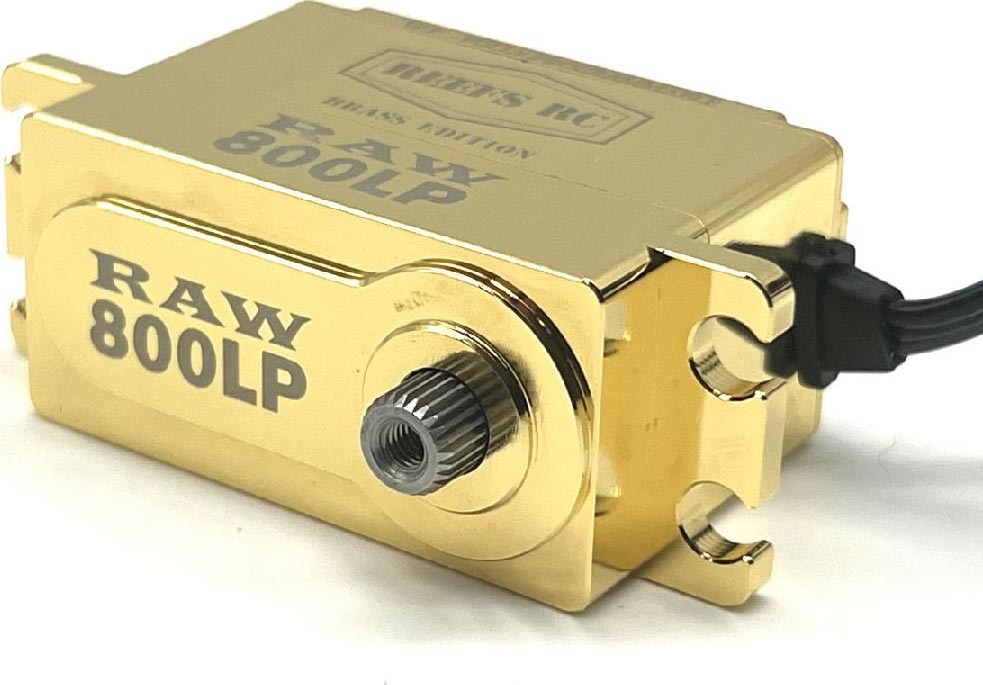

Servo RAW800LP Brass Edition Programmable
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.8 mm
Length:
20.2 mm
Width:
29.5 mm
Height:

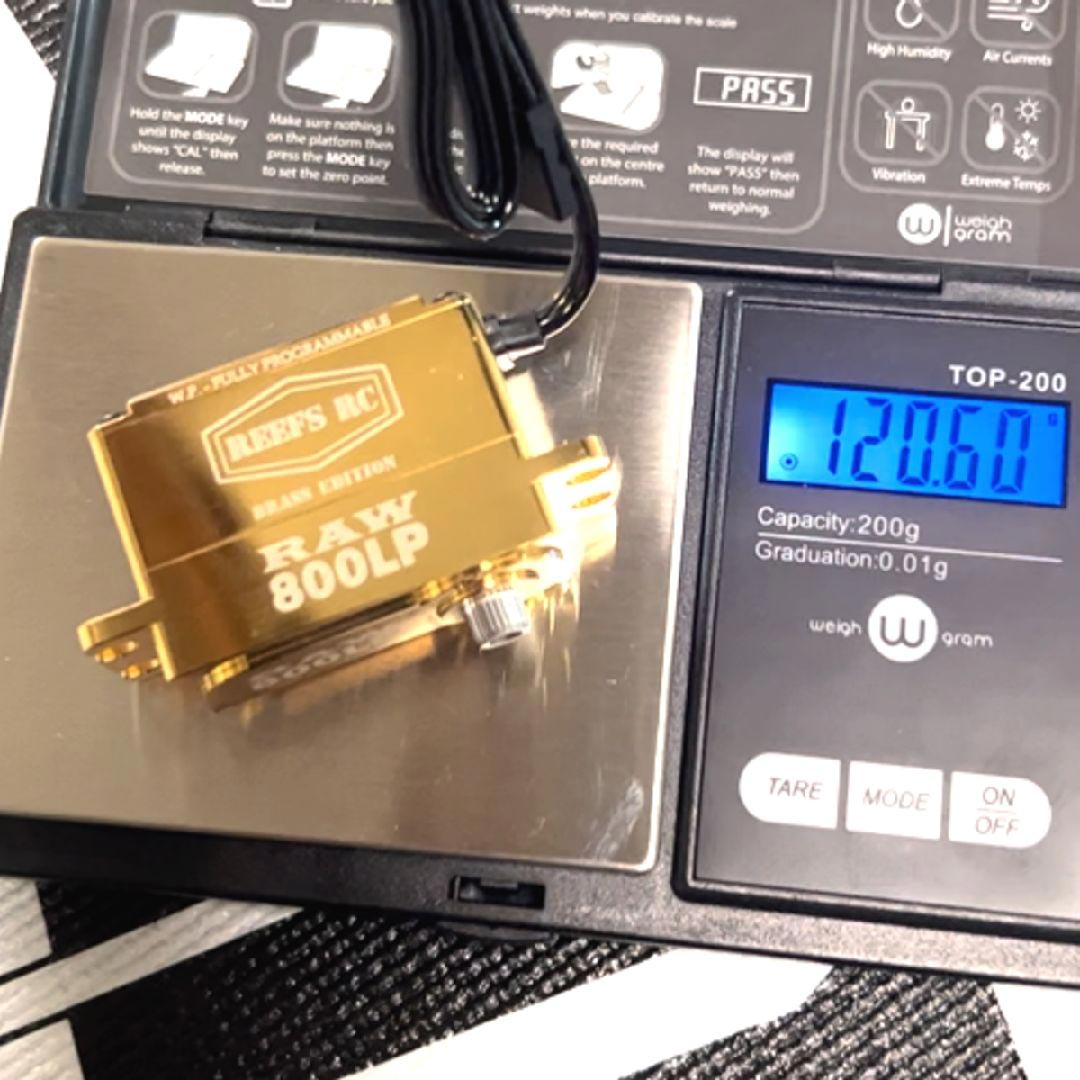

120.1 g
Weight:
Steel
Geartrain:
4 Pole - Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
45.73 kg-cm (635 oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
51.5 kg-cm (715 oz-in)
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
57.6 kg-cm (800 oz-in)
Torque @ 8.4V:
0.09 sec/60°
Speed @ 8.4V:

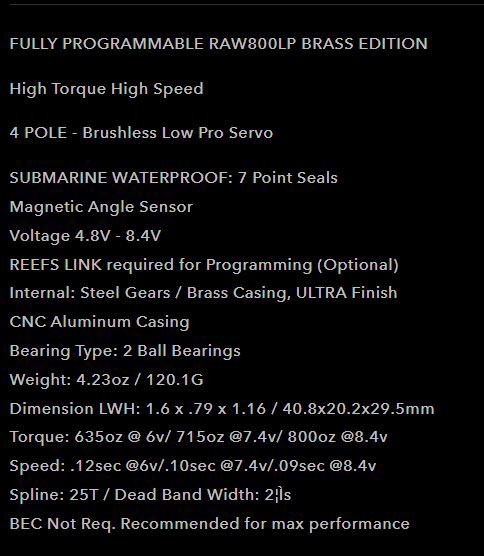

FEATURES
FULLY PROGRAMMABLE RAW800LP BRASS EDITION
High Torque High Speed
4 POLE - Brushless Low Pro Servo
SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
click image to enlarge

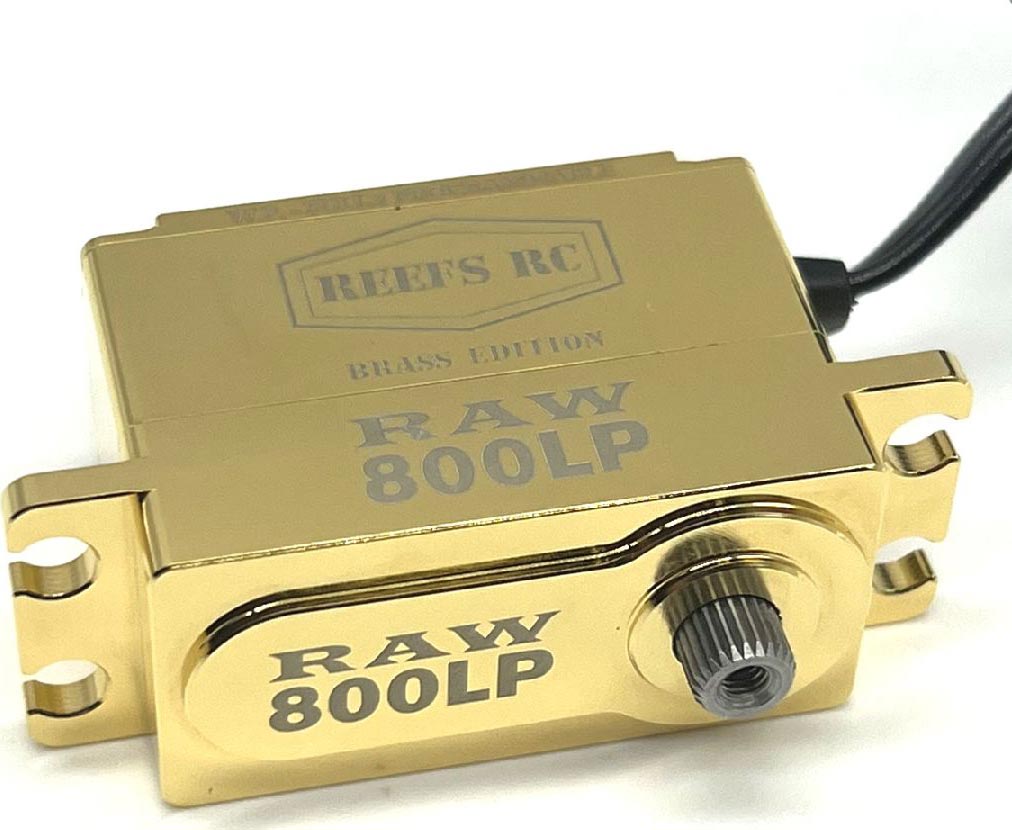

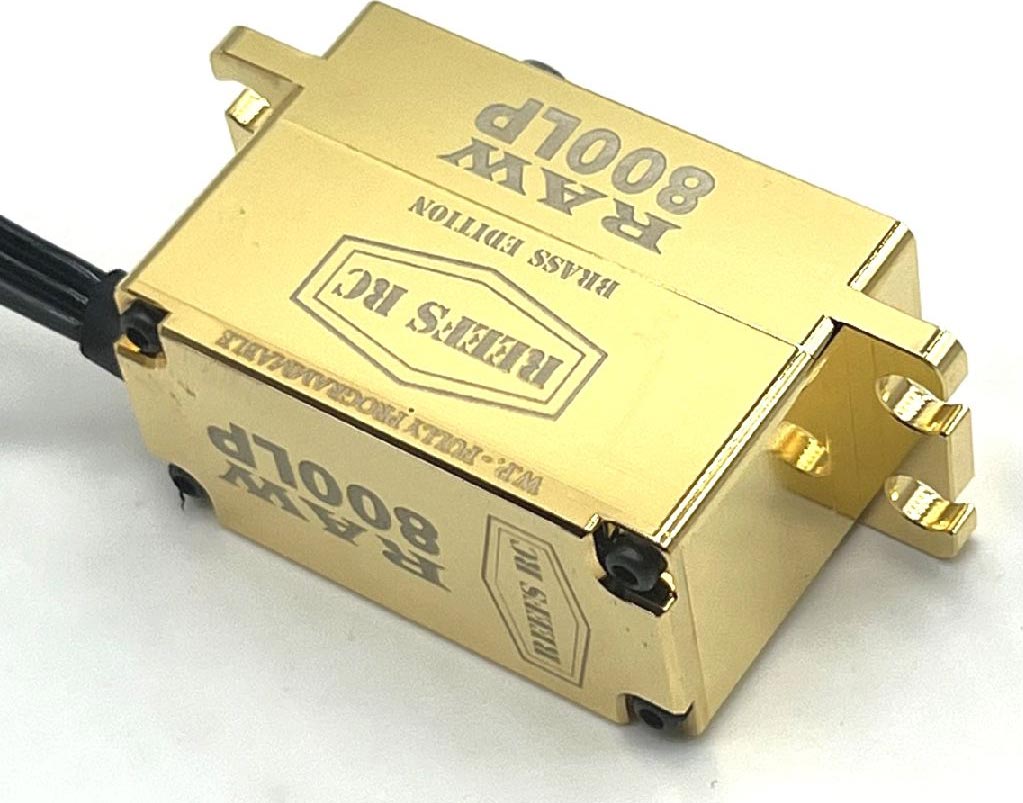

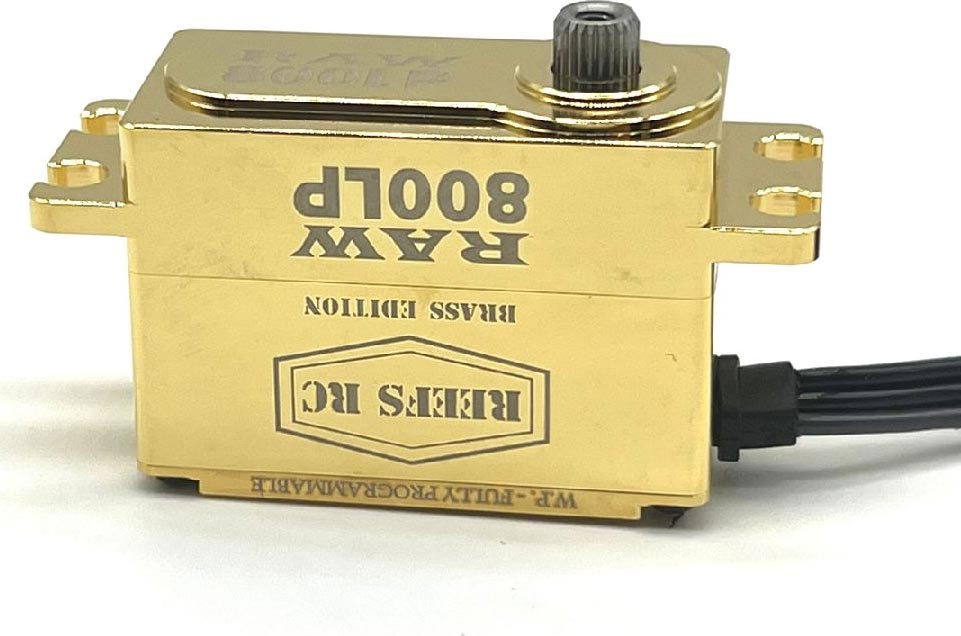

ADDITIONAL PHOTOS
|
|
|
|
|
|
