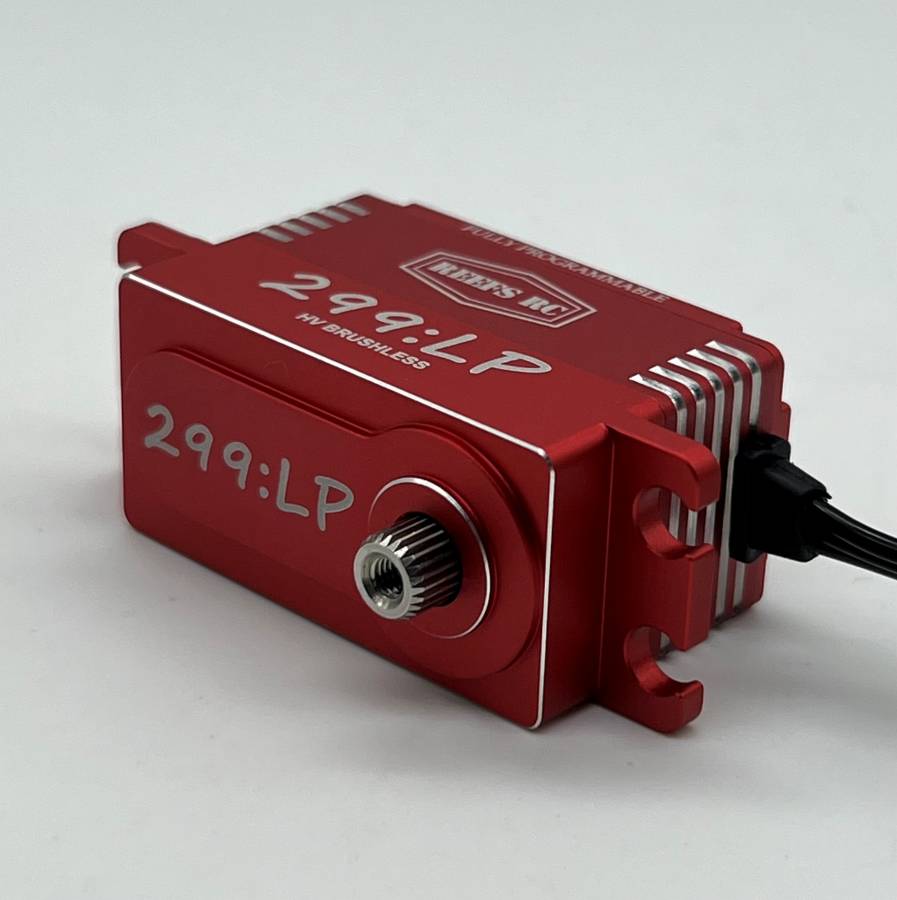

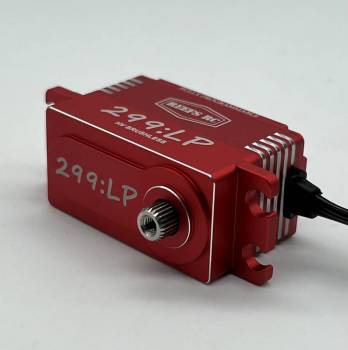

Servo 299LP SE Red High Speed/High Torque Low Profile BL
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.8 mm
Length:
20.2 mm
Width:
26.5 mm
Height:
57.2 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
4.8 - 8.4 v
Voltage Range:
20 kg-cm (278 oz-in)
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
21.5 kg-cm (299 oz-in)
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
22.5 kg-cm (313 oz-in)
Torque @ 8.4V:
0.057 sec/60°
Speed @ 8.4V:
FEATURES
- High Torque High Speed Brushless Motor
- Water Resistant
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
click image to enlarge

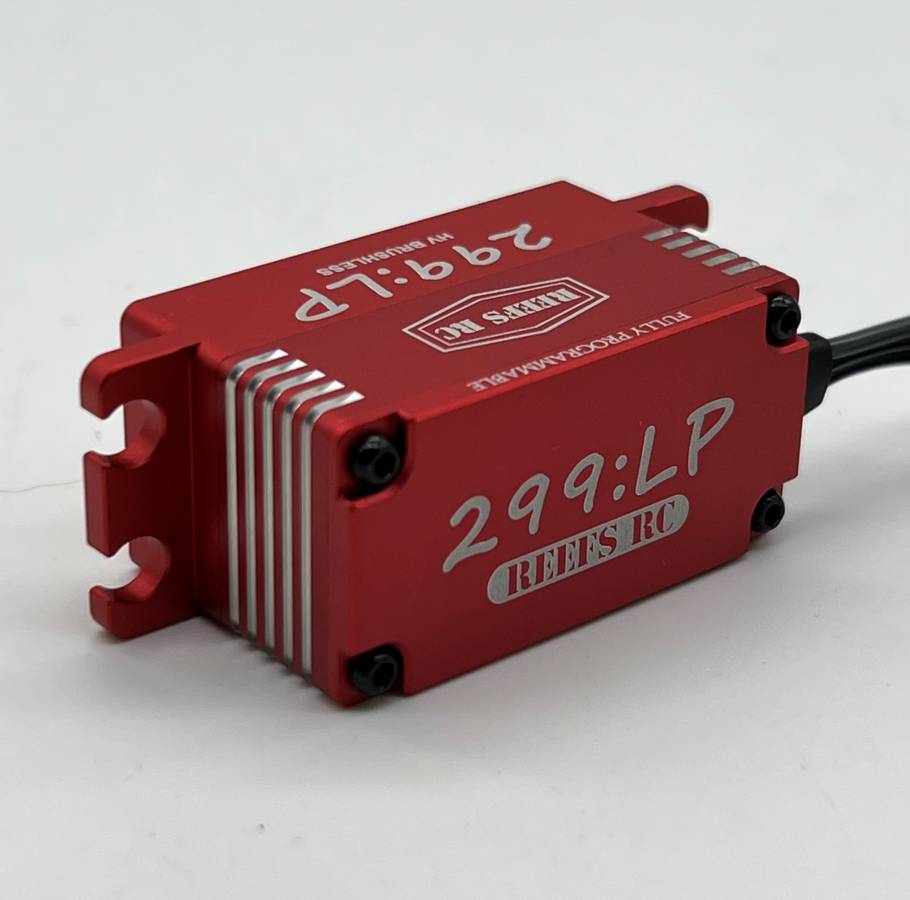

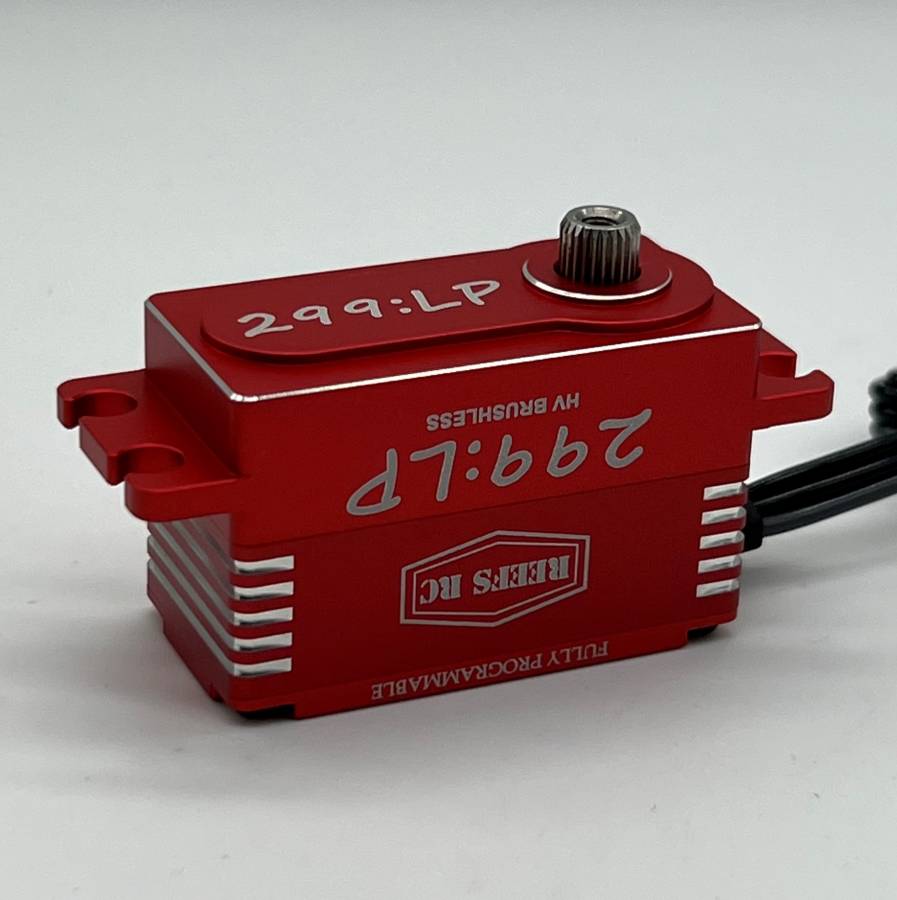

ADDITIONAL PHOTOS
|
|
