Servo/Winch Micro 179 Smart Brushless Programmable
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Winch
Application:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
23 mm
Length:
12 mm
Width:
27.5 mm
Height:
21 g
Weight:
Metal & Steel
Geartrain:
6 - 8.4 v
Voltage Range:
9.7 kg-cm (135 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
11.5 kg-cm (159 oz-in)
Torque @ 7.4V:
0.07 sec/60°
Speed @ 7.4V:
12.9 kg-cm (179 oz-in)
Torque @ 8.4V:
0.06 sec/60°
Speed @ 8.4V:

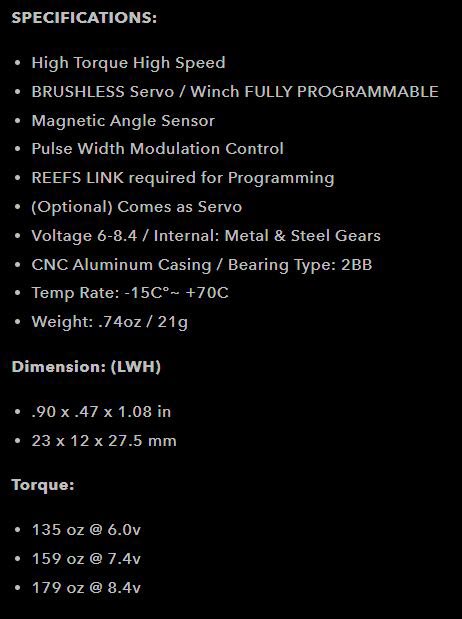

FEATURES
- High Torque High Speed
- BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.
