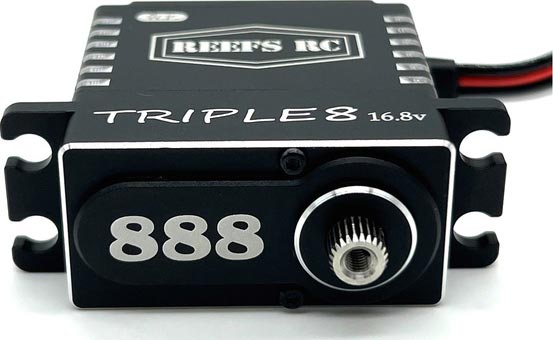

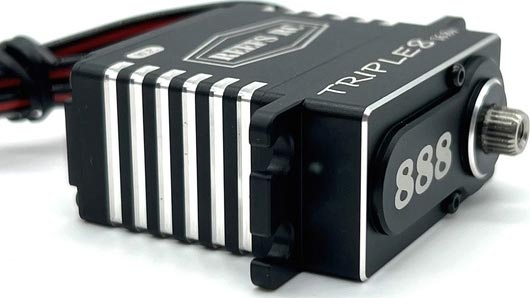

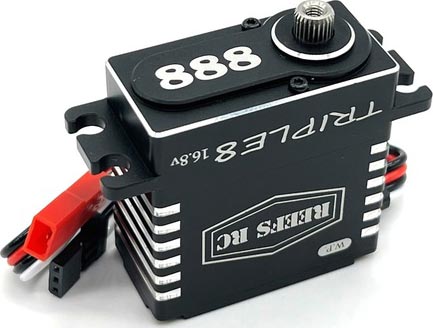

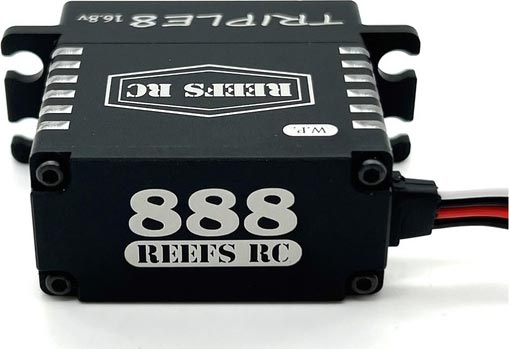

Servo Triple8 16.8V Programmable w/4S Connector
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

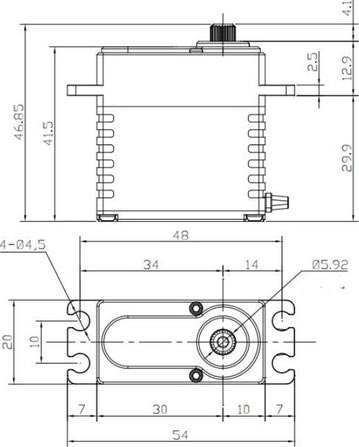

SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
41.5 mm
Height:
88.5 g
Weight:
Steel
Geartrain:
12 - 16.8 v
Voltage Range:
46 kg-cm (640 oz-in)
Torque @ 12V:
0.13 sec/60°
Speed @ 12V:
55.1 kg-cm (765 oz-in)
Torque @ 14.4V:
0.11 sec/60°
Speed @ 14.4V:
62 kg-cm (861 oz-in)
Torque @ 16.0V:
0.10 sec/60°
Speed @ 16.0V:
66 kg-cm (917 oz-in)
Torque @ 16.8V:
0.09 sec/60°
Speed @ 16.0V:
