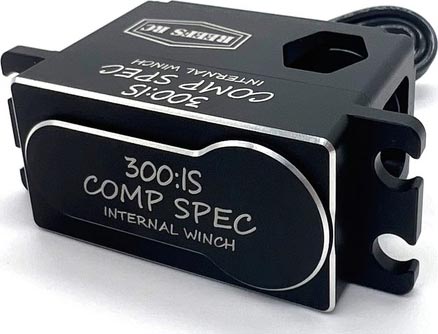

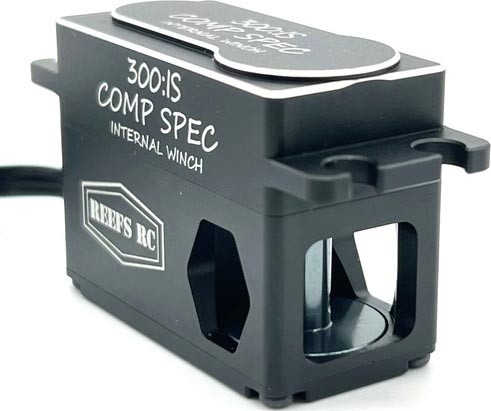

300 Comp Spec Internal Spool Winch
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS

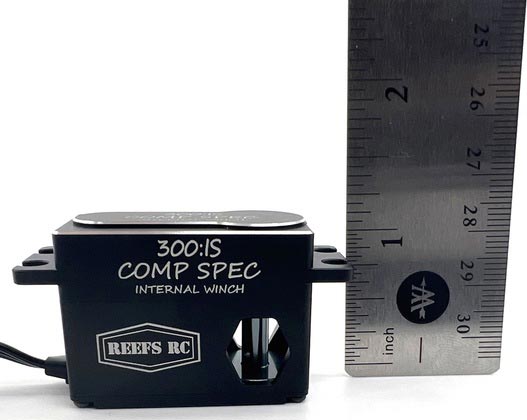

40.8 mm
Length:
20.2 mm
Width:
29.5 mm
Height:
65 g
Weight:
Steel
Geartrain:
4.8 - 8.4 v
Voltage Range:
13.8 kg-cm (191.6 oz-in)
Torque @ 6.0V:
0.05 sec/60°
Speed @ 6.0V:
18 kg-cm (250 oz-in)
Torque @ 7.4V:
0.04 sec/60°
Speed @ 7.4V:
21.6 kg-cm (300 oz-in)
Torque @ 8.4V:
0.03 sec/60°
Speed @ 8.4V:
FEATURES

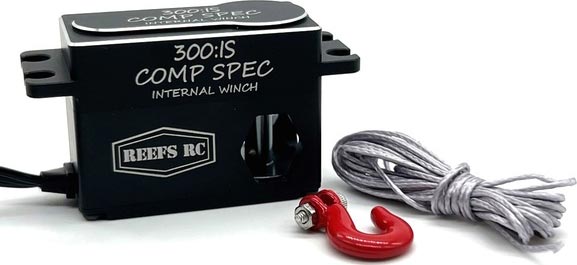

Approx 6ft .8mm Synthetic Line w/ Scale Recovery Hook
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
602024523451 0602024523451
SEHREEFS123
