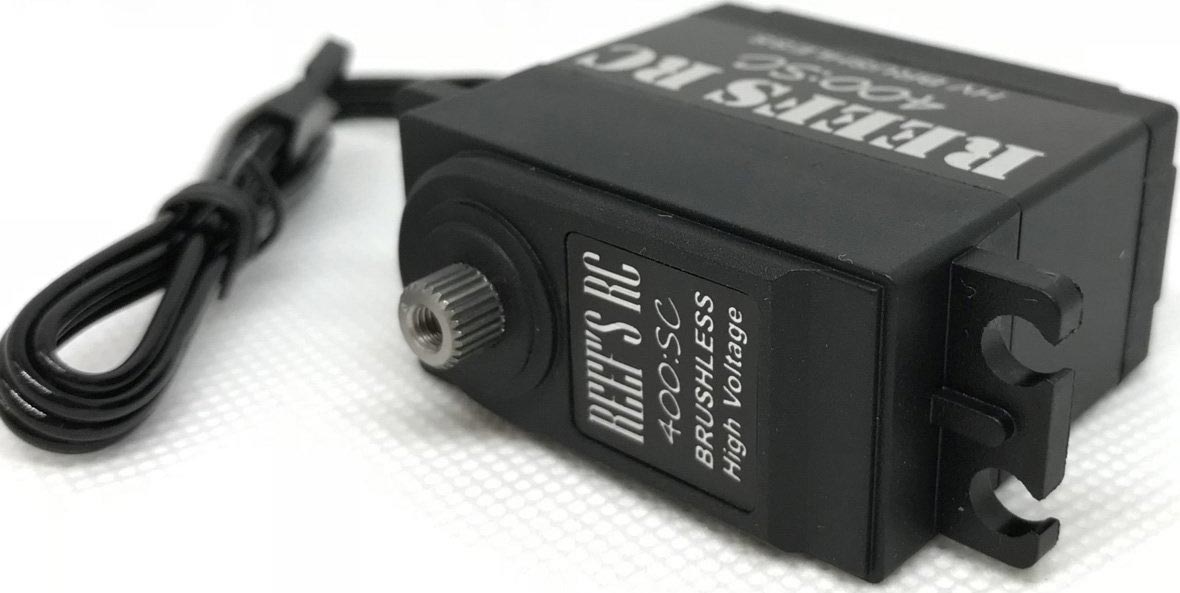

Servo 400SC HT HS Digital Brushless Servo 0.07/427 @ 8.4v
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
Titanium & Aluminum
Geartrain:
6.0 - 8.4 v
Voltage Range:
24.7 kg-cm (344 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
28.8 kg-cm (400 oz-in)
Torque @ 7.4V:
0.075 sec/60°
Speed @ 7.4V:
30.8 kg-cm (427 oz-in)
Torque @ 8.4V:
0.07 sec/60°
Speed @ 8.4V:
