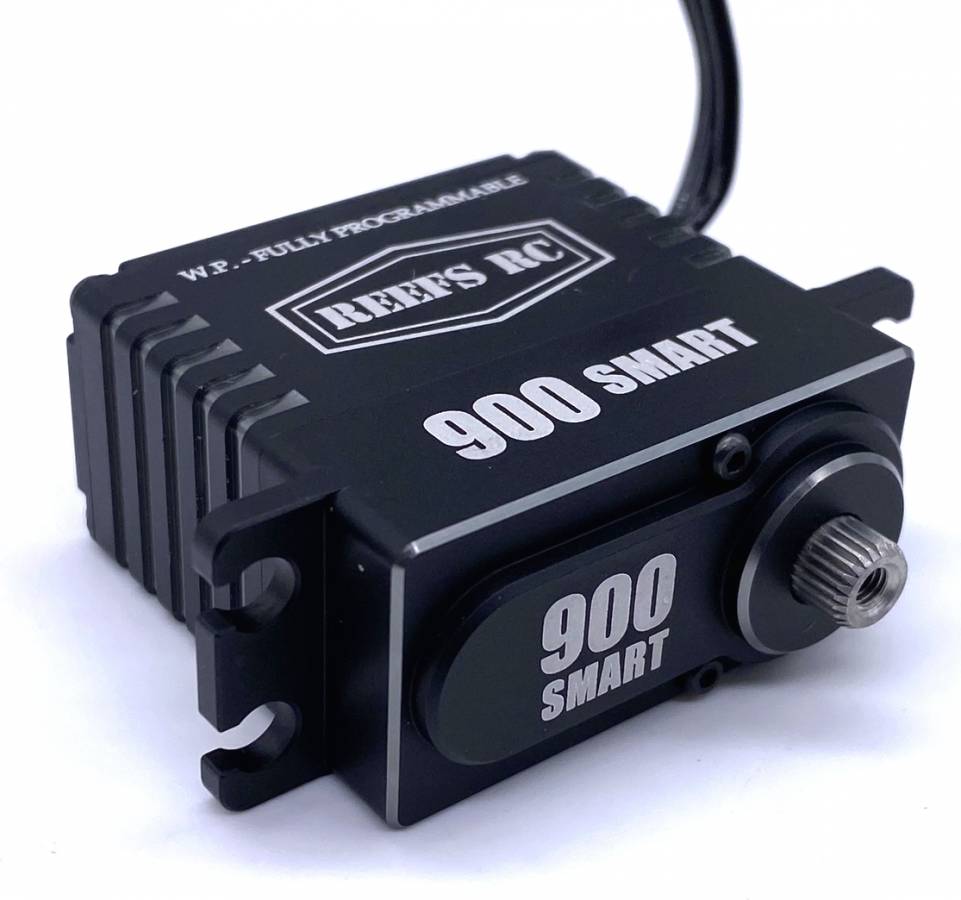

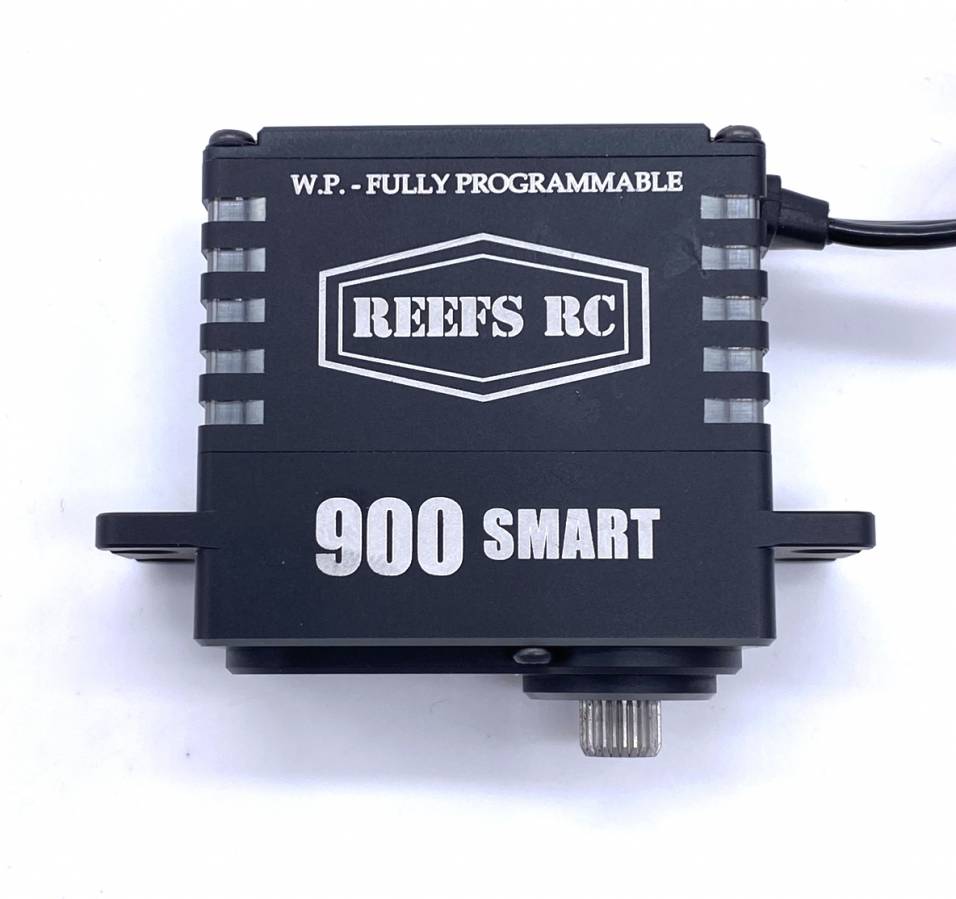

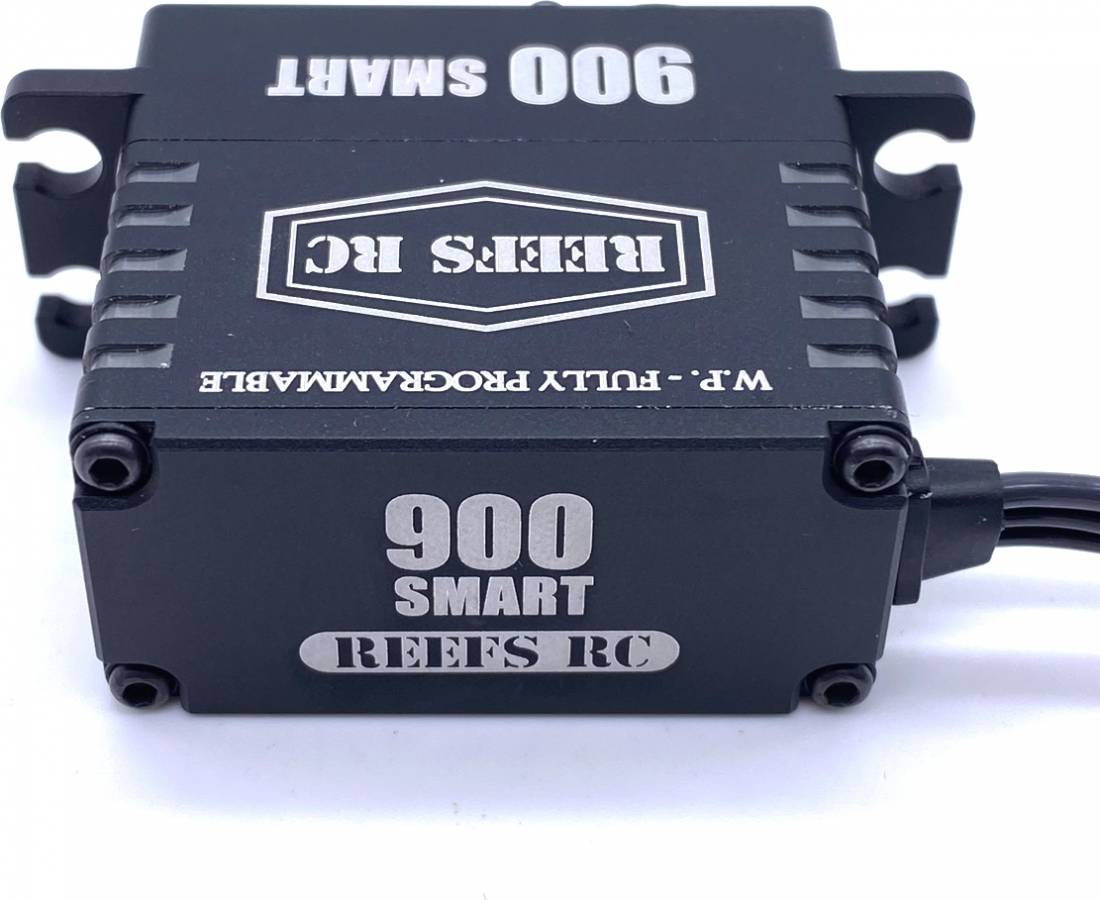

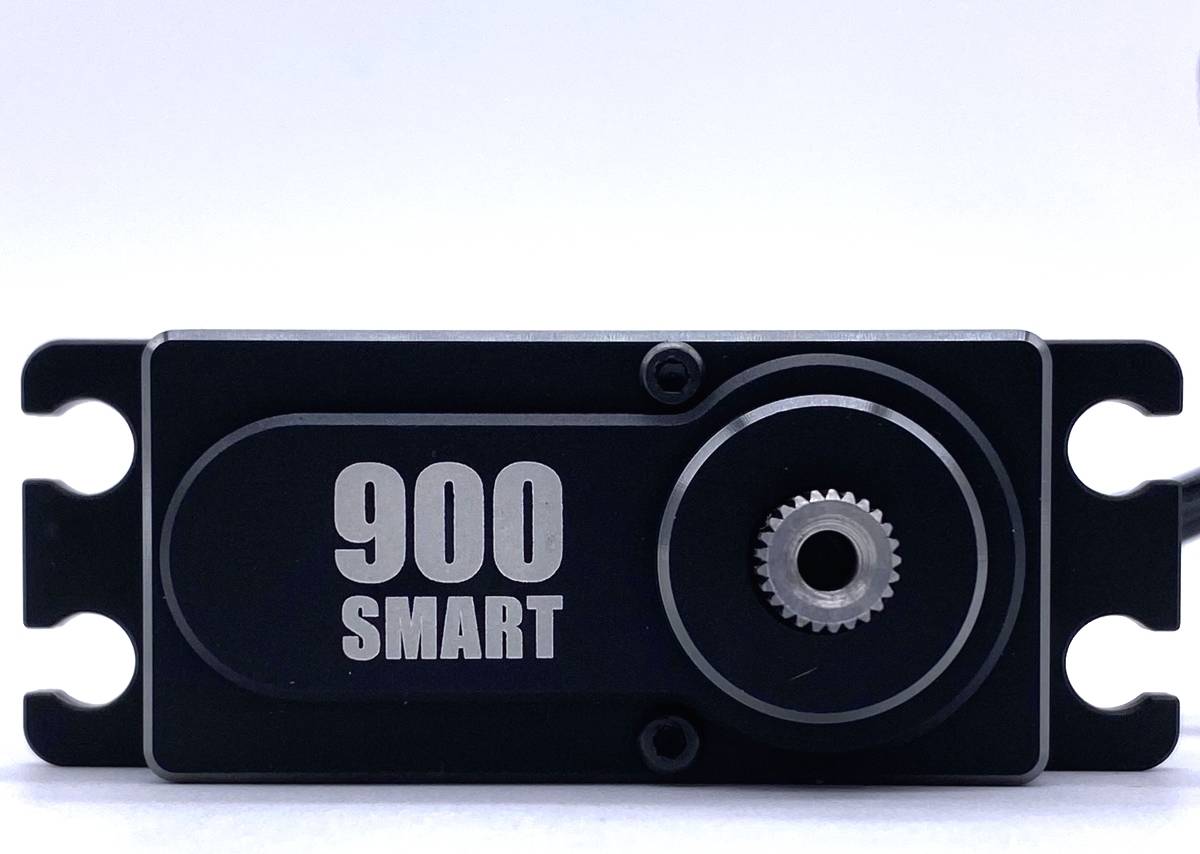

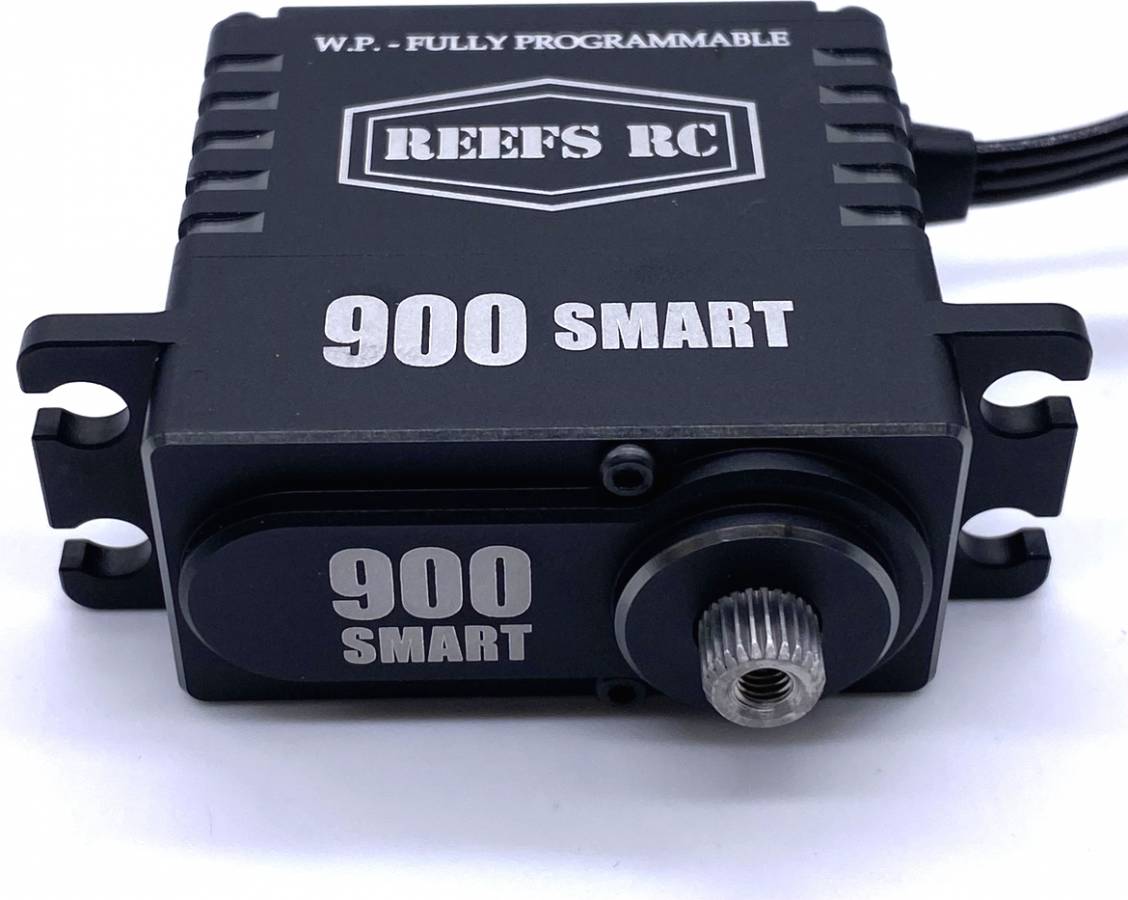

Servo/Winch BLK 900 Smart
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Four Bearings
Bearing/Bushing:
Ball
Bearing:
25 Tooth
Output Spline:

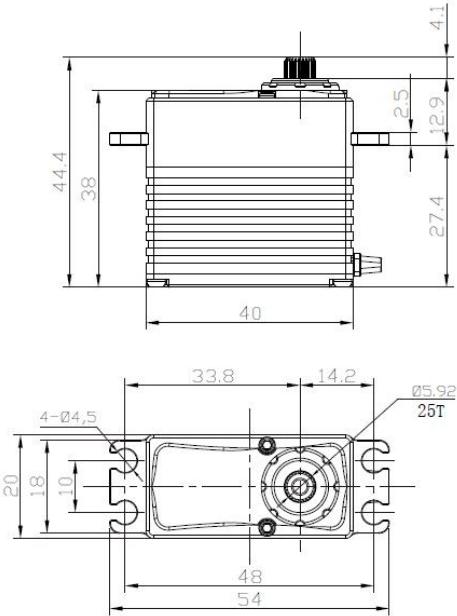

40 mm
Length:
20 mm
Width:
38 mm
Height:
Steel Gears
Geartrain:
4 Pole Brushless
Motor Type:
4.8 - 8.4 V
Voltage Range:
51.8 kg-cm (720 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
59.8 kg-cm (830 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
68 kg-cm (940 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
|
|
