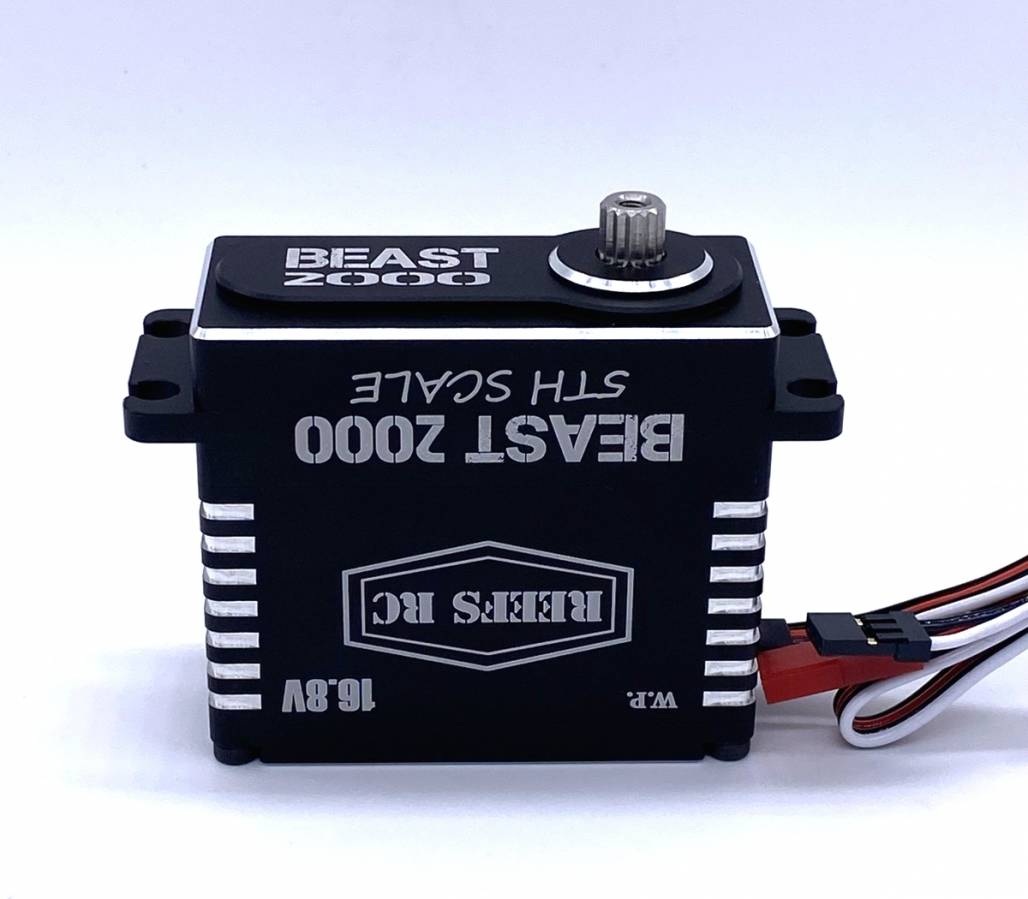

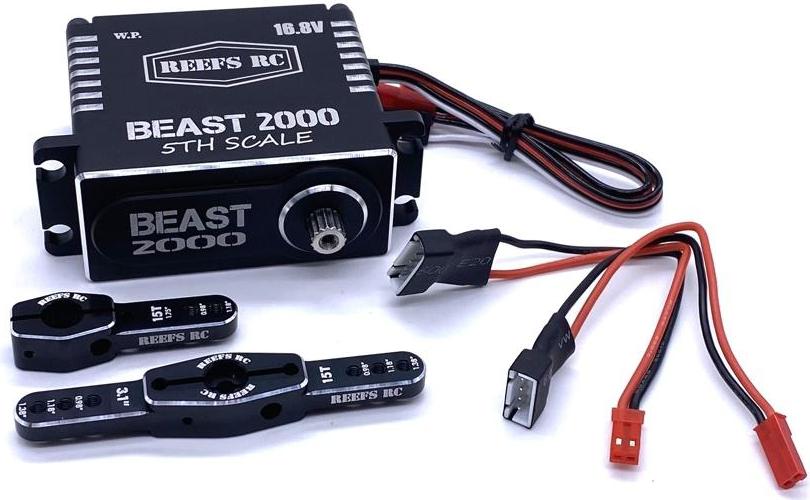

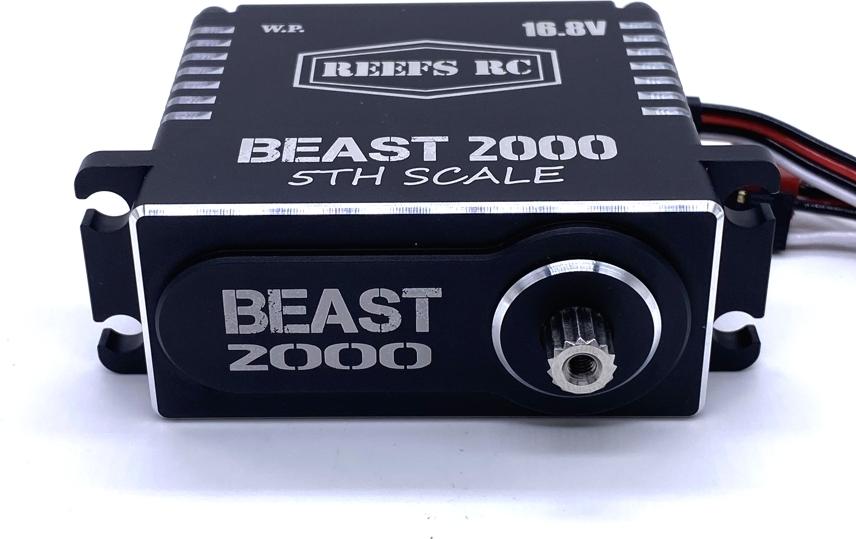

Beast 2000 1/5th Scale HT/HS Brushless Servo w/Alum Arms
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
15 Tooth
Output Spline:
66 mm
Length:
30 mm
Width:
59 mm
Height:
285 g
Weight:
Steel
Geartrain:
7.4 - 16.8 v
Voltage Range:
72 kg-cm (1000 oz-in)
Torque @ 10V:
0.12 sec/60°
Speed @ 10V:
90 kg-cm (1250 oz-in)
Torque @ 11.1V:
0.11 sec/60°
Speed @ 11.1V:
104.4 kg-cm (1450 oz-in)
Torque @ 12.0V:
0.10 sec/60°
Speed @ 12.0V:
144 kg-cm (2000 oz-in)
Torque @ 16.8V:
0.08 sec/60°
Speed @ 16.8V:
