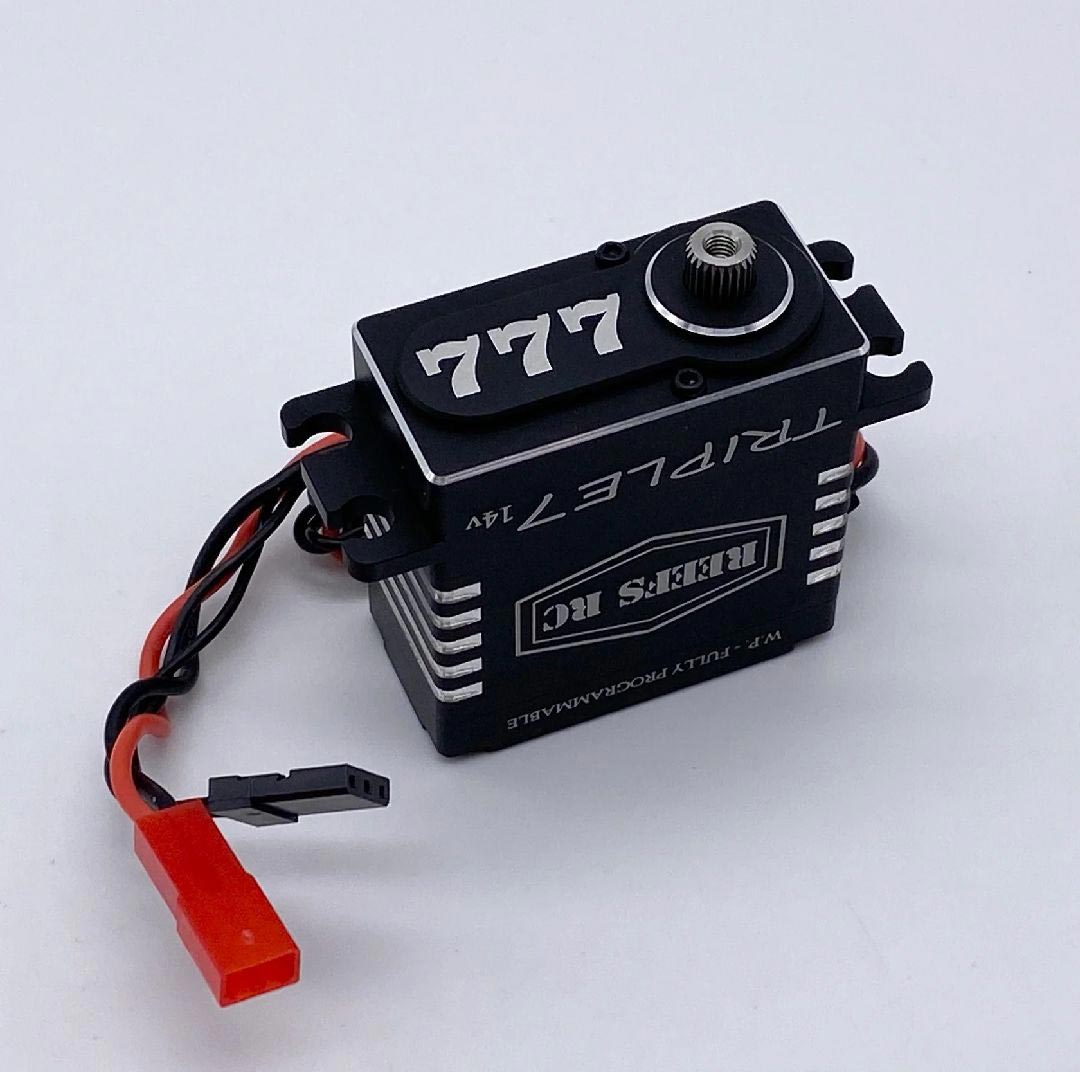

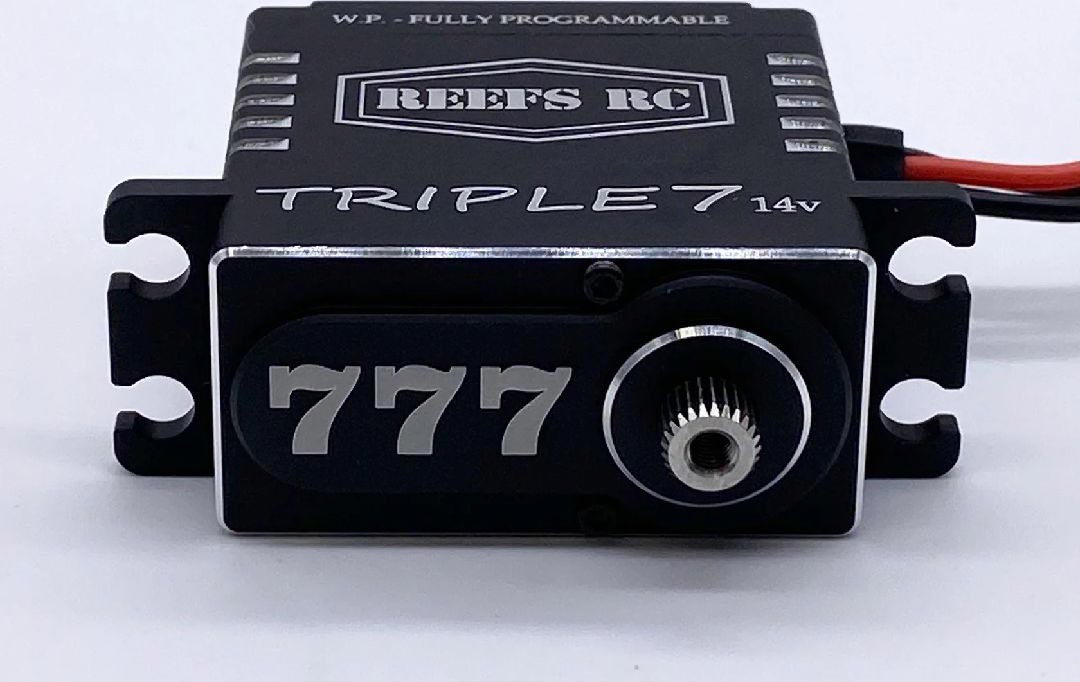

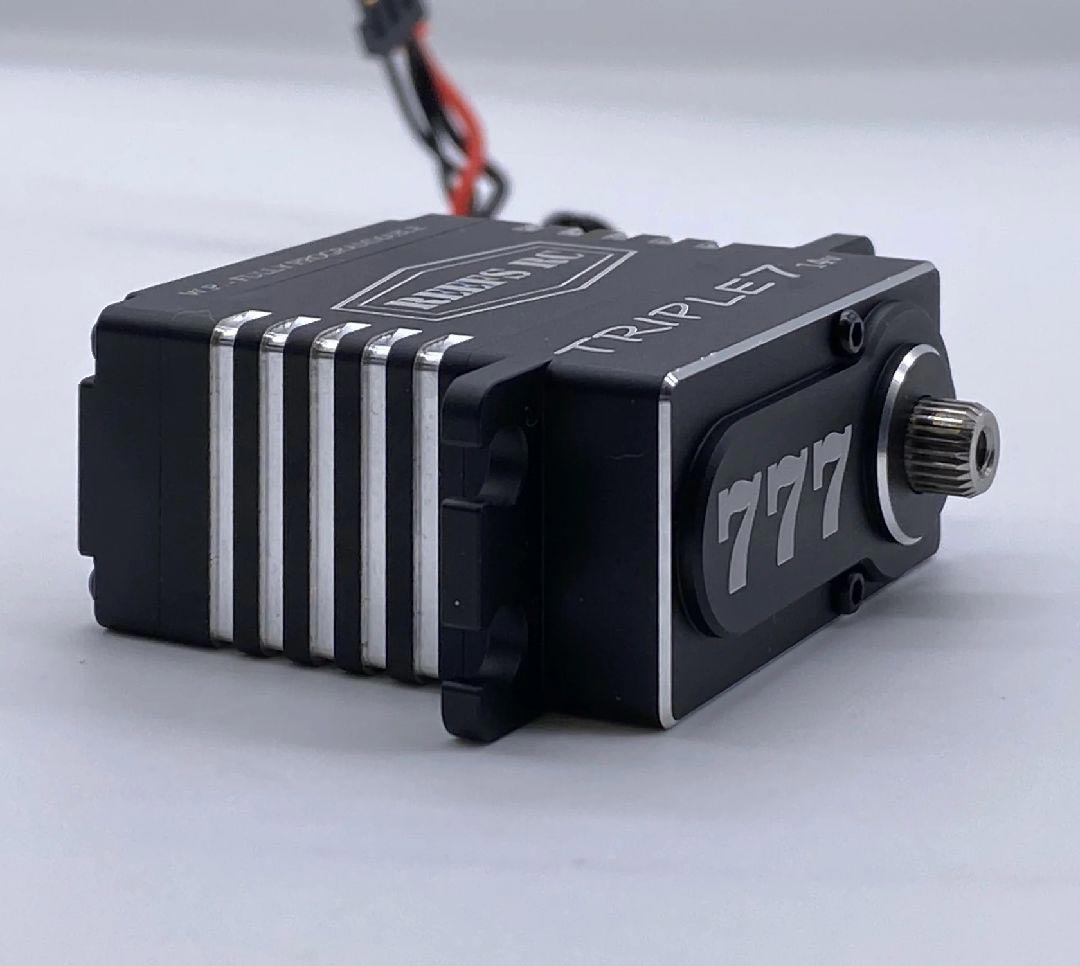

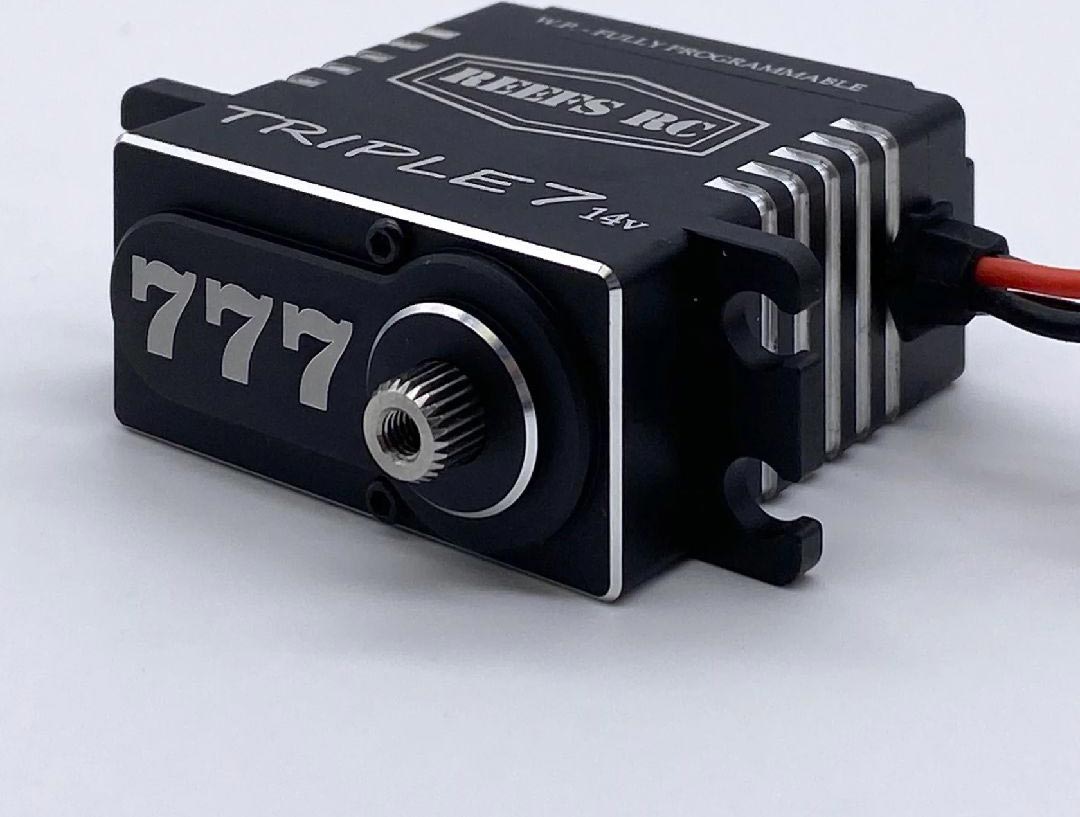

Servo Triple7 Direct Power Brushless Submarine Waterproof
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Three Ball Bearing
Bearing:
25 Tooth
Output Spline:
40 mm
Length:
19.8 mm
Width:
41.4 mm
Height:
88.5 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
10 - 14 v
Voltage Range:
48 kg-cm (666 oz-in)
Torque @ 11.1V:
0.10 sec/60°
Speed @ 11.1V:
50.4 kg-cm (700 oz-in)
Torque @ 12.0V:
0.09 sec/60°
Speed @ 12.0V:
56 kg-cm (777 oz-in)
Torque @ 14.0V:
0.08 sec/60°
Speed @ 14.0V:
FEATURES
- High Torque High Speed Brushless Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS LINK required)

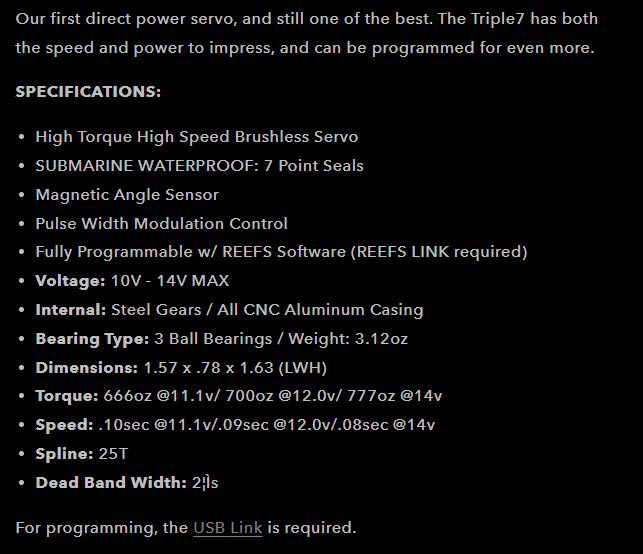

Our first direct power servo, and still one of the best. The Triple7 has both the speed and power to impress, and can be programmed for even more.
