Each kit contains all the required parts to make the motor, all you need to provide is the Wire and the Labor.
The HK series of Scorpion Motor kits are High Kv versions of the 22mm motors that are designed for use in Helicopters, Ducted Fans, Racing Models, and other applications requiring a High Kv motor. These motors are based on a 9 pole stator with 6 magnets in the flux ring, and are normally configured with a Kv in the 2500-3500 RPM/Volt range.
To complete the kit, the builder needs to:
- Wind and terminate the stator
- Glue the stator in place on the bearing holder
- Install the bearings into the bearing holder
- Install the completed rotor assembly onto the bearing assembly and secure the shaft with the retaining collar.
If you have ever wanted to try your hand at making your own motor, but were afraid it was too complex a project, the Scorpion Brushless Motor Kit provides a simple way for you to do that, with all the hard work already done.
Magnets are pre-assembled and balanced inside the rotor

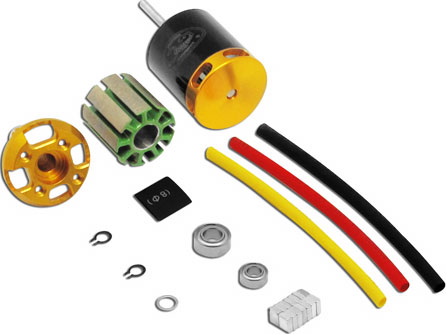

Each kit contains the following parts:
- Assembled 9-pole stator constructed from 0.20mm laminations with powder-coated inner surfaces to prevent winding shorts
- Gold Electro-coated Rear Housing/Bearing Tube assembly
- Two high-speed shielded ball bearings
- Rotor assembly with gold electro-coated front housing, black electro-coated flux ring, and pre-installed 3mm motor shaft with C-Clip and washer
- Cross style aluminum backplate mount with mounting screws
- Complete set of curved NdFeB motor magnets
- Heat shrink tubing to cover motor leads and provide strain relief
Included in the Box:
- Front Housing with Black Rotor x1
- End Bell x 1
- Stator x 1
- Motor Shaft x 1
- Motor Bearings x 2
- Magnets x 6
- Magnet Holding Ring x 1
- Heat Shrink x 4
- C-Clip x 2
- Washer x 1
- Set Screws x 2
