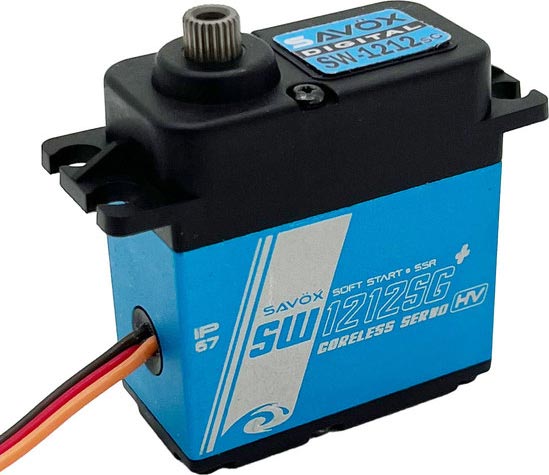

Tall Waterproof Coreless Digital .14/638oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

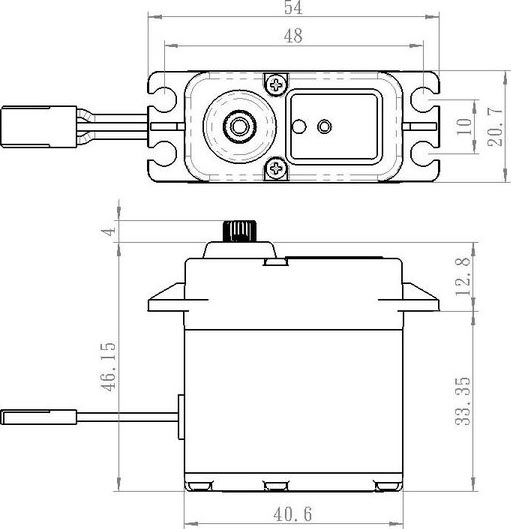

SPECIFICATIONS
Standard Tall
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.6 mm
Length:
20.7 mm
Width:
46.1 mm
Height:
83 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
6 - 7.4 v
Voltage Range:
36 kg-cm (500 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
46 kg-cm (638 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
FEATURES
- Center aluminum with nylon composite top and bottom case
- Operates directly on 7.4v without the need for an eternal BEC
- Precision ball bearings
This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep). "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
click image to enlarge

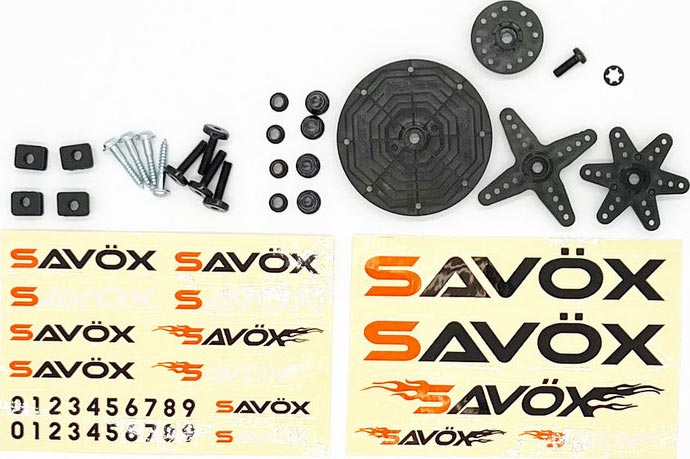

ADDITIONAL PHOTOS
|
|
4710006994383 4710006994383
SAVSW1212SGP
