Waterproof Digital Micro 1/16 TRX .11/69oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Digital
Type:
Ball Bearing
Bearing:
25 Tooth
Output Spline:

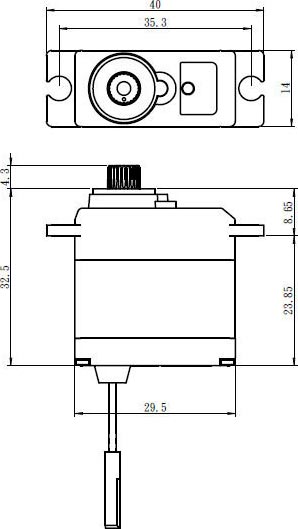

29.5 mm
Length:
14 mm
Width:
32.5 mm
Height:
25 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
4.8 - 6 v
Voltage Range:
3.5 kg-cm (48.6 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
5 kg-cm (69.44 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
FEATURES
- Strong metal gear train for added durability.
- Waterproof case design.
- Ideal for cars and boats subject to water or snow.
- Ideal for Traxxas 1/16 vehicles.

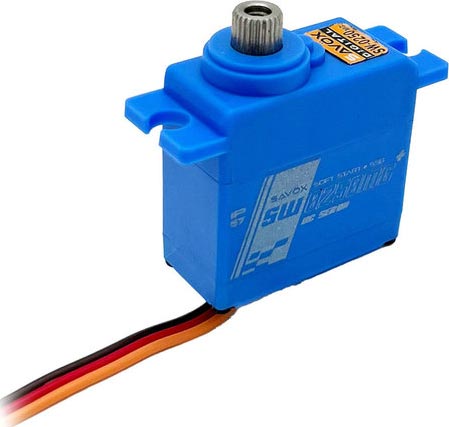

The SW-0250MG is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles. "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
click image to enlarge

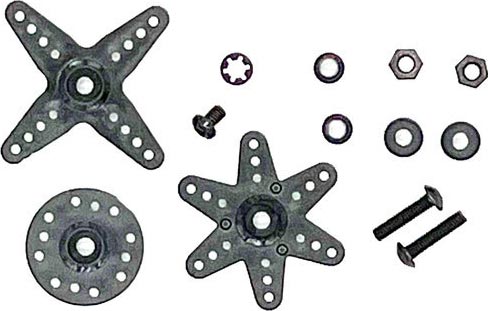

ADDITIONAL PHOTOS
|
|
