Servo - High Voltage Digital Ultra Speed Steel
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

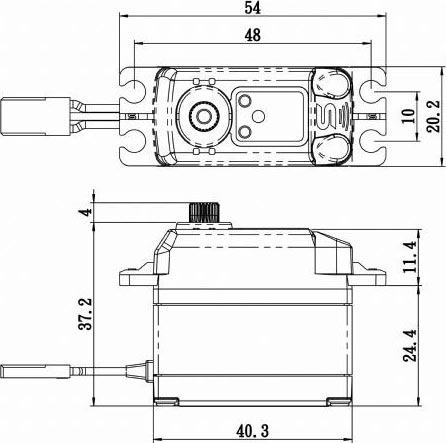

40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
63 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
7.4 - 8.4 v
Voltage Range:
25 kg-cm (347.18 oz-in)
Torque @ 7.4V:
0.08 sec/60°
Speed @ 7.4V:
35 kg-cm (486.1 oz-in)
Torque @ 8.4V:
0.07 sec/60°
Speed @ 8.4V:
FEATURES
- Super strong and precision made unique steel gears provide durability and survive heavy use.
- Capable of HV operation.
- Fast and high torque for numerous applications.
- Ideal for large scale aircraft, 1/8 off road, and other off road vehicles.
- Soft Start and Sanwa SSR Compatibility

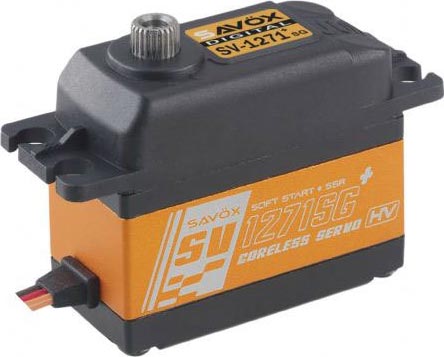

The Savox SV-1271SG High Torque, High Voltage Digital Servo is one of the best overall servos you can find. Fast and high torque, the SV1271SG servo is applicable for numerous tasks.
